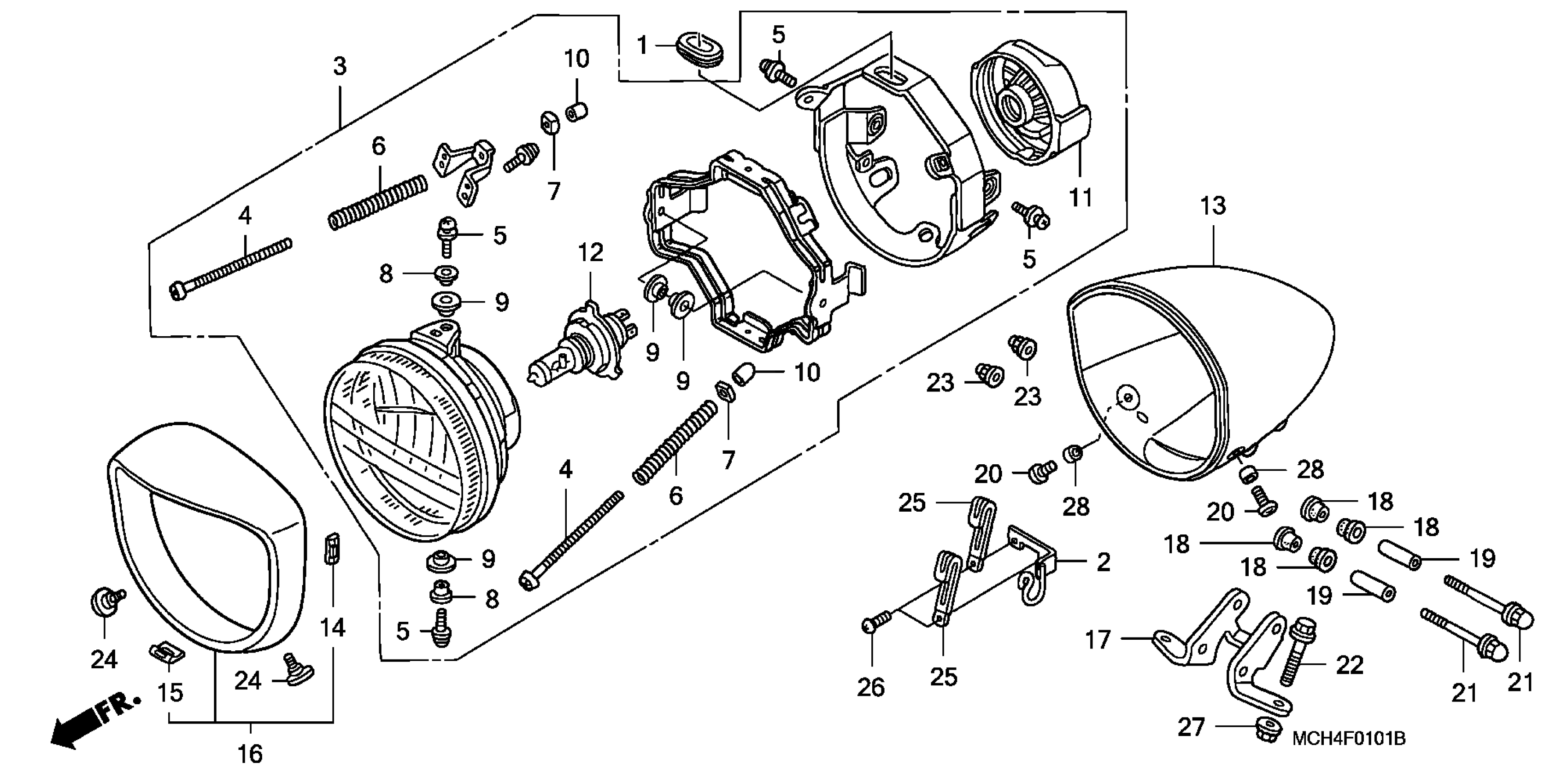

Honda VTX1800F1A (08) MOTORCYCLE, USA, VIN# 1HFSC46B-8A600001 HEADLIGHT (VTX1800F) Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-240-000

$2.80

2

CLAMP, HARNESS

32111-MCH-F10

$3.29

3

HEADLIGHT ASSY.

33100-MCH-F11

Unavailable

4

SCREW, BEAM ADJUSTING

33103-MM2-003

$2.53

5

SCREW-WASHER

33104-MAH-671

$3.83

6

SPRING, BEAM ADJUSTING

33107-MK7-671

$3.87

7

NUT, BEAM ADJUSTING

33118-438-841

$2.06

8

SPACER

33127-MAA-A31

$2.14

9

NUT, UNIT HOLDER

33128-MAA-A31

$2.07

10

COVER, SCREW

33136-426-830

$1.74

11

COVER, RUBBER

33180-MR7-003

$13.07

12

BULB, HEADLIGHT (12V 60/55W) (STANLEY)

34901-MC7-602

$34.13

13

CASE ASSY., HEADLIGHT

61301-MCH-F10

Unavailable

14

RUBBER A, HEADLIGHT RIM

61303-MCH-F10

$4.50

15

RUBBER B, HEADLIGHT RIM

61304-MCH-F10

$6.06

16

RIM ASSY., HEADLIGHT

61305-MCH-F10

$85.78

17

STAY, HEADLIGHT

61311-MCH-F10

Unavailable

18

RUBBER, HEADLIGHT MOUNTING

61315-MK7-000

$2.83

19

COLLAR, HEADLIGHT STAY

61316-MCH-F10

$2.15

20

SCREW, SPECIAL (5X12)

90001-MG9-670

$4.71

21

BOLT, CAP (6MM)

90132-MCH-F10

$3.24

22

BOLT, SPECIAL FLANGE (8X26)

90183-438-000

$4.65

23

NUT, CAP (6MM)

90201-425-700

$4.04

24

SCREW, SPECIAL (5X9.5)

90380-GE2-760

$2.38

25

CLIP

91411-679-000

$14.97

26

SCREW, PAN (5X10)

93500-05010-0A

Unavailable

27

NUT, FLANGE (8MM)

94050-08000

$0.87

28

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.31
