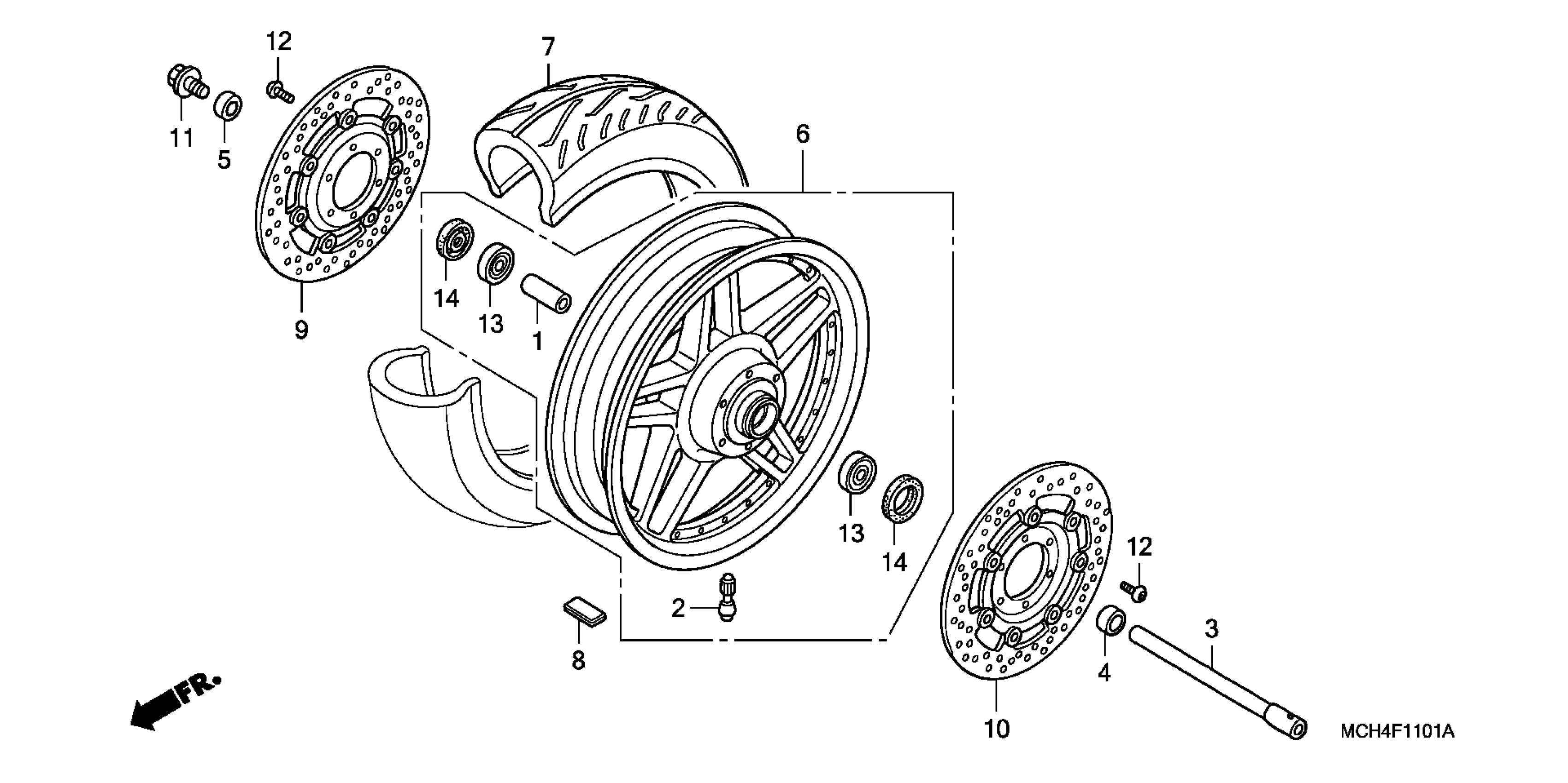

Honda VTX1800F1A (08) MOTORCYCLE, USA, VIN# 1HFSC46B-8A600001 FRONT WHEEL (VTX1800F) Diagram

COLLAR, RR. AXLE DISTANCE

42620-MW0-010

$34.02

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

AXLE, FR. WHEEL

44301-MCH-A00

$77.11

COLLAR, L. FR. WHEEL SIDE

44311-MCH-A00

$13.04

COLLAR, R. FR. WHEEL SIDE

44312-MCH-A00

Unavailable

WHEEL SUB-ASSY., FR.

44650-MCH-F10

Unavailable

TIRE, FR. (130/70R18) (M/C 63H) (DUNLOP) This part replaces 44711-MCH-F12.

44711-MCH-024

Unavailable

WEIGHT, BALANCE (10G) (TOHO ZINK)

44721-SEA-N02

$4.23

WEIGHT, BALANCE (20G) (TOHO ZINK)

44722-SEA-N02

$4.94

WEIGHT, BALANCE (30G) (TOHO ZINK)

44723-SEA-N02

$5.72

WEIGHT, BALANCE (40G) (TOHO ZINK)

44724-SEA-N02

$6.36

WEIGHT, BALANCE (5G) (TOHO ZINK)

44726-SEA-N02

$4.56

WEIGHT, BALANCE (15G) (TOHO ZINK)

44727-SEA-N02

$3.91

WEIGHT, BALANCE (25G) (TOHO ZINK)

44728-SEA-N02

$5.34

WEIGHT, BALANCE (35G) (TOHO ZINK)

44729-SEA-N02

$6.14

DISK, R. FR. BRAKE

45120-MCH-003

$179.49

DISK, L. FR. BRAKE

45220-MCH-003

$169.21

BOLT, FR. AXLE

90105-MBT-610

$5.76

BOLT, DISK (6X17)

90106-MBB-000

$3.65

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$32.14

DUST SEAL (30X52X7)

91253-442-003

$13.96
