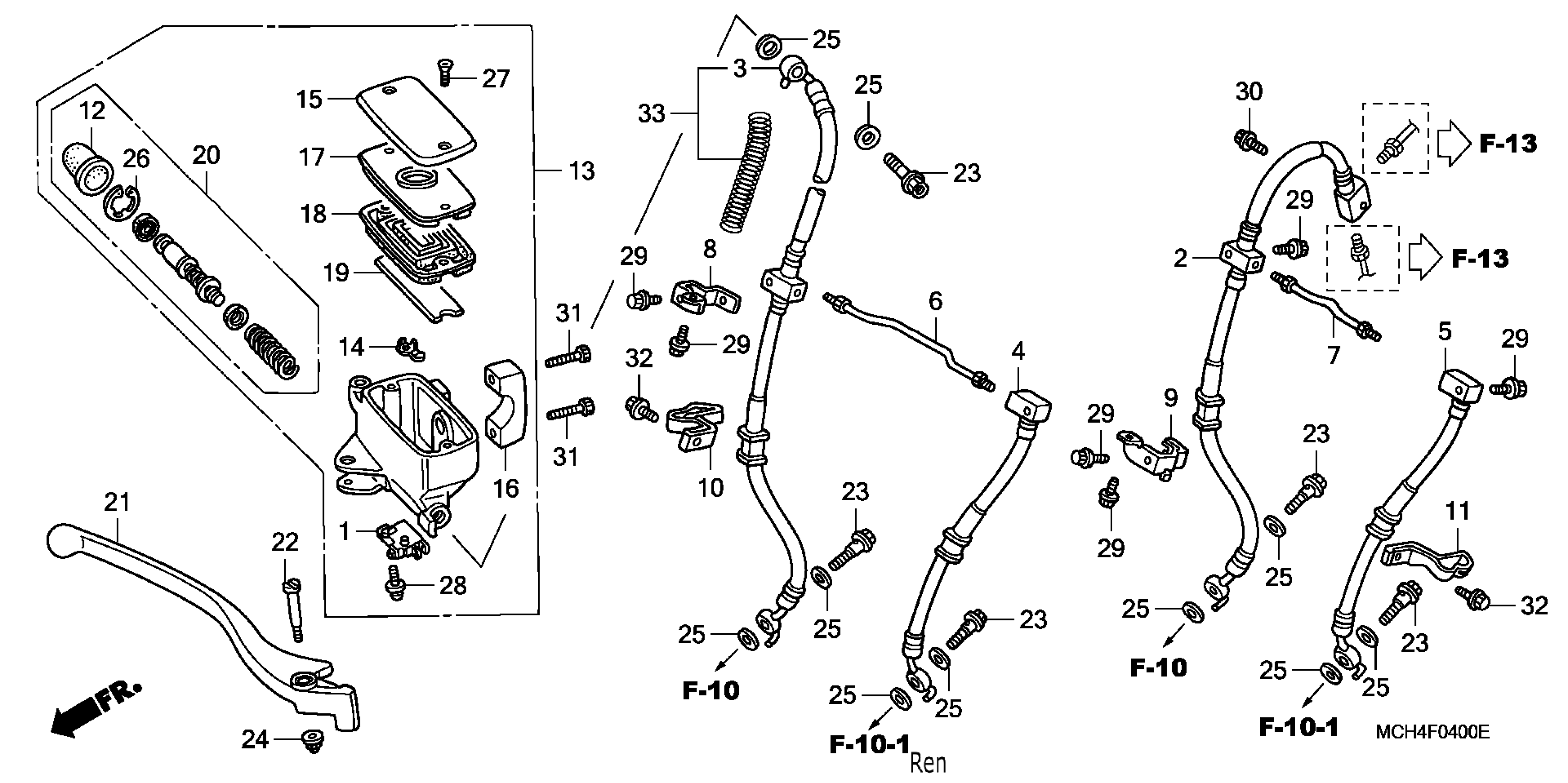

Honda VTX1800F1A (08) MOTORCYCLE, USA, VIN# 1HFSC46B-8A600001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

2

SUB-HOSE, R. FR. BRAKE

45124-MCH-A11

Unavailable

4

HOSE, L. FR. BRAKE MAIN

45126-MCH-A11

Unavailable

5

SUB-HOSE, L. FR. BRAKE

45127-MCH-A11

$31.69

6

PIPE A, FR. BRAKE

45135-MCH-000

Unavailable

7

PIPE B, FR. BRAKE

45136-MCH-000

Unavailable

8

STAY, R. FR. BRAKE HOSE

45155-MCH-A00

Unavailable

9

STAY, L. FR. BRAKE HOSE

45156-MCH-A00

Unavailable

10

CLAMP B, R. FR. BRAKE HOSE

45157-MCH-000

Unavailable

11

CLAMP B, L. FR. BRAKE HOSE

45158-MCH-000

Unavailable

12

BOOT

45504-410-003

$12.16

13

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MCH-C11

$132.00

14

PROTECTOR

45512-MA6-006

$4.28

15

CAP, MASTER CYLINDER (NISSIN)

45513-MR1-016

$30.62

16

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$27.25

17

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

18

DIAPHRAGM

45520-MM5-006

$15.12

19

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.49

20

MASTER CYLINDER SET

45530-MA4-671

$47.76

21

LEVER, R. HANDLE (COO) This part replaces 53175-MCH-701.

53175-MJR-305

$28.52

22

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

23

BOLT, OIL (10X22)

90145-MS9-612

$7.54

24

NUT, CAP (6MM)

90201-415-000

$2.05

25

WASHER, OIL BOLT

90545-300-000

$3.99

26

CIRCLIP

90651-MA5-671

$2.66

27

SCREW, FLAT (4X12)

90158-MT7-000

$2.15

28

SCREW-WASHER (4X12)

93893-04012-07

$1.49

28

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

29

BOLT, FLANGE (6X12)

90123-MCH-A00

$1.49

30

BOLT, FLANGE (6X25)

90124-MCH-A00

$1.49

31

BOLT, SOCKET (6X22)

90101-MCL-000

$1.49

32

BOLT, FLANGE (6X12)

90125-MCH-A00

$2.11

33

HOSE, R. FR. BRAKE MAIN

45125-MCH-A11

Unavailable
