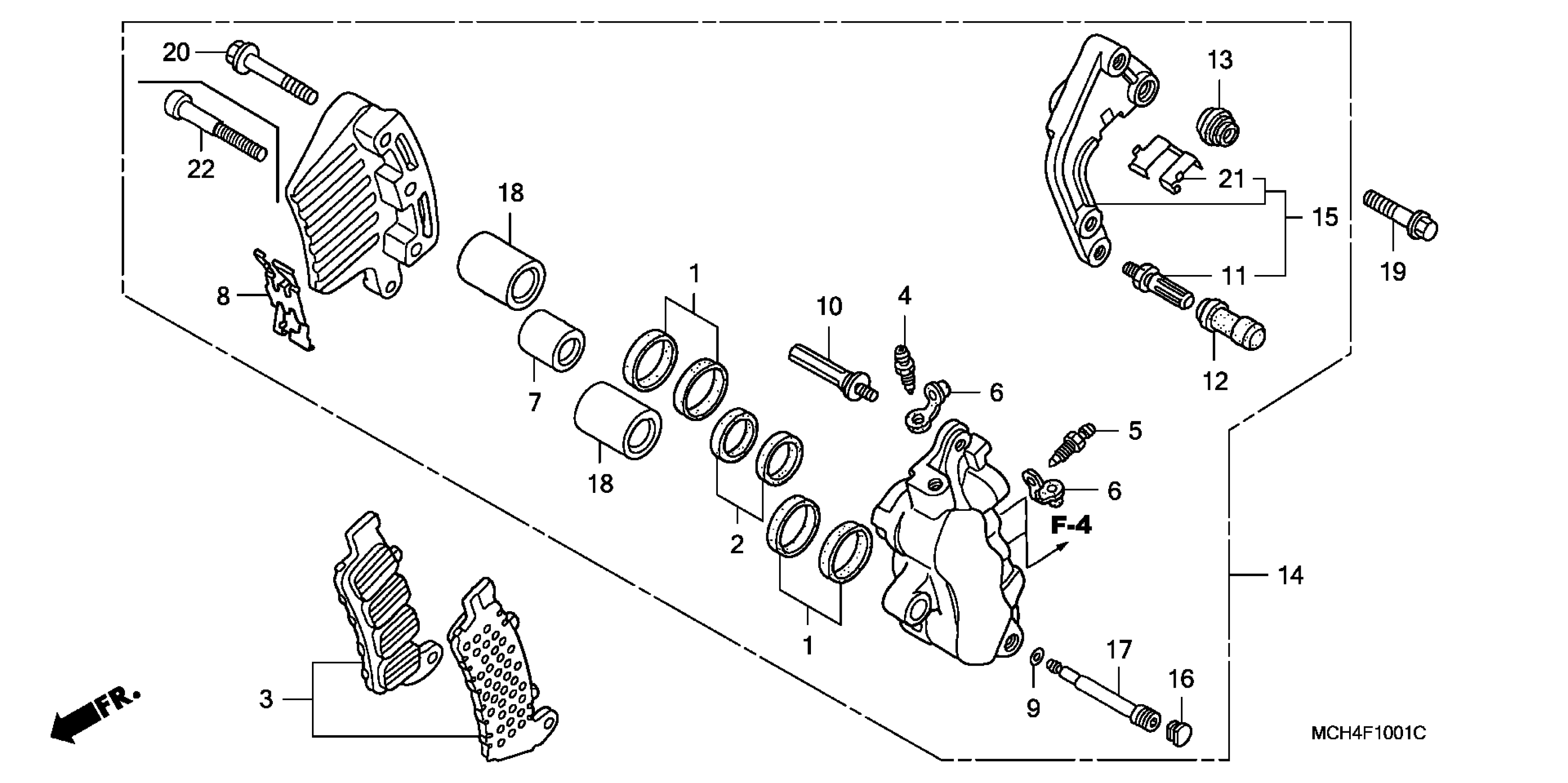

Honda VTX1800F1A (08) MOTORCYCLE, USA, VIN# 1HFSC46B-8A600001 FRONT BRAKE CALIPER (L.) Diagram

Description

Price

SEAL SET, PISTON

06451-GE2-405

$11.41

SEAL SET, PISTON

06451-MZ2-405

$12.55

PAD SET, FR.

06455-MAT-E22

$57.72

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.22

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON A (22X27)

45107-MAJ-G41

$39.18

SPRING, PAD

45108-MZ2-016

$8.55

RING, STOPPER

45111-MAJ-G41

$3.80

BOLT A, PIN

45131-ML7-921

$15.44

BOLT, PIN

45131-166-016

$7.63

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-MCH-A11

Unavailable

BRACKET SUB-ASSY., L. FR. CALIPER

45190-KFG-641

Unavailable

PLUG, PIN

45203-MCC-006

$2.89

PIN, HANGER

45215-MAJ-G41

$6.45

PISTON B (25X35)

45217-MAJ-G41

$36.94

BOLT, SPECIAL FLANGE (8X32)

90101-MZ8-000

$6.75

BOLT, FLANGE (8X45)

90135-MAJ-G41

$6.46

RETAINER, BRACKET

45112-MZ2-006

$8.85
