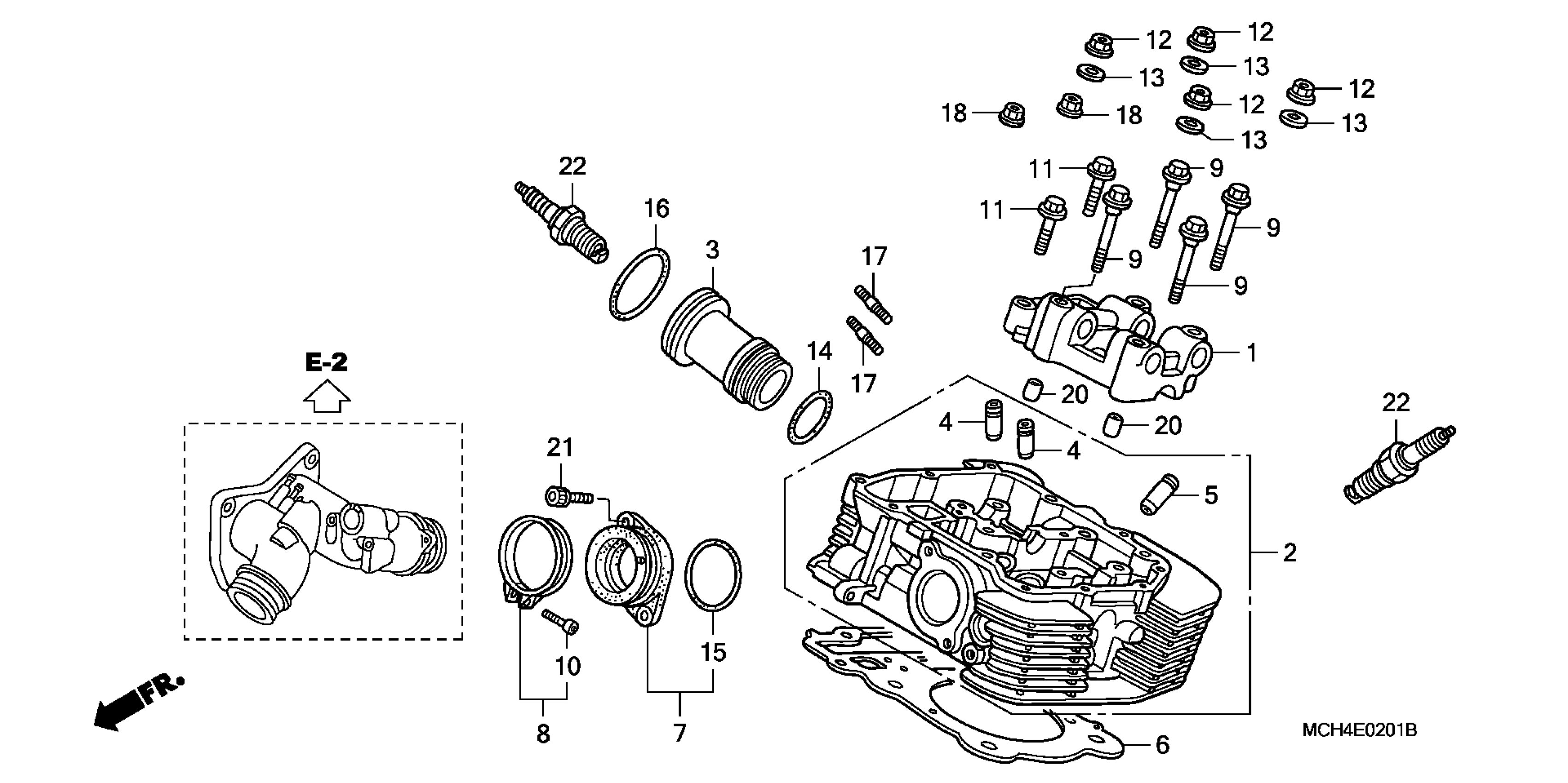

Honda VTX1800F1A (08) MOTORCYCLE, USA, VIN# 1HFSC46B-8A600001 CYLINDER HEAD (RR.) Diagram

#

Description
Price

1

HOLDER, CAMSHAFT

12215-MCH-000

$80.61

2

CYLINDER HEAD, RR.

12220-MCH-700

$1,111.59

3

SLEEVE, PLUG

12224-MCH-000

Unavailable

4

GUIDE, IN. VALVE (OVER SIZE)

12231-MCH-305

$23.38

5

GUIDE, EX. VALVE (OVER SIZE)

12233-MCH-305

Unavailable

6

GASKET, CYLINDER HEAD

12251-MCH-003

$39.02

7

INSULATOR, THROTTLE BODY

16210-MCH-000

$43.72

8

BAND, INSULATOR

16218-MCH-000

Unavailable

9

BOLT, UBS (8X65)

90029-MS9-750

$5.94

10

BOLT, SOCKET (4X25)

90035-MCH-000

Unavailable

11

BOLT, FLANGE (8X40)

90118-VM6-000

$4.85

12

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.59

12

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.59

12

NUT, FLANGE (10MM)

94050-10000

$1.59

13

WASHER (10MM)

90410-HC4-000

$3.81

14

O-RING (25.5X2.5) (ARAI)

91301-KR3-003

$4.21

15

O-RING (48.5X2.5)

91301-MCH-003

$5.60

16

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.99

17

BOLT, STUD (8X25)

92900-08025-0E

$1.92

18

NUT, FLANGE (8MM)

94050-08000

$1.49

20

PIN, DOWEL (10X16)

94301-10160

$2.28

21

BOLT, SOCKET (6X16)

96600-06016-00

$1.66

22

SPARK PLUG (VK16PRZ11) (DENSO)

98079-5515U

$29.67

22

SPARK PLUG (IFR5L11) (NGK)

98079-5517U

$16.24

22

SPARK PLUG (VK20PRZ11) (DENSO) | (Optional).

98079-5615U

$29.67

22

SPARK PLUG (IFR6L11) (NGK) | (Optional).

98079-5617U

$18.24
