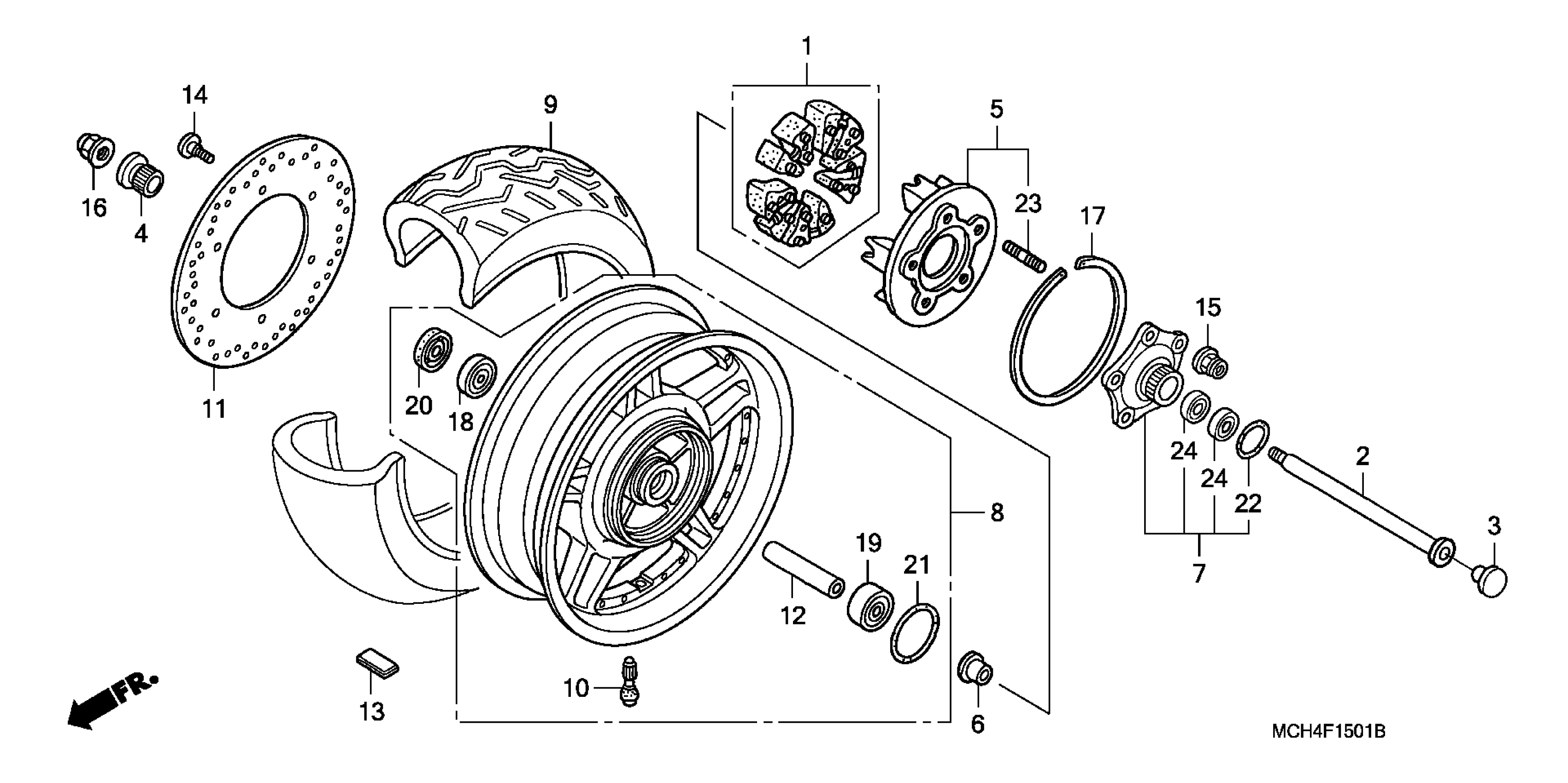

Honda VTX1800F1A (06) MOTORCYCLE, USA, VIN# 1HFSC46B-6A400001 TO 1HFSC46B-6A499999 REAR WHEEL (VTX1800F) Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MAZ-000

$54.00

2

AXLE, RR. WHEEL

42301-MCH-010

$59.90

4

COLLAR, RR. WHEEL

42312-MCH-F10

Unavailable

5

FLANGE B, FINAL DRIVEN

42614-MCH-000

$231.93

6

COLLAR A, RR. AXLE DISTANCE

42624-MCH-000

$13.25

7

FLANGE SET, FINAL DRIVEN

42630-MCH-000

$268.13

8

WHEEL SUB-ASSY., RR.

42650-MCH-F10

Unavailable

9

TIRE, RR. (180/55R18 M/C 74V) (DUNLOP)

42711-MCH-F11

Unavailable

10

VALVE, RIM (DUNLOP)

42753-ML7-004

$11.69

11

DISK, RR. BRAKE

43251-MCH-003

$151.37

12

COLLAR, FR. AXLE DISTANCE

44620-MAH-000

Unavailable

13

WEIGHT, BALANCE (10G) (TOPY)

44721-S3Y-003

$1.34

13

WEIGHT (20G) This part replaces 44722-S3Y-003.

44724-TP6-A01

$1.49

13

WEIGHT, BALANCE (30G) (TOPY)

44723-S3Y-003

$2.15

13

WEIGHT, BALANCE (40G) (TOHO) This part replaces 44724-S3Y-003.

44724-SEA-N01

$6.16

13

WEIGHT, BALANCE (5G) (TOPY)

44726-S3Y-003

$1.24

13

WEIGHT, BALANCE (15G) (TOPY)

44727-S3Y-003

$1.40

13

WEIGHT, BALANCE (25G) (TOPY)

44728-S3Y-003

$2.93

13

WEIGHT, BALANCE (35G) (TOPY)

44729-S3Y-003

$2.47

14

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$5.93

14

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$5.93

15

NUT, FLANGE (12MM)

90306-KF0-003

$3.68

16

NUT, FLANGE (18MM)

90306-MCH-003

$12.06

17

CIRCLIP (INNER) (188)

90651-MCH-000

$16.37

18

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$29.51

19

BEARING, RADIAL BALL (20X47X20.6) (NTN)

91053-MN5-003

$68.78

20

DUST SEAL (30X52X7)

91253-442-003

$12.82

21

O-RING (61X2)

91302-MA6-003

$4.93

22

O-RING (50.5X3.5) (ARAI)

91358-MG9-003

Unavailable

22

O-RING (50.5X3.5) (ARAI) This part replaces 91358-MG9-004.

91358-MG9-003

Unavailable

23

BOLT 2, STUD (12X32)

92900-12032-0E

$2.79

24

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$15.94
