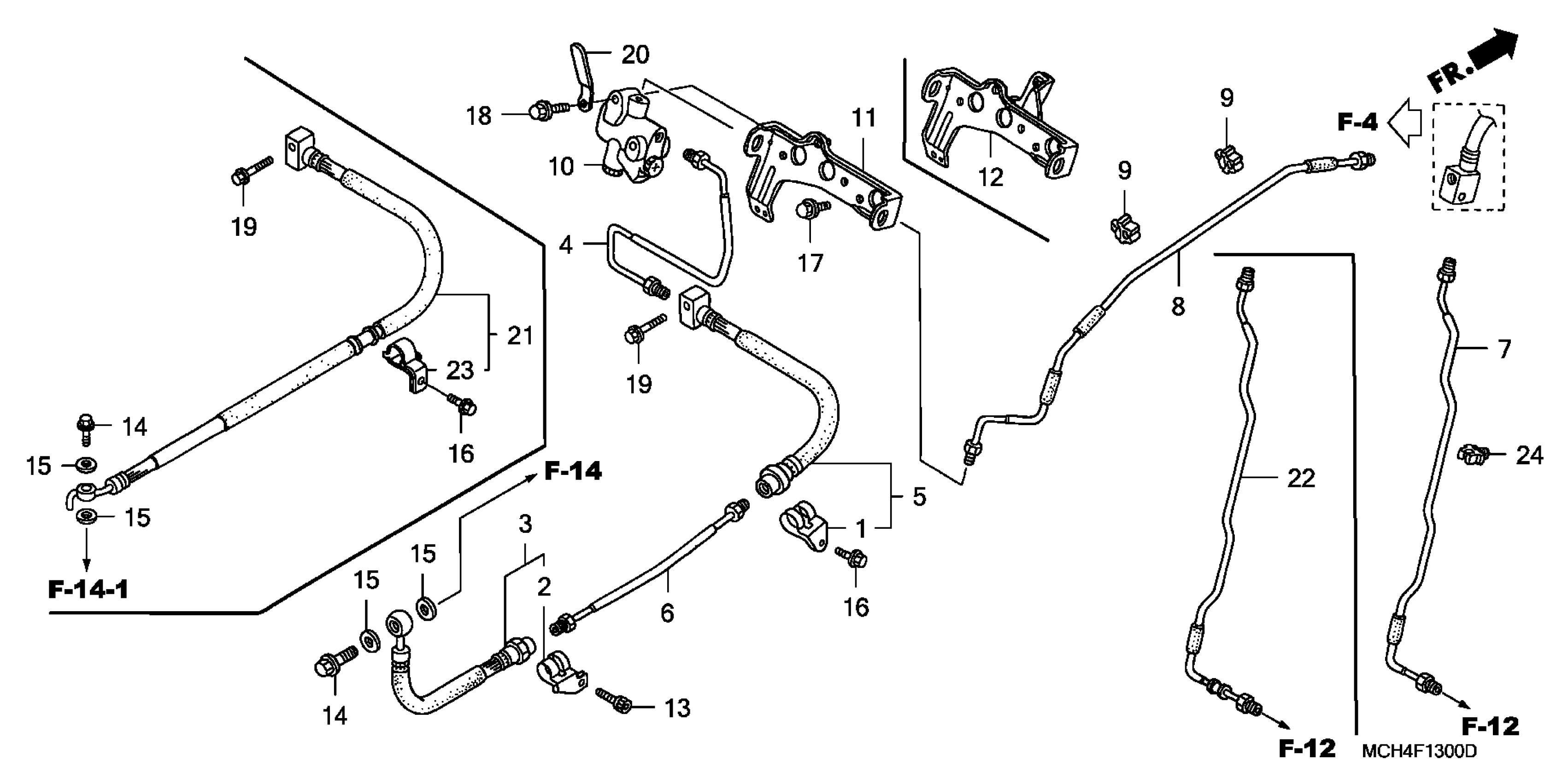

Honda VTX1800F1A (06) MOTORCYCLE, USA, VIN# 1HFSC46B-6A400001 TO 1HFSC46B-6A499999 BRAKE LINES Diagram

PIPE B, RR. BRAKE

43312-MCH-000

$14.25

PIPE, PCV JOINT

45132-MCH-000

Unavailable

CLIP, BRAKE PIPE

46394-SN7-003

$11.05

VALVE ASSY., PRESSURE CONTROL

46400-MCH-016

Unavailable

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

BOLT, FLANGE (6X12)

90126-MCH-A00

$1.49

BOLT, FLANGE (6X40)

95801-06040-07

$1.89

BOLT, FLANGE (6X25)

90124-MCH-A00

$1.49

CLIP, SUB-WIRE

32901-MA1-000

$4.95

HOSE, RR. BRAKE

43310-MCV-R11

Unavailable

PIPE, RR. MASTER CYLINDER

45131-MCH-C10

Unavailable

CLAMP, BRAKE HOSE

52114-KY1-000

$4.90

CLIP, BRAKE PIPE

46394-MCH-A11

$1.74
