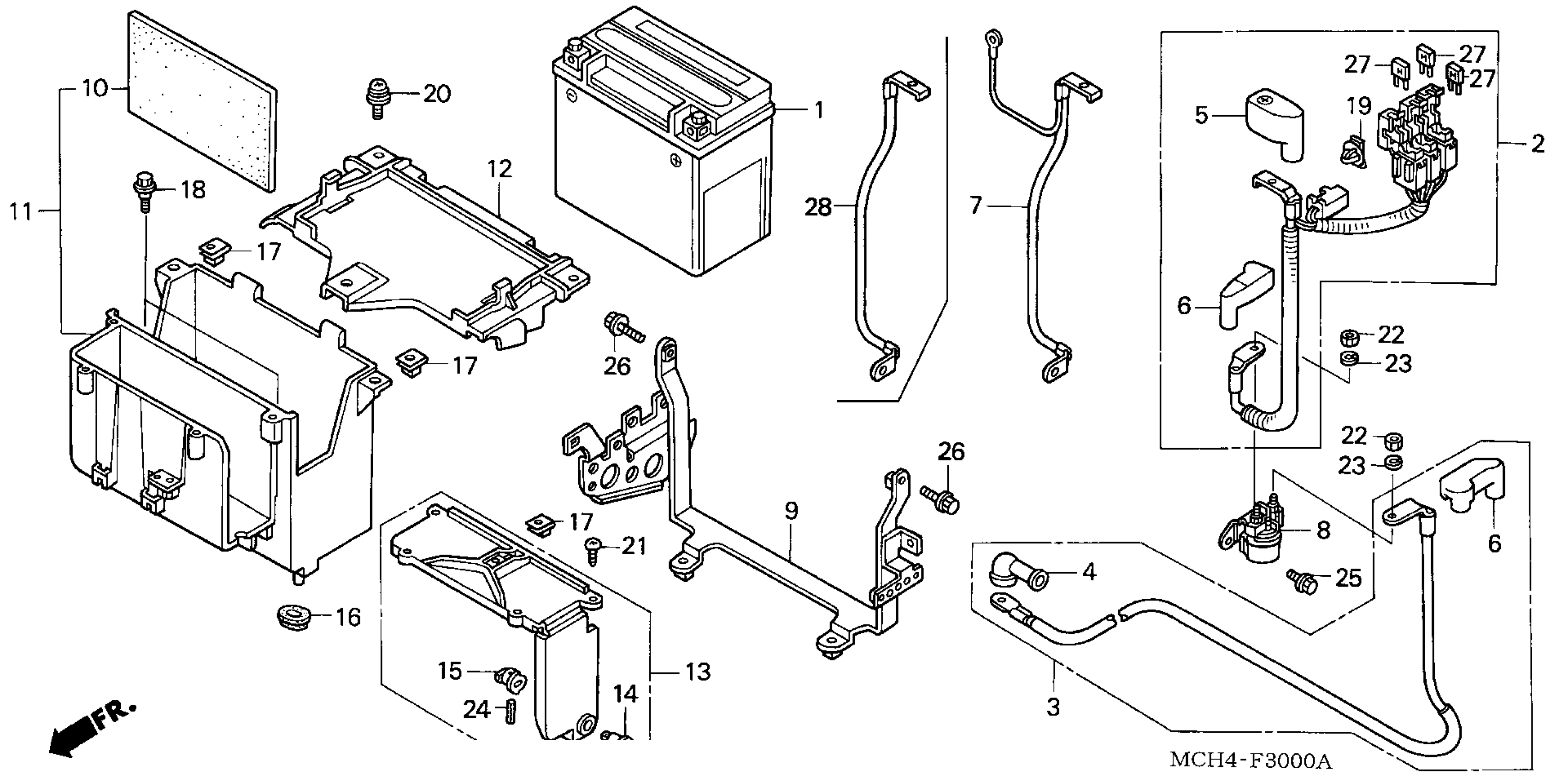

Honda VTX1800F1A (06) MOTORCYCLE, USA, VIN# 1HFSC46B-6A400001 TO 1HFSC46B-6A499999 BATTERY Diagram

BATTERY,YTX20L-BS This part replaces 31500-MCA-003.

31500-MCA-013AH

$141.79

BATTERY (YTX20L-BS) (YUASA)

31500-MCA-003AH

Unavailable

CABLE, STARTER BATTERY

32401-MCH-F10

Unavailable

CABLE, STARTER MOTOR

32410-MCV-A20

Unavailable

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

COVER, BATTERY TERMINAL

32414-MZ5-000

$5.25

COVER B, MAGNETIC SWITCH

32416-MF5-000

$5.21

SWITCH ASSY., STARTER MAGNETIC

35850-ZJ1-811

$88.43

HOLDER, BATTERY BOX

50322-MCV-R10

$19.25

CUSHION, BATTERY

50325-KM1-000

$4.57

BOX, BATTERY

50325-MCH-000

$58.48

COVER, BATTERY BOX

50326-MCV-R10

$45.16

COVER ASSY., TOOL

50330-MCH-000

$29.56

BODY, KEY

83507-422-000

$3.53

STOPPER, KEY BODY

83508-KBG-000

$2.90

STOPPER, KEY BODY This part replaces 83508-438-000.

83508-KBG-000

$2.90

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

NUT, FENDER SETTING

84601-HA7-670

$5.54

BOLT, FLANGE (6MM)

90003-GAZ-000

$3.31

CLIP, CONNECTOR (BROWN)

91556-SP0-003

$5.03

SCREW-WASHER (6X20)

93893-06020-07

$1.49

SCREW, TAPPING (4X12)

93903-24380

$1.49

NUT, HEX. (6MM)

94002-06080-0S

$1.49

WASHER, SPRING (6MM)

94111-06800

$1.49

PIN, SPRING (2X14)

94305-20141

$1.49

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

BOLT, FLANGE (6X20)

95701-06020-07

$1.62

FUSE, MINI (30A)

98200-43000

$1.67

CABLE, BATTERY GROUND

32601-MCH-A00

Unavailable
