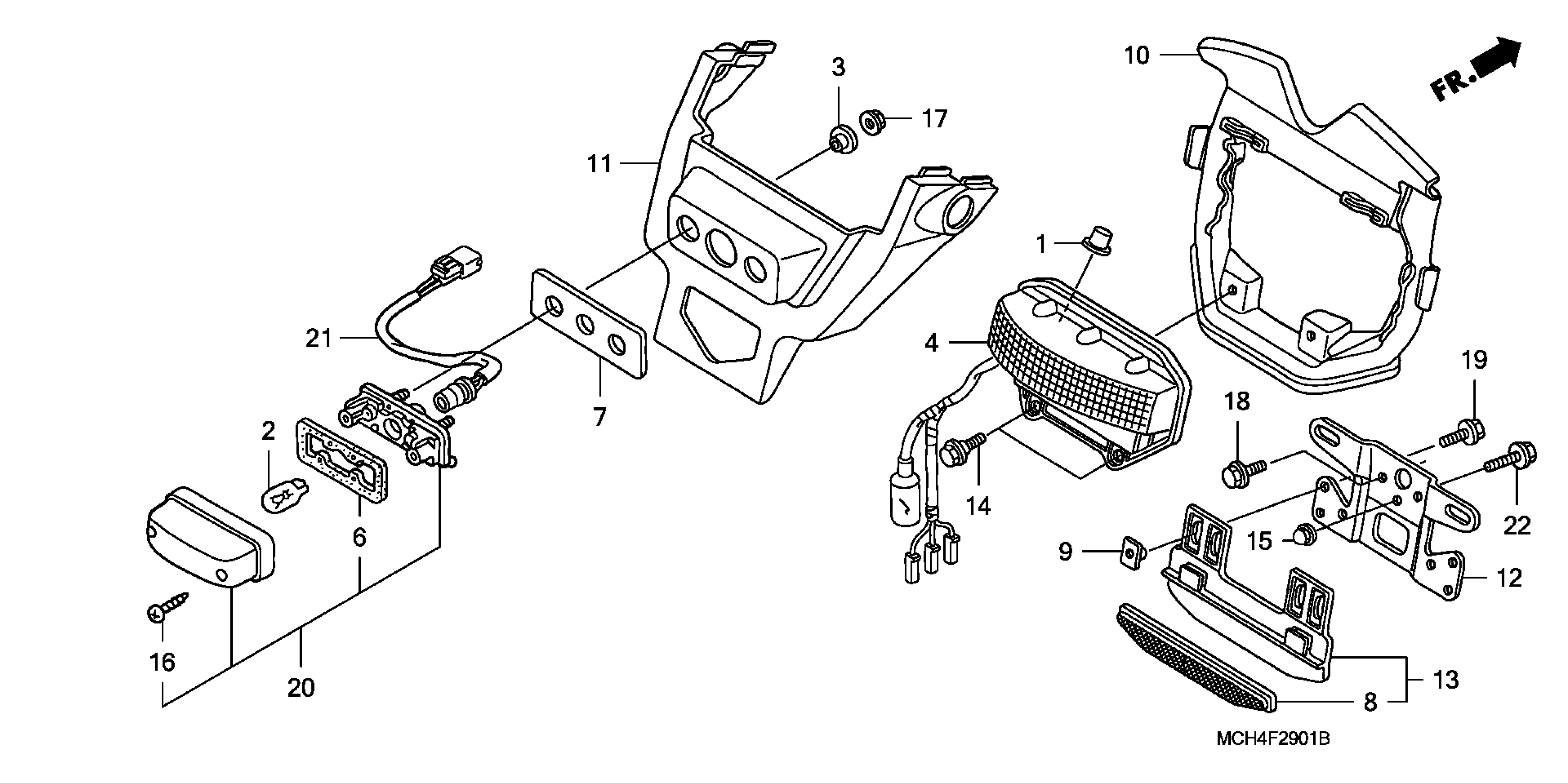

Honda VTX1800F1A (05) MOTORCYCLE, USA, VIN# 1HFSC46B-5A300001 TO 1HFSC46B-5A399999 TAILLIGHT (VTX1800F) Diagram

RUBBER, RADIATOR MOUNTING

19113-MB1-870

$3.47

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.80

COLLAR C, RR. TURN SIGNAL

33614-MEC-650

$2.56

TAILLIGHT ASSY.

33701-MCH-F11

Unavailable

GASKET, LENS

33729-MCZ-003

$9.48

RUBBER, LICENSE LIGHT

33730-MCH-F10

$11.41

REFLECTOR, REFLEX

33743-MEC-860

$51.36

NUT, SPECIAL (6X7)

61304-958-003

$3.24

COVER (INNER)

77360-MCH-F10

Unavailable

COVER, TAILLIGHT

80120-MCH-F10

Unavailable

BRACKET, NUMBER PLATE

84701-MCH-F10

$58.87

BRACKET B ASSY., NUMBER PLATE

84705-MCH-F10

$71.16

BOLT, FLANGE (6MM)

90113-GF0-000

$4.24

NUT, CAP (6MM)

90201-428-900

$2.23

SCREW, TAPPING (4X16)

93901-24480

$1.49

NUT, FLANGE (5MM)

94050-05000

$1.49

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

LIGHT, LICENSE

33721-MCH-F11

Unavailable

SOCKET

33722-MCH-F11

$58.64

BOLT, FLANGE (6X14)

95701-06014-07

$1.49
