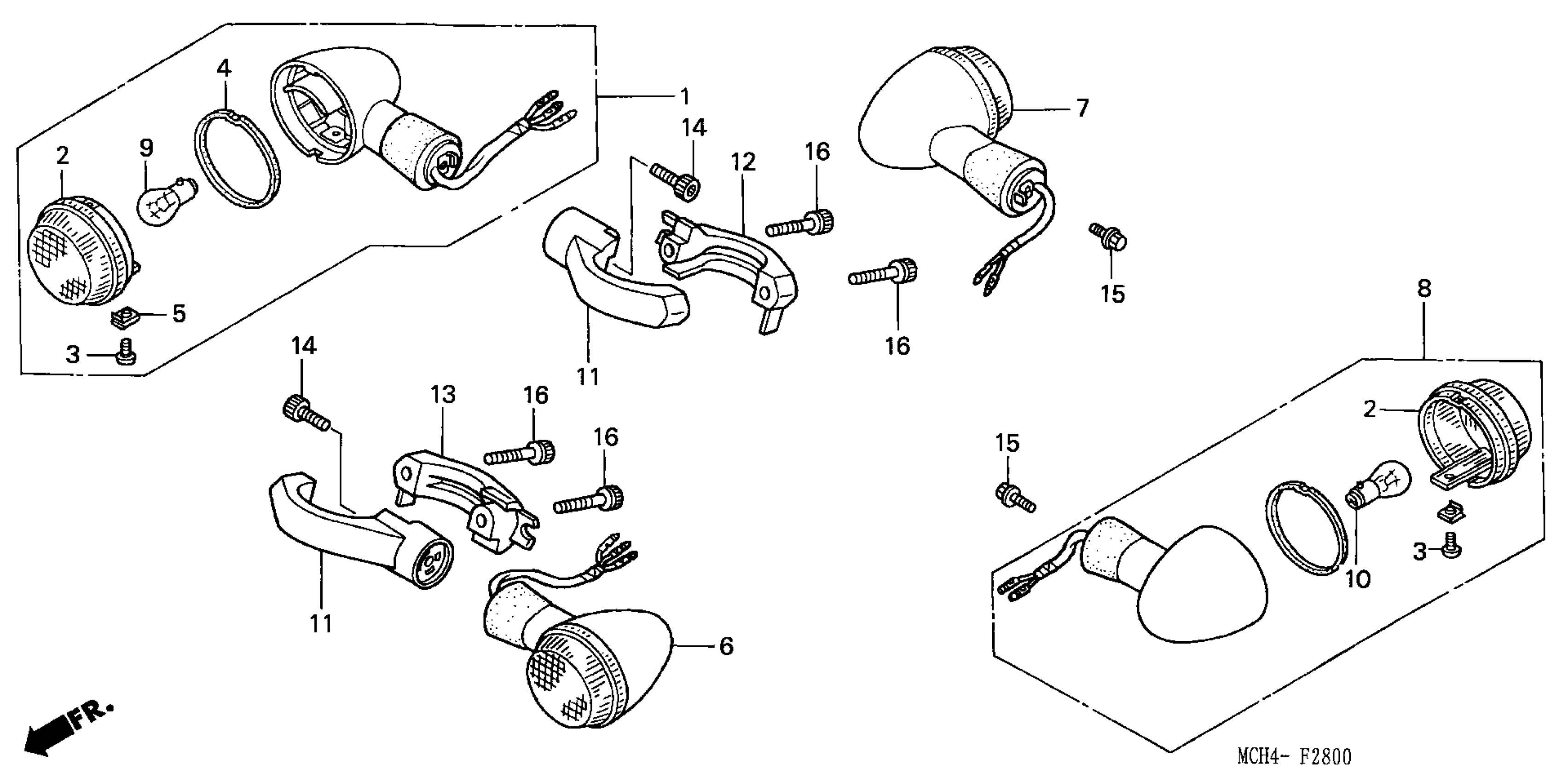

Honda VTX1800CA (04) MOTORCYCLE, USA, VIN# 1HFSC460-4A200001 TO 1HFSC460-4A299999 TURN SIGNAL (1) Diagram

WINKER ASSY,R FR This part replaces 33400-MBH-672.

33400-MBH-673

$68.30

LENS, TURN SIGNAL (COO) This part replaces 33401-MBA-612.

33401-MFR-305

$10.20

SCREW, SPECIAL (4X8)

33403-MBA-611

$1.49

GASKET, LENS

33407-MBA-611

$3.15

NUT, CLIP

33408-MBA-611

$2.11

WINKER ASSY,L FR This part replaces 33450-MBH-672.

33450-MBH-673

$68.30

TURN SIGNAL ASSY. This part replaces 33600-MCH-003.

33600-MCH-013

Unavailable

WINKER ASSY,L RR This part replaces 33650-MCH-003.

33650-MCH-013

$73.87

BULB, TAILLIGHT (12V 21/5W) (STANLEY) (FR.)

34906-447-711

$9.38

BULB (12V 21W) (ECE) (STANLEY) (RR.)

34908-634-611

$5.88

HOLDER A, FR. TURN SIGNAL

53103-MZ0-010

$25.36

HOLDER B, R. FR. TURN SIGNAL | Use up to Frame SN 4A201950

53104-MCH-A00

Unavailable

HOLDER B, R. FR. TURN SIGNAL | Use from Frame SN 4A201951

53104-MCH-A01

Unavailable

HOLDER B, L. FR. TURN SIGNAL | Use up to Frame SN 4A201950

53114-MCH-A00

$20.44

HOLDER B, L. FR. TURN SIGNAL | Use from Frame SN 4A201951

53114-MCH-A01

$23.70

BOLT, SOCKET (6X15)

90071-ME9-000

$3.67

BOLT, FLANGE (6X12)

90130-ML0-730

$2.92

BOLT, SOCKET (6X28)

96600-06028-00

$1.80
