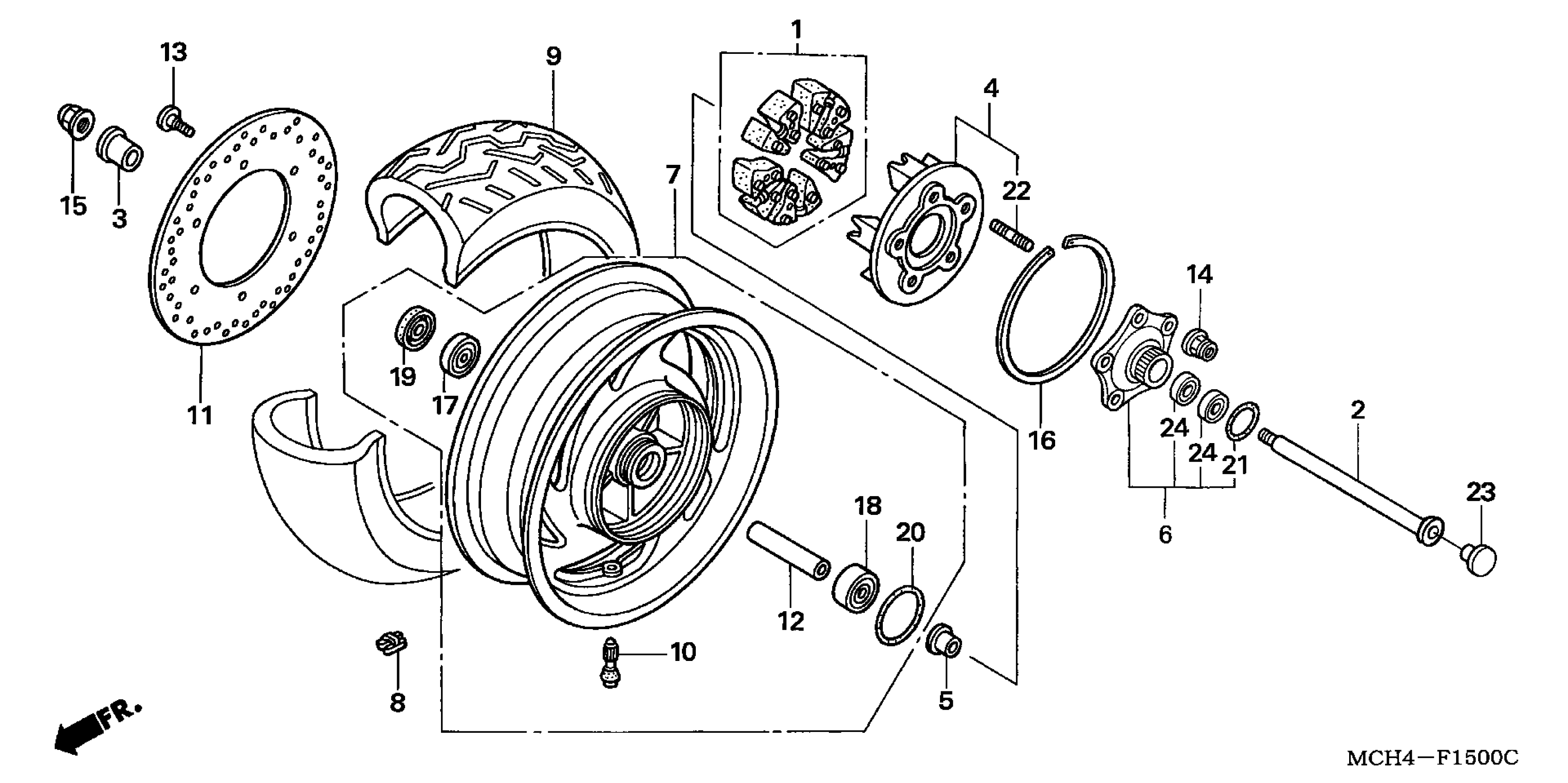

Honda VTX1800CA (04) MOTORCYCLE, USA, VIN# 1HFSC460-4A200001 TO 1HFSC460-4A299999 REAR WHEEL (VTX1800C) Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MAZ-000

$52.81

2

AXLE, RR. WHEEL

42301-MCH-010

$59.03

3

COLLAR, RR. WHEEL

42312-MCH-A00

Unavailable

4

FLANGE B, FINAL DRIVEN

42614-MCH-000

$228.57

5

COLLAR A, RR. AXLE DISTANCE

42624-MCH-000

$12.96

6

FLANGE SET, FINAL DRIVEN

42630-MCH-000

$262.25

7

WHEEL SUB-ASSY., RR.

42650-MCH-010

Unavailable

8

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$11.35

8

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$14.00

8

WEIGHT, BALANCE (20G)

42705-MCF-D60

$14.00

8

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$12.91

9

TIRE, RR. (180/70R16) (M/C 77H) (DUNLOP) This part replaces 42711-MCH-014.

42711-MCH-024

Unavailable

9

TIRE, RR. (180/70R16) (M/C 77H) (DUNLOP)

42711-MCH-024

Unavailable

10

VALVE, RIM (DUNLOP)

42753-ML7-004

$11.44

11

DISK, RR. BRAKE

43251-MCH-003

$148.05

12

COLLAR, FR. AXLE DISTANCE

44620-MAH-000

Unavailable

13

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$5.78

13

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$5.78

14

NUT, FLANGE (12MM)

90306-KF0-003

Unavailable

15

NUT, FLANGE (18MM)

90306-MCH-003

$11.79

16

CIRCLIP (INNER) (188)

90651-MCH-000

$16.13

17

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$28.86

18

BEARING, RADIAL BALL (20X47X20.6) (NTN)

91053-MN5-003

$67.27

19

DUST SEAL (30X52X7)

91253-442-003

$12.53

20

O-RING (61X2)

91302-MA6-003

$4.81

21

O-RING (50.5X3.5) (ARAI)

91358-MG9-003

$3.51

21

O-RING (50.5X3.5) (ARAI) This part replaces 91358-MG9-004.

91358-MG9-003

$3.51

22

BOLT 2, STUD (12X32)

92900-12032-0E

$2.75

24

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$15.59
