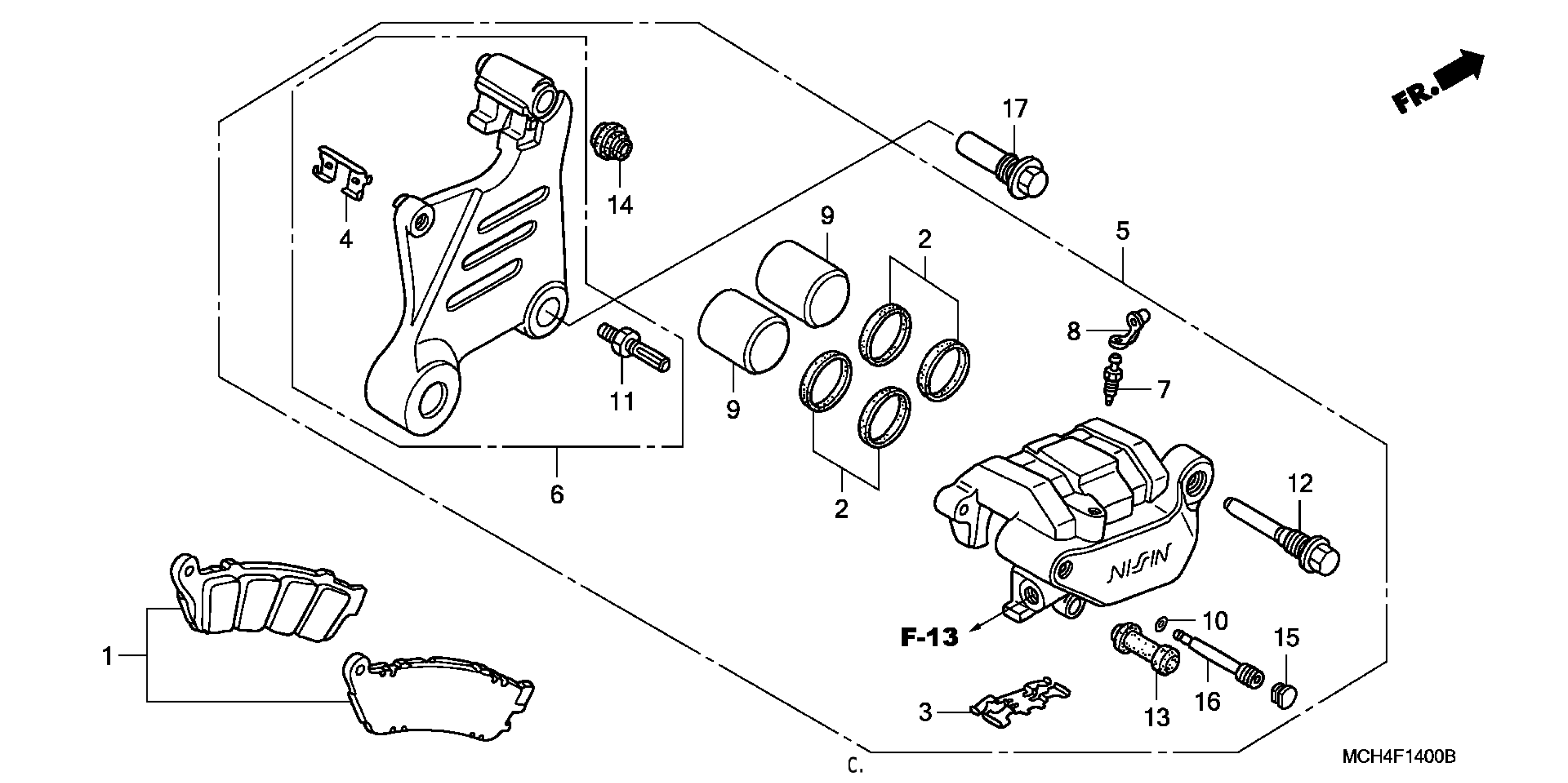

Honda VTX1800CA (04) MOTORCYCLE, USA, VIN# 1HFSC460-4A200001 TO 1HFSC460-4A299999 REAR BRAKE CALIPER ('02-'04) Diagram

Description

Price

PAD SET, RR. This part replaces 06435-MCV-006.

06435-MCV-016

$41.03

PAD SET, RR.

06435-MCV-016

$41.03

SEAL SET, PISTON

06451-961-405

$6.56

SPRING, PAD

43108-MAJ-G41

$9.49

RETAINER, RR. BRACKET

43112-MCV-006

$9.11

CALIPER SUB-ASSY., RR. (NISSIN)

43150-MCV-006

$218.67

BRACKET SUB-ASSY., RR. CALIPER

43190-MCV-006

Unavailable

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.22

CAP, BLEEDER

43353-461-771

$5.05

PISTON

45107-MA6-006

$41.70

RING, STOPPER

45111-MAJ-G41

$3.80

BOLT, PIN

45131-MAC-681

$13.23

PIN, BOLT

45131-MZ2-006

$17.38

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

PLUG, PIN

45203-MCC-006

$2.89

PIN, HANGER

45215-MAJ-G41

$6.45

BOLT, BRAKE STOPPER

90158-MZ0-000

$26.18
