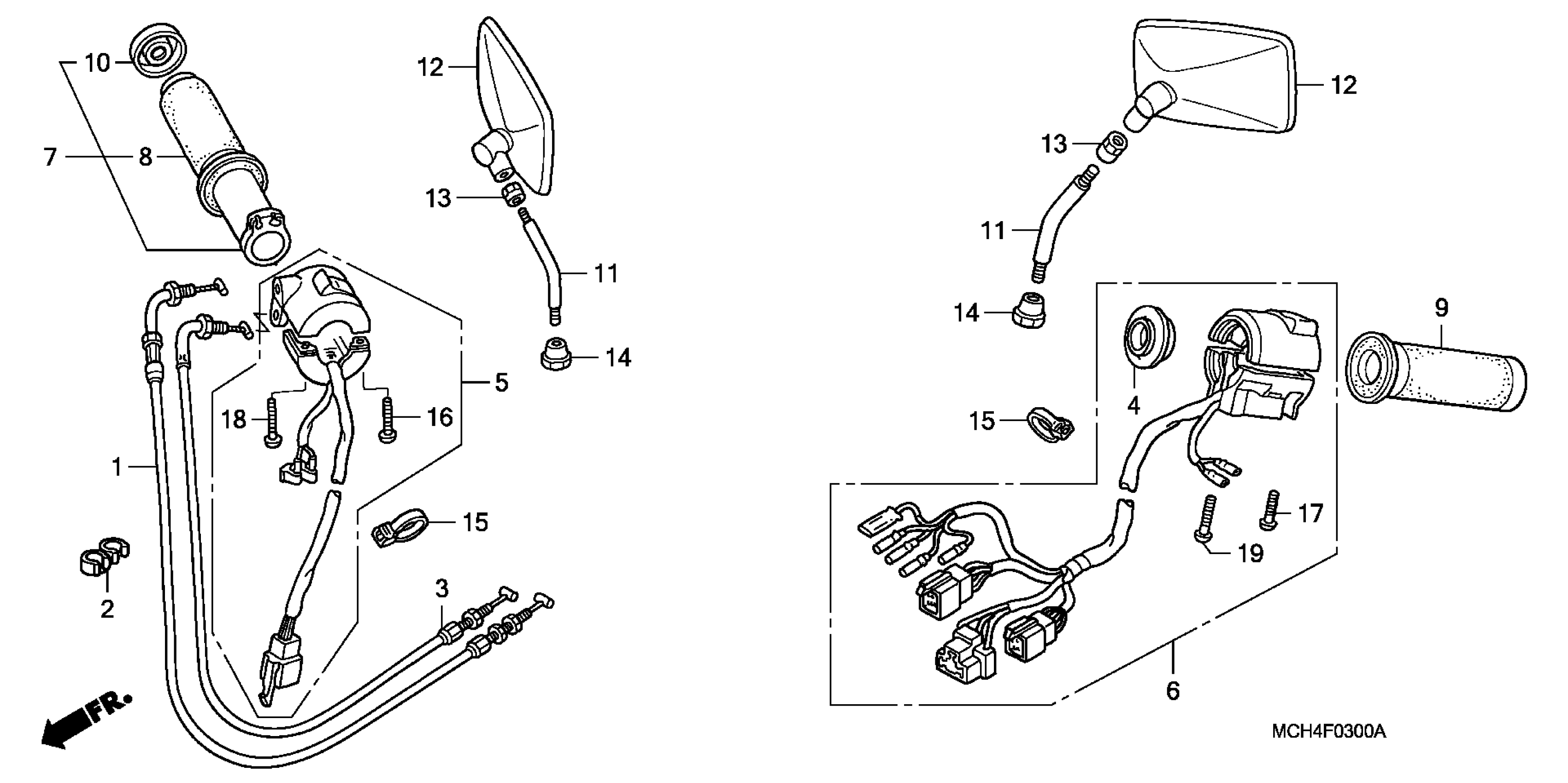

Honda VTX1800CA (04) MOTORCYCLE, USA, VIN# 1HFSC460-4A200001 TO 1HFSC460-4A299999 HANDLE SWITCH (1) Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MCH-000

$17.66

2

CLIP, THROTTLE WIRE

17915-SA7-981

$2.87

3

CABLE B, THROTTLE

17920-MCH-000

$17.84

4

ADAPTER

17962-MR1-000

$17.70

5

SWITCH, STARTER STOP This part replaces 35013-MCH-010.

35013-MCH-020

$102.00

6

SWITCH SET, TURN SIGNAL

35020-MCH-000

$115.22

7

GRIP, R.

53145-MM8-000

$39.08

8

GRIP, R.

53145-MM8-000

$39.08

8

GRIP, R. This part replaces 53165-MM8-000.

53145-MM8-000

$39.08

9

GRIP, L. HANDLE

53166-KCR-000

$32.91

10

CAP, GRIP END

53167-MM8-000

$8.63

11

STAY

88215-MAH-000

$24.66

12

MIRROR, BACK

88310-MAH-305

$68.10

13

NUT, LOCK

90314-ME8-000

$13.54

14

NUT, LOCK

90314-375-000

$11.51

15

BAND, WIRE HARNESS

90652-MB0-000

$3.19

16

SCREW, PAN (5X20)

93500-05020-0A

$0.82

17

SCREW, PAN (5X22)

93500-05022-0A

$0.62

18

SCREW, PAN (5X25)

93500-05025-0A

$1.28

19

SCREW, PAN (5X32)

93500-05032-0A

Unavailable
