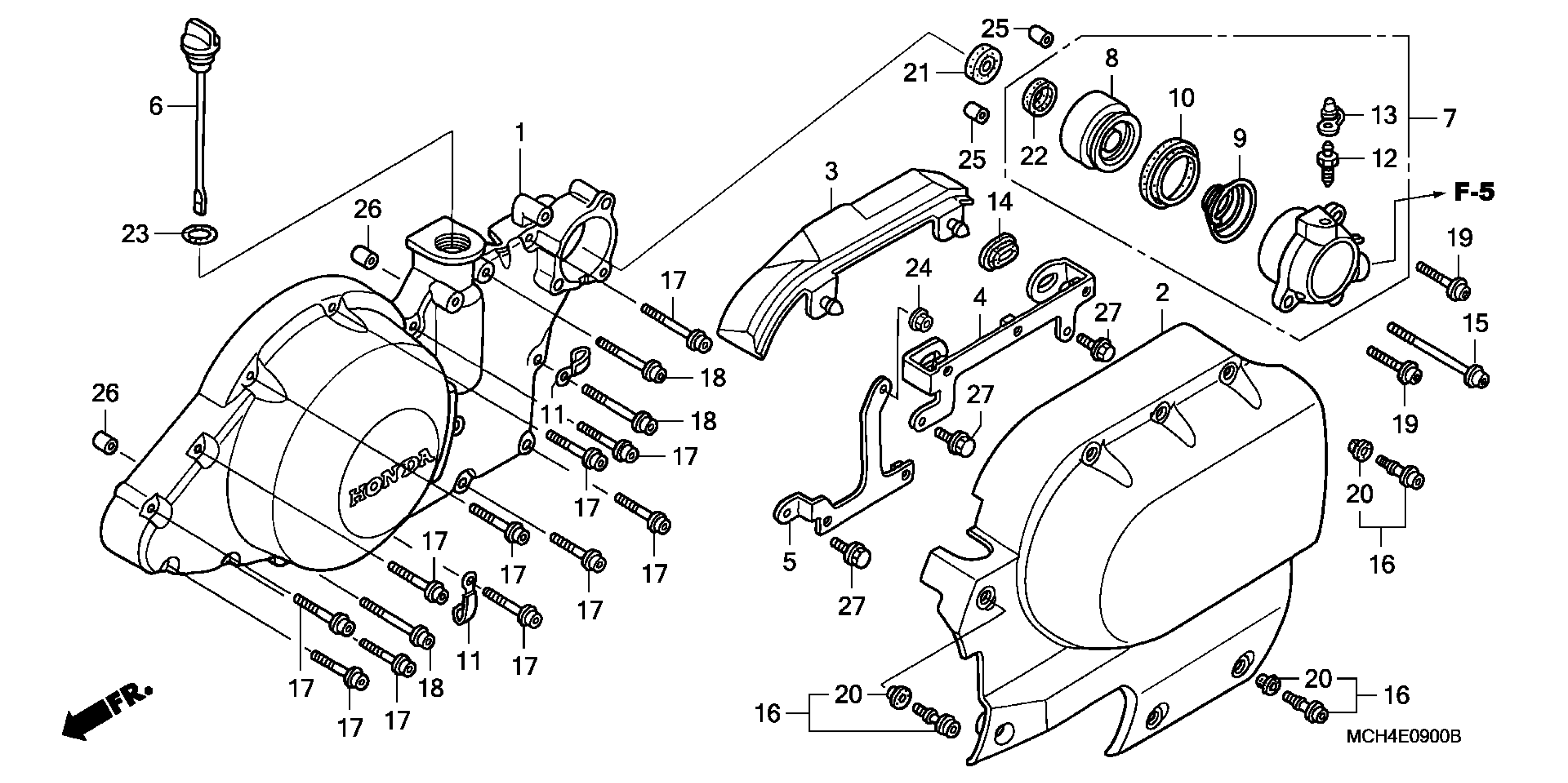

Honda VTX1800CA (02) MOTORCYCLE, USA, VIN# 1HFSC460-2A000001 TO 1HFSC460-2A099999 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE (NA USE ALT:11361-MCH-A00)

11361-MCH-000

Unavailable

COVER, L. RR.

11370-MCH-000

Unavailable

SUB-COVER, L. RR.

11375-MCH-000

Unavailable

STAY A, L. RR. COVER

11380-MCH-000

$8.79

STAY B, L. RR. COVER

11390-MCH-000

Unavailable

DIPSTICK, OIL

15650-MCH-000

$14.03

CYLINDER ASSY., CLUTCH SLAVE

22860-MCH-000

$122.75

PISTON, SLAVE CYLINDER

22863-MJ8-003

$26.65

SPRING, SLAVE CYLINDER

22864-MB0-003

$6.25

CUP, SLAVE CYLINDER

22865-MJ8-003

$11.50

CLAMP, SWITCH WIRE

35211-443-760

$4.13

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.22

CAP, BLEEDER

43353-461-771

$5.05

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

BOLT, SOCKET (6X60)

90011-KN8-730

Unavailable

BOLT ASSY., SPECIAL (6X22)

90020-MBA-D20

$4.24

BOLT, FLANGE SOCKET (6X32)

90032-MCH-000

$2.26

BOLT, FLANGE SOCKET (6X45)

90033-MCH-000

$2.57

BOLT, FLANGE SOCKET (6X25)

90080-MG8-000

$3.89

RUBBER, MOUNTING

90543-MBA-000

$2.92

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

OIL SEAL (8X18X5)

91209-MB0-003

$4.06

O-RING (18X3)

91307-035-000

$2.92

NUT, FLANGE (6MM)

94050-06000

$1.49

PIN, DOWEL (8X10)

94301-08100

$2.25

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
