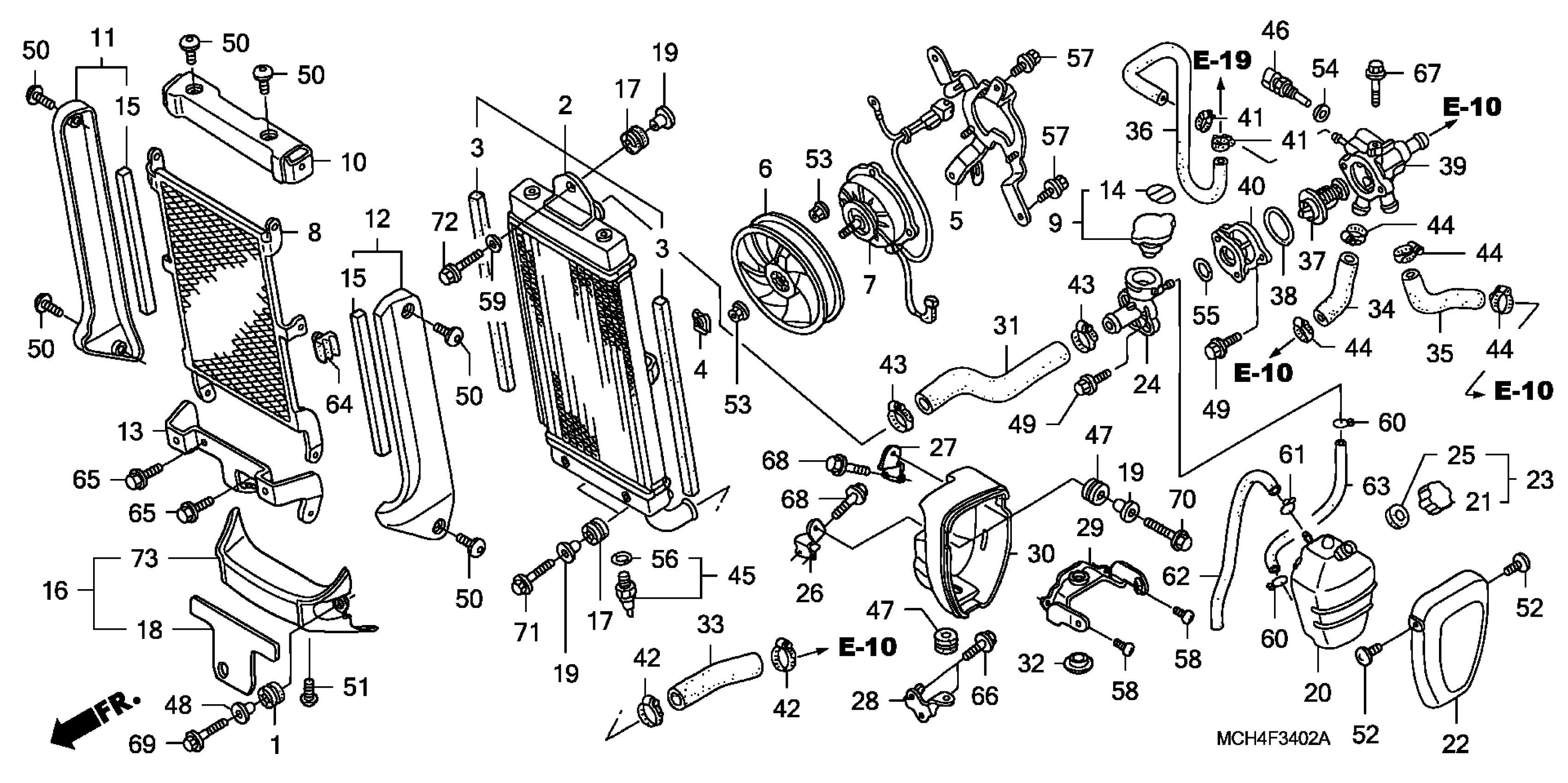

Honda VTX1800C2A (06) MOTORCYCLE, USA, VIN# 1HFSC464-6A400001 TO 1HFSC464-6A499999 RADIATOR (VTX1800C2/C3) Diagram

#

Description
Price

1

RUBBER, PROTECTOR

18316-KFT-620

$2.26

2

RADIATOR

19010-MCH-C20

$232.51

2

RADIATOR This part replaces 19010-MCH-C21.

19010-MCH-C20

$232.51

3

SEAL, RADIATOR SIDE

19011-MCH-300

$7.65

4

NUT, SETTING

19014-KEA-003

$2.88

5

SHROUD

19015-MCH-A11

Unavailable

6

FAN, COOLING

19020-MCH-A11

$15.93

7

MOTOR ASSY., FAN

19030-MCH-A11

Unavailable

8

GRILLE, RADIATOR

19032-MCH-C20

Unavailable

9

CAP, RADIATOR

19037-GEE-710

$27.19

10

COVER, RADIATOR (UPPER)

19041-MCH-C20

$99.86

11

COVER, R. RADIATOR SIDE

19043-MCH-C20

$99.86

12

COVER, L. RADIATOR SIDE

19044-MCH-C20

$99.86

13

STAY, RADIATOR COVER

19045-MCH-C20

$34.25

14

LABEL, RADIATOR CAP

19046-PAA-A00

$2.80

15

SEAL, RADIATOR COVER SIDE

19047-MCH-C20

$4.74

17

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

19

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

20

TANK, RADIATOR RESERVE

19101-MCV-R10

$43.32

21

CAP, RESERVE TANK

19104-ME9-000

$13.85

22

COVER, RESERVE TANK

19105-MCV-R10

Unavailable

23

CAP ASSY., RESERVE TANK

19105-MG8-000

$11.30

24

NECK ASSY., FILLER

19106-MCH-003

$56.20

25

GASKET, RESERVE TANK

19107-MG8-000

$4.56

26

STAY, FR. RESERVE TANK (UPPER)

19111-MCV-R10

$27.00

27

STAY, RR. RESERVE TANK (UPPER)

19112-MCV-R10

$29.09

28

STAY, RESERVE TANK (LOWER)

19113-MCV-R10

$22.52

29

STAY, RADIATOR RESERVE TANK

19114-MCV-R10

$16.78

30

CASE, RADIATOR RESERVE TANK

19115-MCV-R10

Unavailable

31

HOSE, RADIATOR (UPPER)

19116-MCH-010

$10.33

32

RUBBER, RESERVE TANK

19116-MCV-R10

$15.71

33

HOSE, RADIATOR (LOWER)

19117-MCH-010

$19.30

34

HOSE, FR. OUTLET WATER

19118-MCH-000

$2.12

35

HOSE, RR. OUTLET WATER

19119-MCH-010

$4.36

36

HOSE, THERMOBODY

19121-MCH-000

$4.30

37

THERMOSTAT ASSY.

19300-MCH-A00

$42.89

38

RUBBER, THERMOSTAT

19305-KV3-010

$5.64

39

CASE, THERMOSTAT

19311-MCH-315

Unavailable

40

COVER, THERMOSTAT

19313-MCH-315

$25.57

41

CLAMP, WATER HOSE

19507-MAL-600

$5.17

42

CLAMP, RADIATOR HOSE

19509-MM5-003

$12.19

43

CLAMP, HOSE (30-37MM)

19516-GAG-003

$12.40

44

CLAMP, HOSE (24-32MM)

19516-ML7-691

$12.93

45

SWITCH ASSY., THERMO This part replaces 37760-MT2-003.

37760-MR1-003

$64.56

46

SENSOR ASSY., WATER TEMPERATURE

37870-MBG-003

$74.82

47

RUBBER, FR. FENDER MOUNTING

61103-430-000

$3.42

48

COLLAR, AIR CLEANER

80109-KG7-000

Unavailable

49

BOLT, FLANGE (6X16) (CT200)

90029-888-000

$2.04

50

SCREW, PAN (6X10)

90105-MM4-000

$2.01

51

SCREW, PAN (6X11)

90106-KY2-701

$3.95

52

SCREW, SPECIAL (5X10)

90114-MBZ-K00

$4.55

53

NUT, SERRATE (5MM)

90315-MK3-003

$2.12

54

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.38

55

O-RING (26.9X2.4) (NOK)

91302-PF0-003

$2.80

55

O-RING (26.9X2.4) (NOK) This part replaces 91304-KG8-000.

91302-PF0-003

$2.80

55

O-RING (26.9X2.4) (NOK) This part replaces 91304-KG8-003.

91302-PF0-003

$2.80

56

O-RING (13.5X1.4)

91307-PH7-660

$2.78

56

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.78

57

BOLT-WASHER (6X12)

93401-06012-08

Unavailable

58

SCREW, PAN (5X8)

93500-05008-0A

$0.80

59

WASHER, PLAIN (6MM)

94103-06700

$0.65

60

CLIP, TUBE (B12)

95002-02120

Unavailable

61

CLIP, TUBE (C9)

95002-50000

$1.14

62

BULK HOSE, VACUUM (5X3000) (5X900)

95005-50003-30M

$18.72

63

BULK HOSE (7.3X1000)

95005-75001-20M

$20.14

64

RUBBER A, STAND STOPPER

95011-61000

$1.13

65

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

66

BOLT, FLANGE (6X12)

95701-06012-07

$1.48

67

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

68

BOLT, FLANGE (6X16)

95701-06016-08

$1.32

69

BOLT, FLANGE (6X20)

95701-06020-08

$0.35

70

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

71

BOLT, FLANGE (6X25)

95701-06025-07

$1.64

72

BOLT, FLANGE (6X28)

95701-06028-07

$1.03

73

COVER, RADIATOR (LOWER)

19042-MCH-C20

Unavailable
