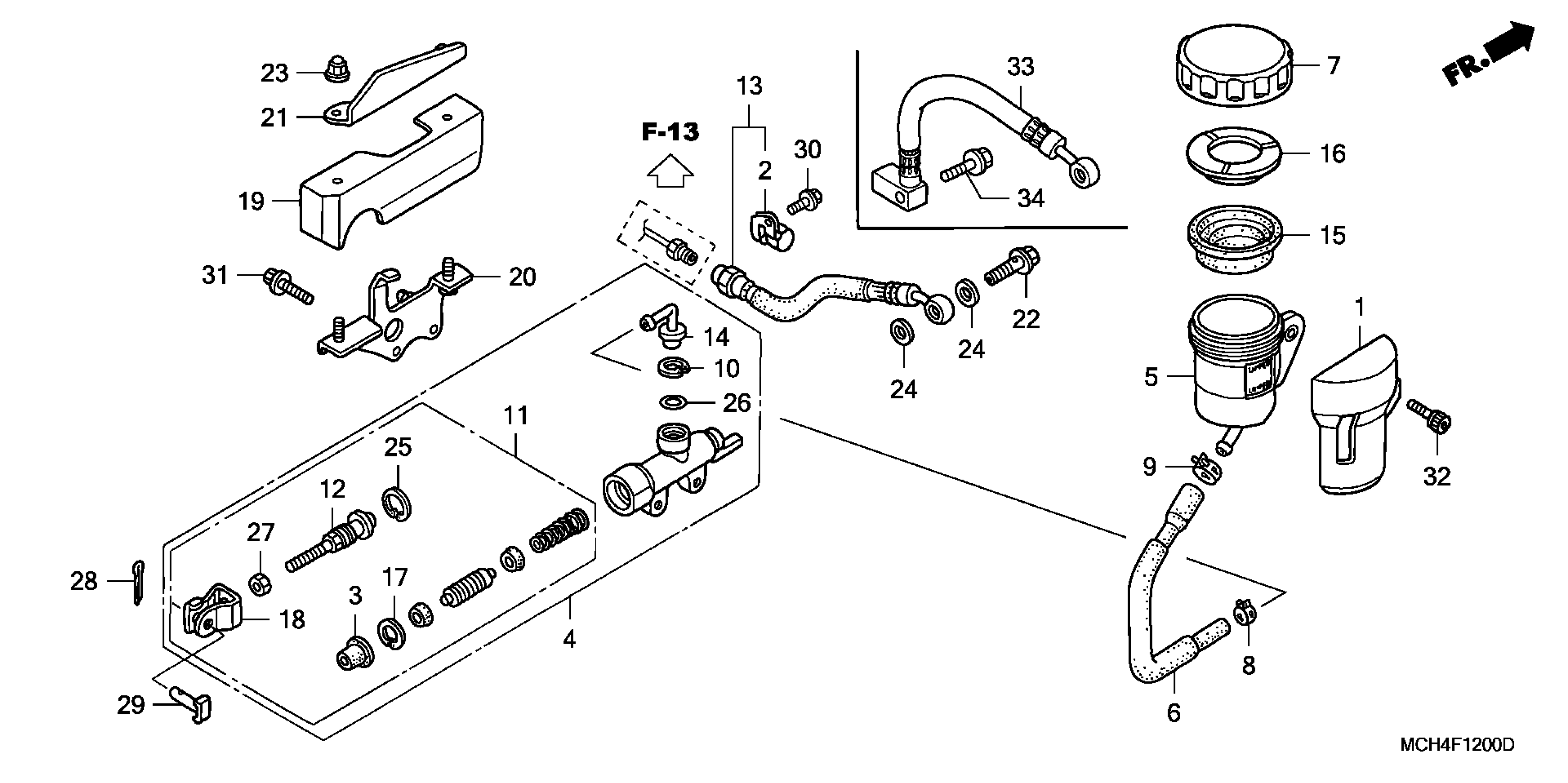

Honda VTX1800C1A (07) MOTORCYCLE, USA, VIN# 1HFSC460-7A500001 TO 1HFSC460-7A599999 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

COVER, RR. BRAKE OIL CUP

21341-MCH-000

$17.53

3

BOOT

43504-MB2-006

$10.04

4

MASTER CYLINDER SUB-ASSY., RR. This part replaces 43510-MCH-006.

43510-MCH-016

$60.56

4

MASTER CYLINDER SUB-ASSY., RR.

43510-MCH-016

$60.56

5

CUP, MASTER CYLINDER OIL

43511-MA6-006

$40.52

6

HOSE, RR. MASTER CYLINDER

43512-MCH-006

$12.10

7

CAP, OIL CUP

43513-MY1-006

$29.39

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

9

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$14.40

10

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.81

11

PISTON SET, RR. MASTER CYLINDER This part replaces 43520-MAT-E01.

43520-MAT-E02

$60.19

11

PISTON SET, RR. MASTER CYLINDER

43520-MAT-E02

$60.19

12

ROD, PUSH

43530-MAT-E01

Unavailable

14

CONNECTOR, MASTER CYLINDER

45503-KV3-006

$9.39

15

DIAPHRAGM

45520-300-000

$9.05

16

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

17

CIRCLIP

46182-500-013

$4.90

18

JOINT, BRAKE ROD

46504-MT4-006

$9.92

19

COVER, RR. BRAKE MASTER CYLINDER

46550-MCH-000

$65.69

20

BRACKET, RR. MASTER CYLINDER COVER

46551-MCH-000

Unavailable

21

GUARD, MASTER CYLINDER HOSE

46552-MCH-000

Unavailable

22

BOLT, OIL (10X22)

90145-MS9-612

$7.54

23

NUT, CAP (6MM)

90202-ZV0-000

$2.91

24

WASHER, OIL BOLT

90545-300-000

$3.99

25

CIRCLIP, PISTON

90651-MBG-006

$2.85

26

O-RING (14.8X2.4)

91212-422-006

$2.56

27

NUT, HEX. (8MM)

94002-08000-0S

$1.49

28

PIN, SPLIT (2.0X15)

94201-20150

$1.49

29

PIN D, JOINT

95015-54000

$4.24

31

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

32

BOLT, SOCKET (6X16)

96600-06016-07

$1.74

33

HOSE, RR. MASTER CYLINDER

45130-MCH-C11

Unavailable

34

BOLT, FLANGE (6X25)

90124-MCH-A00

$1.49
