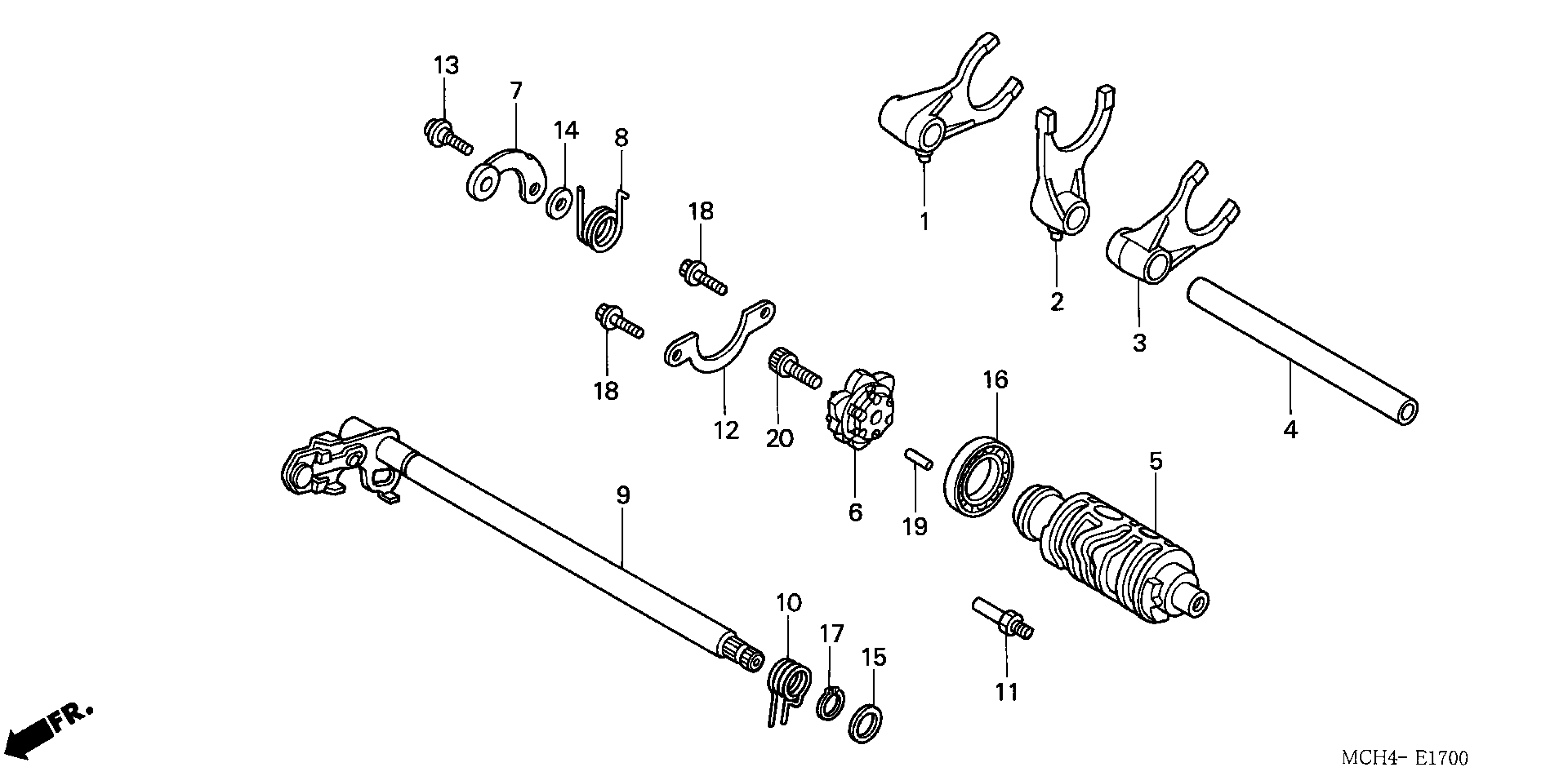

Honda VTX1800C1A (07) MOTORCYCLE, USA, VIN# 1HFSC460-7A500001 TO 1HFSC460-7A599999 GEARSHIFT DRUM Diagram

FORK, R. GEARSHIFT

24211-MCH-010

Unavailable

FORK, CENTER GEARSHIFT

24212-MCH-000

$65.97

FORK, L. GEARSHIFT

24213-MCH-000

Unavailable

SHAFT, GEARSHIFT FORK

24261-MT3-000

$25.44

DRUM, GEARSHIFT

24311-MCH-000

$112.89

CENTER, SHIFT DRUM

24315-MV9-932

$43.39

STOPPER, GEARSHIFT DRUM

24430-MCH-000

$15.64

SPRING, GEARSHIFT DRUM STOPPER

24435-MCH-000

$3.03

SPINDLE, GEARSHIFT

24610-MCH-000

$79.49

SPRING, SHIFT RETURN

24651-MCH-000

$7.08

PIN, SHIFT RETURN SPRING

24652-028-000

$9.72

PLATE, SHIFT DRUM BEARING SETTING

24655-MCH-000

$5.21

PIVOT, SHIFT DRUM STOPPER ARM

90022-MY5-600

$11.61

WASHER, DRUM STOPPER

90417-360-000

$1.74

WASHER (14MM)

90451-155-000

$3.78

BEARING, RADIAL BALL (6805)

91004-GEM-003

$10.95

CIRCLIP, OUTER (14MM)

94510-14000

$1.49

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

ROLLER (4X8)

96220-40080

$1.49

BOLT, SOCKET (8X20)

96600-08020-10

$2.13
