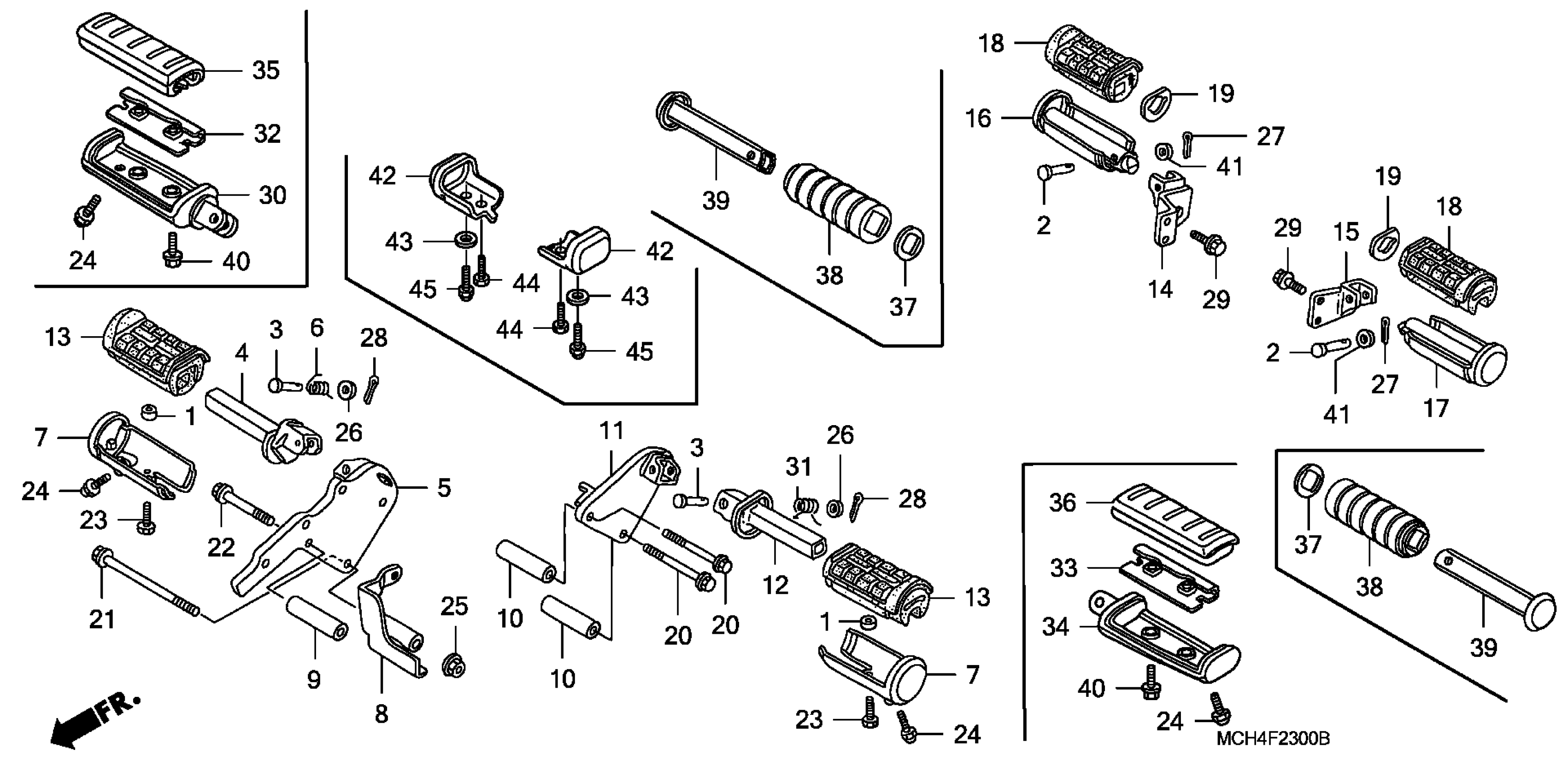

Honda VTX1800C1A (05) MOTORCYCLE, USA, VIN# 1HFSC460-5A300001 TO 1HFSC460-5A399999 STEP (VTX1800C) Diagram

COLLAR, CHAIN CASE

40515-413-000

$2.92

PIN A, PILLION STEP

95015-81000

$2.21

PIN, STEP BAR JOINT

50603-033-010

$3.30

BAR, R. STEP (COO) This part replaces 50612-MK7-010.

50612-MFR-305

$16.18

PLATE, R. STEP HOLDER This part replaces 50615-MCH-000.

50615-MCH-C10

$503.11

SPRING, STEP RETURN

50617-MB1-700

$5.80

STOPPER, STEP RUBBER

50619-MK7-010

$14.06

STOPPER, STEP RUBBER

50619-MM2-770

Unavailable

COVER, BRAKE HOSE

50621-MCH-000

Unavailable

COLLAR A, STEP

50622-MCH-010

$9.48

COLLAR B, STEP

50623-MCH-000

$7.46

PLATE, L. STEP HOLDER This part replaces 50625-MCH-000.

50625-MCH-C10

$383.97

BAR, L. STEP (COO) This part replaces 50642-MM8-000.

50642-MFR-305

$16.18

RUBBER, MAIN STEP (COO) This part replaces 50661-MK7-000.

50661-MFR-305

$9.19

BRACKET, R. PILLION STEP

50680-MCH-C10

Unavailable

BRACKET, L. PILLION STEP

50685-MCH-C10

Unavailable

BOLT, SPECIAL FLANGE (10X90)

90112-MCH-000

$4.94

BOLT, SPECIAL FLANGE (10X165)

90113-MCH-000

$7.46

BOLT, SPECIAL FLANGE (10X100)

90116-MCH-000

$5.48

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

BOLT, CAP (8X10)

92501-08010-0B

$2.20

NUT, FLANGE (10MM)

90303-428-900

$3.35

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.35

WASHER, PLAIN (8MM)

94101-08000

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

SPRING, STEP RETURN

50617-MB1-700

$5.80

WASHER, PILLION STEP

50712-413-000

$3.47

RUBBER, PILLION STEP

50713-MCV-000

$12.08

BAR, R. STEP

50715-MCV-R10

$22.72

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49
