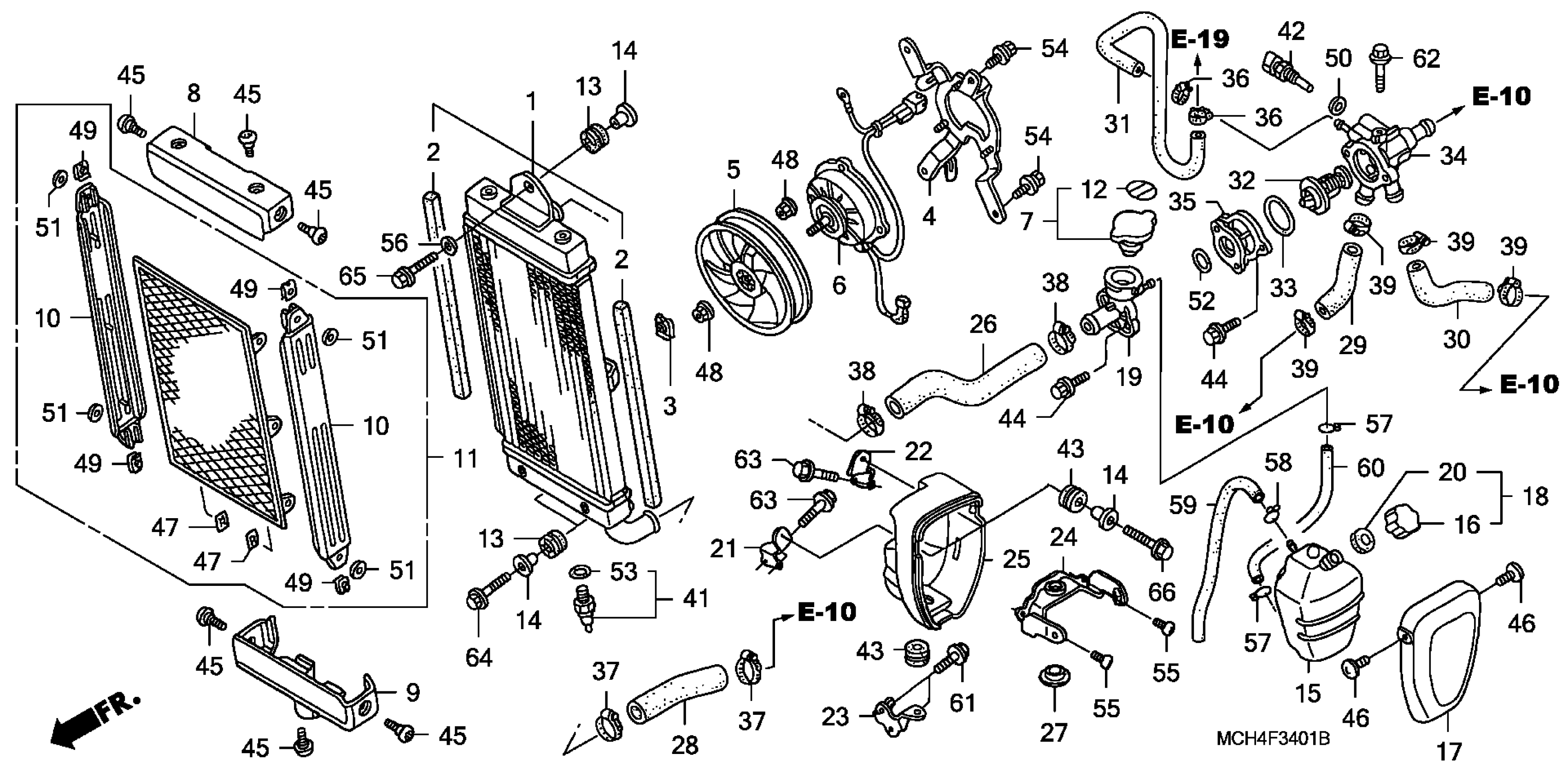

Honda VTX1800C1A (05) MOTORCYCLE, USA, VIN# 1HFSC460-5A300001 TO 1HFSC460-5A399999 RADIATOR (VTX1800C1) Diagram

#

Description
Price

1

RADIATOR

19010-MCH-C20

$232.51

1

RADIATOR This part replaces 19010-MCH-C21.

19010-MCH-C20

$232.51

2

SEAL, RADIATOR SIDE

19011-MCH-300

$7.65

3

NUT, SETTING

19014-KEA-003

$2.88

4

SHROUD

19015-MCH-003

Unavailable

5

FAN, COOLING

19020-MEA-671

$39.05

6

MOTOR ASSY., FAN

19030-MCH-003

$135.29

7

CAP, RADIATOR

19037-GEE-710

$27.19

8

COVER, RADIATOR (UPPER)

19041-MCH-000

$44.99

9

COVER, RADIATOR (LOWER)

19042-MCH-000

$43.14

10

COVER, RADIATOR SIDE

19043-MCH-010

Unavailable

11

GRILLE ASSY., RADIATOR

19045-MCH-010

Unavailable

12

LABEL, RADIATOR CAP

19046-PAA-A00

$2.80

13

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

14

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

15

TANK, RADIATOR RESERVE

19101-MCV-R10

$43.32

16

CAP, RESERVE TANK

19104-ME9-000

$13.85

17

COVER, RESERVE TANK

19105-MCV-R10

Unavailable

18

CAP ASSY., RESERVE TANK

19105-MG8-000

$11.30

19

NECK ASSY., FILLER

19106-MCH-003

$56.20

20

GASKET, RESERVE TANK

19107-MG8-000

$4.56

21

STAY, FR. RESERVE TANK (UPPER)

19111-MCV-R10

$27.00

22

STAY, RR. RESERVE TANK (UPPER)

19112-MCV-R10

$29.09

23

STAY, RESERVE TANK (LOWER)

19113-MCV-R10

$22.52

24

STAY, RADIATOR RESERVE TANK

19114-MCV-R10

$16.78

25

CASE, RADIATOR RESERVE TANK

19115-MCV-R10

Unavailable

26

HOSE, RADIATOR (UPPER)

19116-MCH-010

$10.33

27

RUBBER, RESERVE TANK

19116-MCV-R10

$15.71

28

HOSE, RADIATOR (LOWER)

19117-MCH-010

$19.30

29

HOSE, FR. OUTLET WATER

19118-MCH-000

$2.12

30

HOSE, RR. OUTLET WATER

19119-MCH-010

$4.36

31

HOSE, THERMOBODY

19121-MCH-000

$4.30

32

THERMOSTAT ASSY.

19300-MCH-A00

$42.89

33

RUBBER, THERMOSTAT

19305-KV3-010

$5.64

34

CASE, THERMOSTAT

19311-MCH-315

Unavailable

35

COVER, THERMOSTAT

19313-MCH-315

$25.57

36

CLAMP, WATER HOSE

19507-MAL-600

$5.17

37

CLAMP, RADIATOR HOSE

19509-MM5-003

$12.19

38

CLAMP, HOSE (30-37MM)

19516-GAG-003

$12.40

39

CLAMP, HOSE (24-32MM)

19516-ML7-691

$12.93

41

SWITCH ASSY., THERMO This part replaces 37760-MT2-003.

37760-MR1-003

$64.56

42

SENSOR ASSY., WATER TEMPERATURE

37870-MBG-003

$74.82

43

RUBBER, FR. FENDER MOUNTING

61103-430-000

$3.42

44

BOLT, FLANGE (6X16) (CT200)

90029-888-000

$2.04

45

SCREW, PAN (6X11)

90106-KY2-701

$3.95

46

SCREW, SPECIAL (5X10)

90111-MZ0-000

$3.82

47

NUT, SPEED (5MM)

90310-MY9-000

$1.90

48

NUT, SERRATE (5MM)

90315-MK3-003

$2.12

49

NUT, SPRING (6MM)

90320-MM5-000

$2.58

50

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.38

51

WASHER, PLAIN (6MM)

90546-KA4-004

$2.38

52

O-RING (26.9X2.4) (NOK)

91302-PF0-003

$2.80

52

O-RING (26.9X2.4) (NOK) This part replaces 91304-KG8-000.

91302-PF0-003

$2.80

52

O-RING (26.9X2.4) (NOK) This part replaces 91304-KG8-003.

91302-PF0-003

$2.80

53

O-RING (13.5X1.4)

91307-PH7-660

$2.78

53

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.78

54

BOLT-WASHER (6X12)

93401-06012-08

Unavailable

55

SCREW, PAN (5X8)

93500-05008-0A

$0.80

56

WASHER, PLAIN (6MM)

94103-06700

$0.65

57

CLIP, TUBE (B12)

95002-02120

Unavailable

58

CLIP, TUBE (C9)

95002-50000

$1.14

59

BULK HOSE, VACUUM (5X3000) (5X900)

95005-50003-30M

$18.72

60

BULK HOSE (7.3X1000)

95005-75001-20M

$20.14

61

BOLT, FLANGE (6X12)

95701-06012-07

$1.48

62

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

63

BOLT, FLANGE (6X16)

95701-06016-08

$1.32

64

BOLT, FLANGE (6X25)

95701-06025-07

$1.64

65

BOLT, FLANGE (6X28)

95701-06028-07

$1.03

66

BOLT, FLANGE (6X25)

95701-06025-00

$1.64
