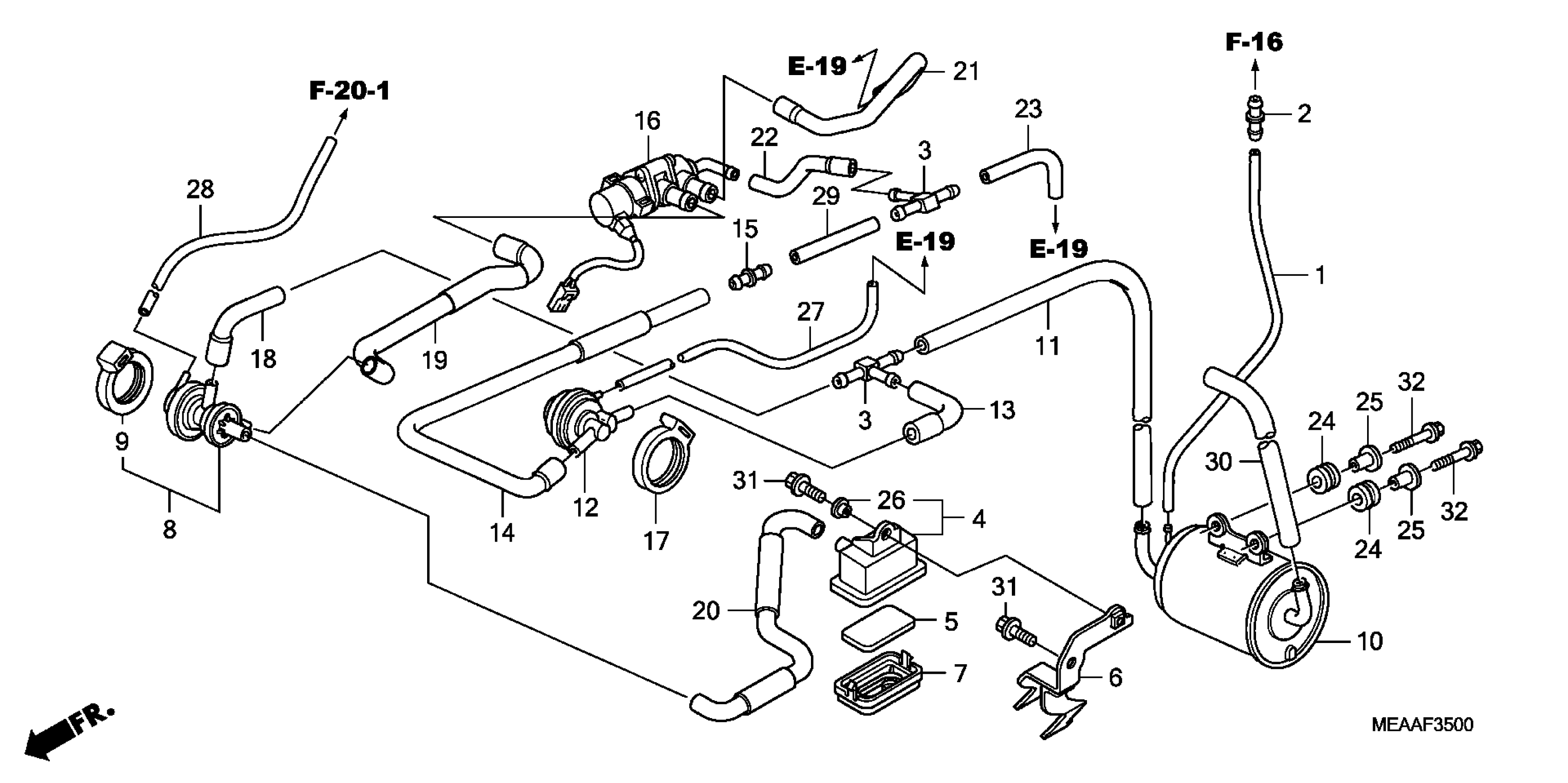

Honda VTX1300TAC (09) VTX, USA, VIN# 1HFSC52N-9A600001 EVAP CANISTER (AC) Diagram

TUBE (4.5X470)

16957-MEA-L50

$12.70

JOINT, FUEL TUBE

16958-GJ6-000

$4.53

T-JOINT

17195-MN5-000

$9.54

CASE, SUB-AIR CLEANER

17251-MN5-000

Unavailable

FILTER, SUB-AIR CLEANER

17254-KAZ-000

$2.20

STAY, SUB-AIR CLEANER

17254-MEA-L50

$14.97

COVER, SUB-AIR CLEANER

17256-KBH-000

$12.95

VALVE ASSY., AIR VENT CONTROL

17300-MEA-771

$248.82

RUBBER, MOUNTING

17305-MJ4-771

$12.46

CANISTER

17410-MCH-771

$309.48

TUBE, CANISTER

17412-MEA-770

$8.61

VALVE, PURGE CONTROL

17440-MEA-L51

$76.36

TUBE A, PURGE CONTROL VALVE

17441-MEA-770

$3.92

TUBE, PURGE CONTROL VALVE- (TWO-WAY)

17442-MEA-L50

$8.10

JOINT (TWO-WAY)

17445-MEA-L50

$16.69

VALVE ASSY., VENT SOLENOID

17450-MEA-L51

$106.64

RUBBER, PURGE CONTROL VALVE MOUNTING

17451-ME5-760

$12.90

TUBE A, AIR VENT CONTROL VALVE

17460-MEA-770

$3.74

TUBE, AIR VENT CONTROL VALVE- SOLENOID

17461-MEA-L50

$3.89

TUBE, AIR VENT CONTROL VALVE- SUB-AIR CLEANER

17462-MEA-L50

$8.13

TUBE, SOLENOID VALVE- CARBURETOR

17463-MEA-L50

$2.30

TUBE, SOLENOID VALVE-THREE WAY

17464-MEA-L50

$1.49

TUBE, CARBURETOR-THREE WAY

17465-MEA-L50

$2.62

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.47

COLLAR (6.2X12)

90501-425-000

$4.69

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

TUBE (6.5X40) (NA USE ALT:95005-65001-20M)

95005-65040-20

Unavailable

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$23.91

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
