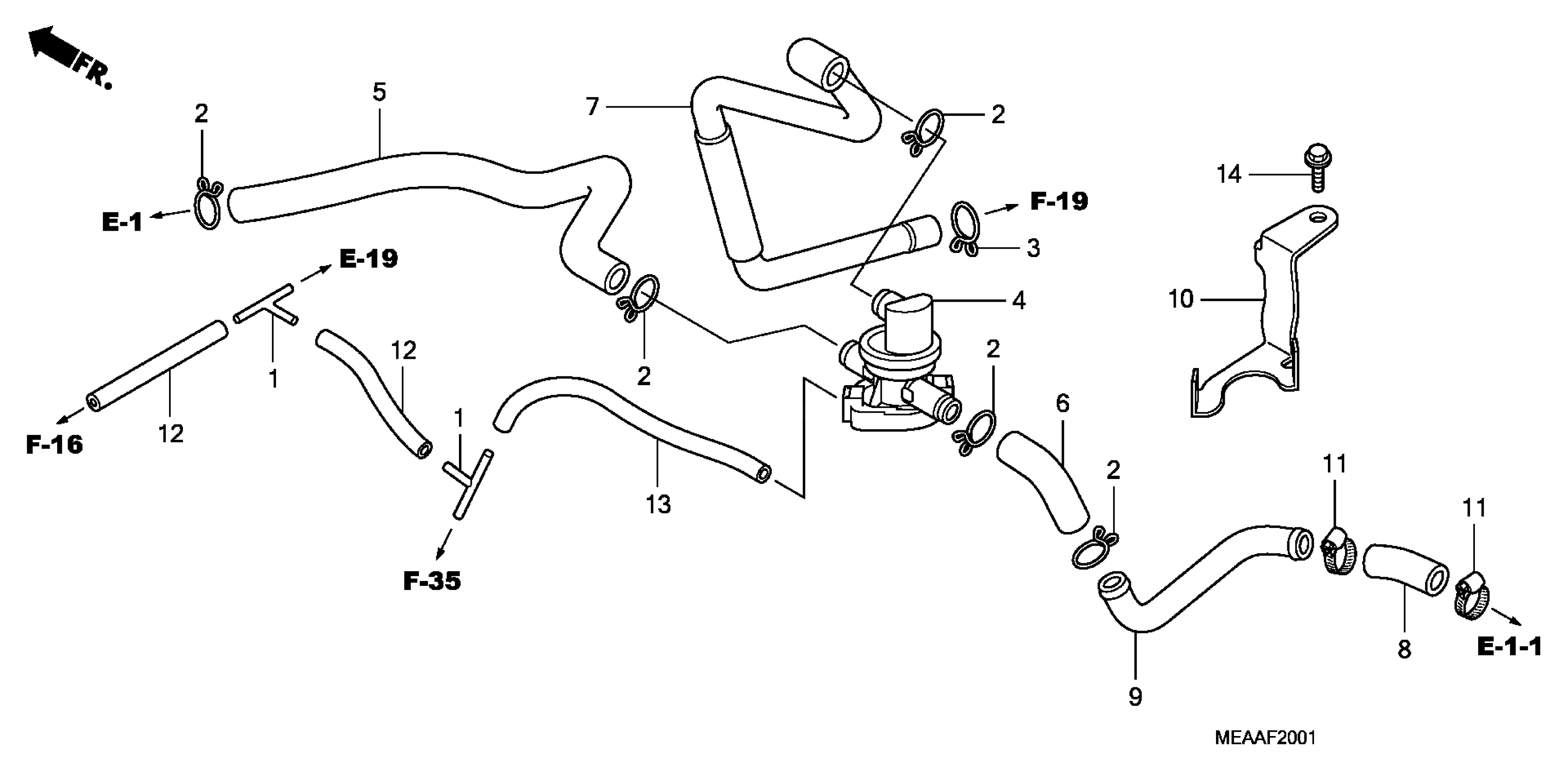

Honda VTX1300TAC (09) VTX, USA, VIN# 1HFSC52N-9A600001 AIR INJECTION CONTROL VALVE (AC) Diagram

JOINT, VACUUM TUBE (A)

17201-MG9-000

$14.31

CLIP, OIL DRAIN TUBE

17316-611-000

$8.28

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

VALVE ASSY., AIR INJECTION CONTROL

18650-MEG-013

Unavailable

TUBE (AICV-FR. HEAD)

18651-MEA-A50

$4.81

TUBE B (AI)

18652-MEA-670

$3.46

TUBE (AICV-AIR CLEANER)

18653-MEA-A50

$8.64

TUBE (AI PIPE-RR. HEAD)

18654-MEA-A50

$2.28

PIPE (AI)

18655-MEA-A50

Unavailable

STAY, AIR INJECTION CONTROL VALVE

18660-MEA-A50

$7.32

CLAMP, WATER HOSE (25MM)

19504-KY1-003

Unavailable

CLAMP, WATER HOSE (25MM) This part replaces 19507-KA3-830.

19504-KY1-003

Unavailable

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$8.69

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$8.69

BOLT, FLANGE (6X18)

95701-06018-08

$1.48
