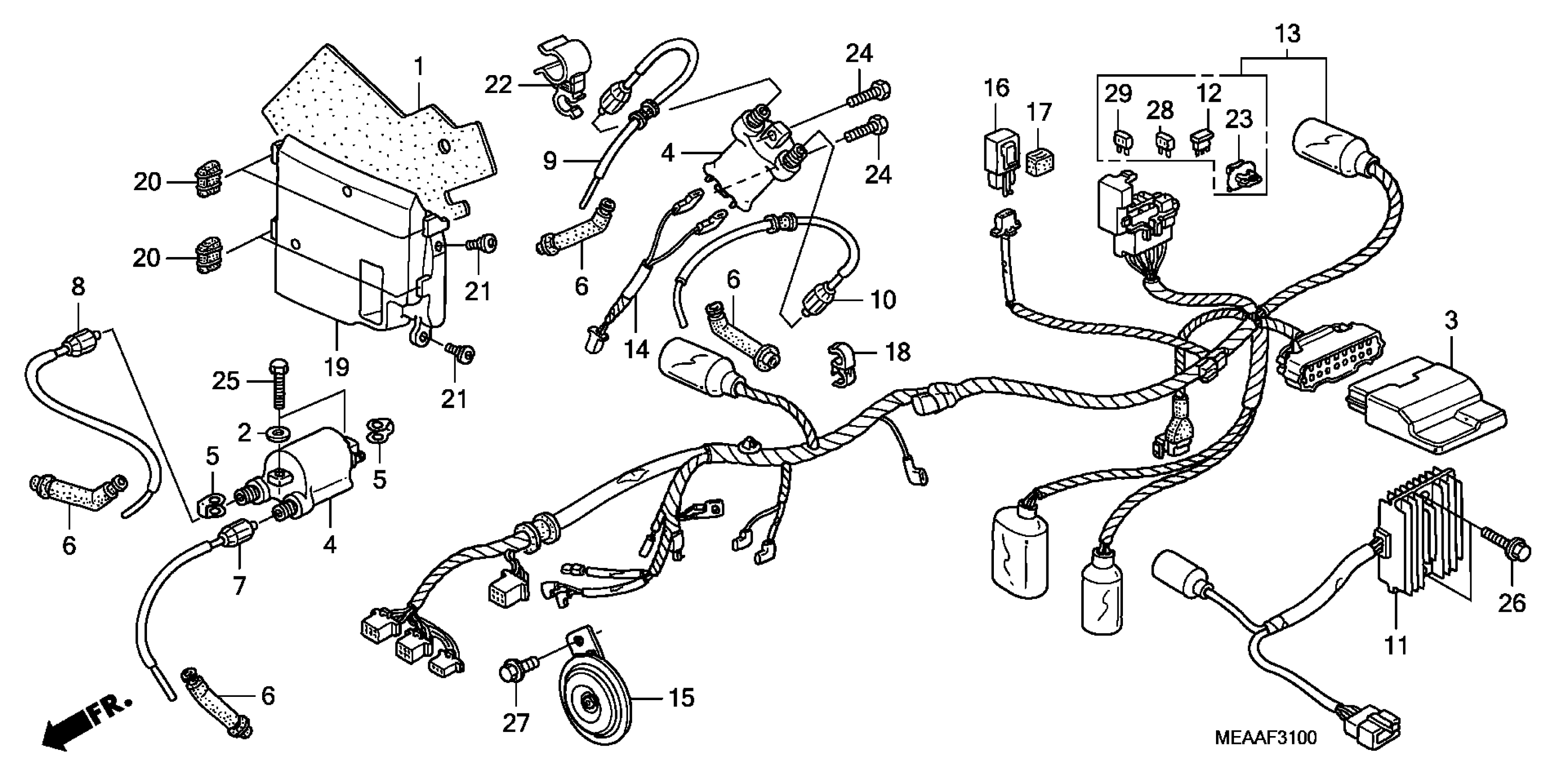

Honda VTX1300TA (08) VTX, USA, VIN# 1HFSC52T-8A500001 TO 1HFSC52T-8A599999 WIRE HARNESS Diagram

RUBBER, GUARD

16954-MEA-670

Unavailable

WASHER, PIVOT (Honda Code 0283556)

17936-921-000

$1.49

MODULE, IGNITION CONTROL (CDI)

30410-MEA-A51

Unavailable

COIL, IGNITION

30510-MCC-003

$89.93

SPACER, IGNITION COIL

30520-ML7-000

$3.77

CAP ASSY., NOISE SUPPRESSOR

30700-MEA-671

$27.01

WIRE, IGNITION (1)

30751-MEA-670

$19.30

WIRE, IGNITION (2)

30752-MEA-670

$18.18

WIRE, IGNITION (3)

30753-MEA-670

$19.11

WIRE, IGNITION (4)

30754-MEA-670

$21.90

RECTIFIER ASSY., REGULATOR

31600-MEA-741

$88.49

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-MEA-A50

Unavailable

SUB-HARNESS, IGNITION

32105-MEA-670

$4.18

HORN (LOW)

38120-MAH-003

$81.10

RELAY, TURN SIGNAL (DENSO)

38301-MBW-D21

$46.44

SUSPENSION, TURN SIGNAL RELAY (DENSO)

38306-GE8-008

$4.52

CLIP, SENSOR HOSE

53740-SE0-953

$3.28

COVER, CENTER

83500-MEA-670

$53.84

GROMMET, SIDE COVER

83551-MEA-670

$14.66

SCREW, PAN (6X11)

90106-KY2-701

$4.24

CLAMP, JOINT

90650-MEA-671

$2.92

CLIP, CONNECTOR (ORANGE)

91580-SM4-003

$6.67

BOLT, HEX. (6X20)

92101-06020-0H

$1.49

BOLT, HEX. (6X25)

92101-06025-4J

$1.49

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

BOLT, FLANGE (8X12)

95701-08012-07

$1.72

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (20A)

98200-42000

$1.49
