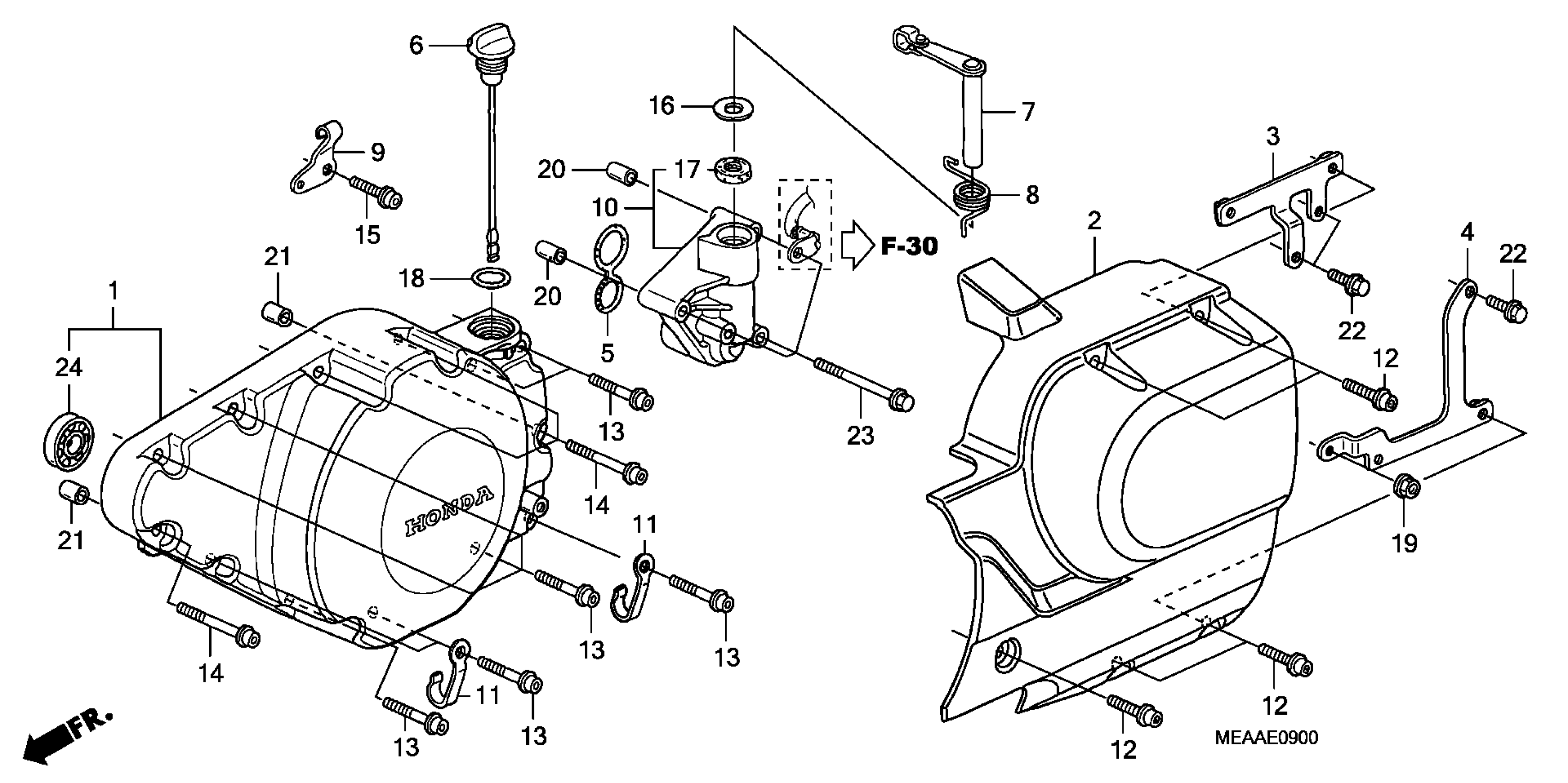

Honda VTX1300TA (08) VTX, USA, VIN# 1HFSC52T-8A500001 TO 1HFSC52T-8A599999 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE This part replaces 11360-MEA-670.

11360-MFR-670

$408.20

1

COVER, L. CRANKCASE

11360-MFR-670

$408.20

2

COVER, L. RR.

11370-MEA-670

$205.46

3

STAY A, L. RR. COVER

11380-MEA-671

$5.47

4

STAY B, L. RR. COVER

11390-MCH-000

Unavailable

5

SEAL, RUBBER

15152-HN2-000

$4.85

6

DIPSTICK, OIL

15650-MEA-670

$15.95

7

LEVER, CLUTCH

22710-MEA-670

$56.61

8

SPRING, CLUTCH LEVER

22815-MEA-670

$4.05

9

RECEIVER, CLUTCH CABLE

22821-MEA-670

$12.13

10

HOLDER, CLUTCH LIFTER

22860-MEA-670

$78.13

11

CLAMP, SWITCH WIRE

35211-443-760

$4.13

12

BOLT, SOCKET (6X22) (FRAME NO.)

90031-MCH-000

$2.15

13

BOLT, FLANGE SOCKET (6X32)

90032-MCH-000

$2.26

14

BOLT, FLANGE SOCKET (6X45)

90033-MCH-000

$2.57

15

BOLT, FLANGE SOCKET (6X18)

90034-MCH-000

$1.97

16

WASHER, PLAIN (14MM)

90559-MR8-000

$2.23

17

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-013.

91202-444-023

$3.78

17

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-015.

91202-444-023

$3.78

17

OIL SEAL (14X24X6) (ARAI)

91202-444-023

$3.78

18

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

18

O-RING (21.5X3.2)

91307-425-003

$2.59

19

NUT, FLANGE (6MM)

94050-06000

$1.49

20

PIN A, DOWEL (8X10)

94301-08100

$2.25

21

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

22

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

23

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

24

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
