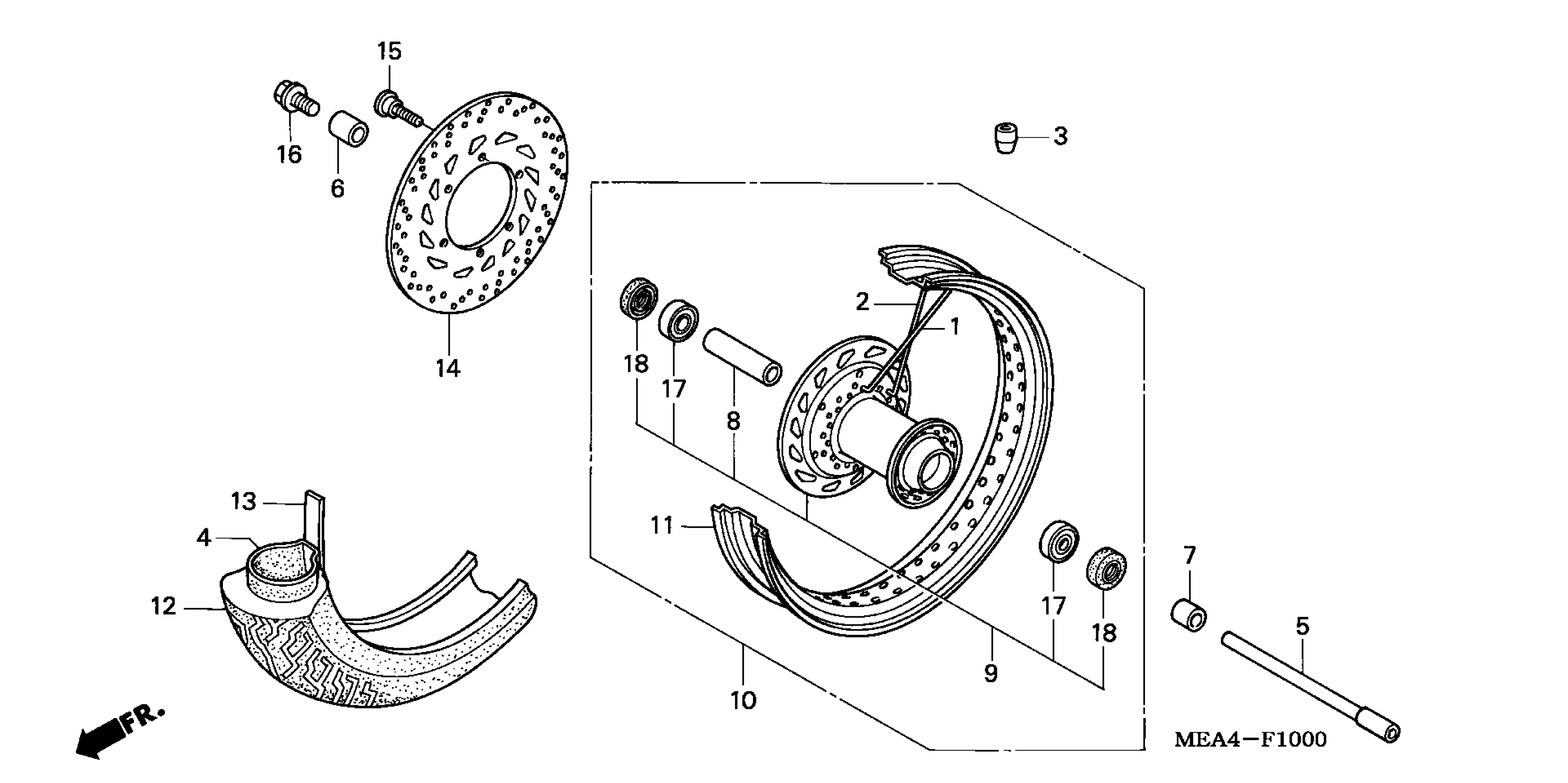

Honda VTX1300SAC (07) MOTORCYCLE, USA, VIN# 1HFSC521-7A400001 FRONT WHEEL (VTX1300S) Diagram

SPOKE SET A (INSIDE)

06440-MEA-670

$5.28

SPOKE SET B (OUTSIDE)

06441-MEA-670

$5.28

WEIGHT, BALANCE (15G)

42704-MEG-003

$8.08

WEIGHT, BALANCE (20G)

42705-MEG-003

$8.08

TUBE, TIRE (DUNLOP)

42712-MBH-004

$42.54

AXLE, FR. WHEEL

44301-MEA-670

$69.05

COLLAR, R. FR. WHEEL SIDE

44311-MEA-670

$20.77

COLLAR, L. FR. WHEEL SIDE

44312-MEA-670

$17.84

COLLAR, FR. AXLE DISTANCE (27X119)

44620-MZ0-010

$15.66

HUB SUB-ASSY., FR.

44635-MEA-670

Unavailable

WHEEL SUB-ASSY., FR.

44650-MEA-671

Unavailable

RIM, FR. WHEEL

44701-MEA-672

Unavailable

TIRE, FR. (140/80-17) (M/C 69H) (DUNLOP)

44711-MEA-671

Unavailable

FLAP, TIRE (DUNLOP)

44713-MAV-004

$6.60

DISK, R. FR. BRAKE

45251-MEA-671

$228.84

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

BOLT, FR. AXLE

90105-MBT-610

$5.76

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$32.14

DUST SEAL (30X52X7)

91253-442-003

$13.96
