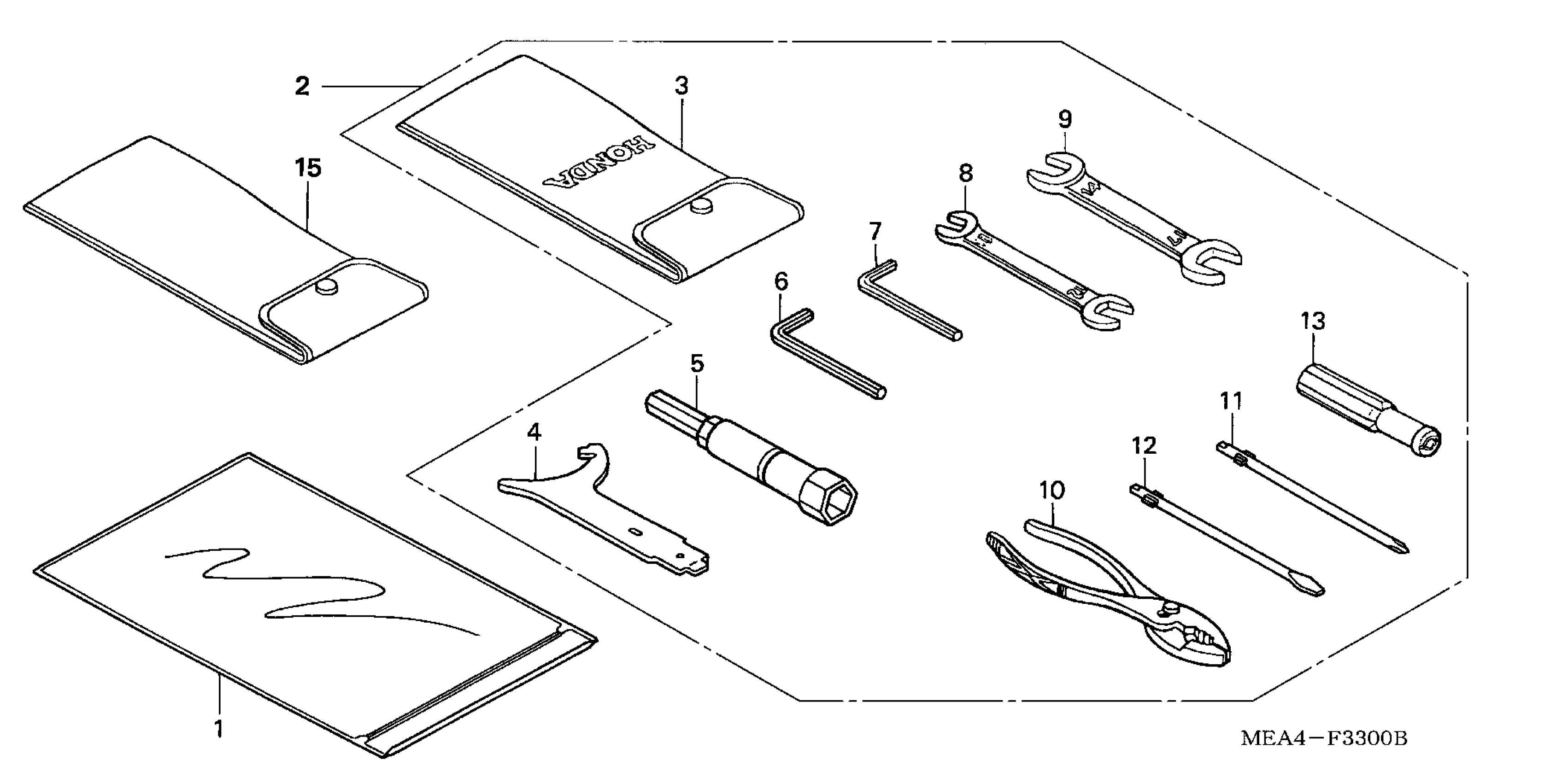

Honda VTX1300SA (07) MOTORCYCLE, USA, VIN# 1HFSC520-7A400001 TOOLS Diagram

BAG, SERVICE BOOK

77251-MAH-A40

$2.13

TOOL SET | (Optional).

89010-MEA-670

$56.55

BAG, TOOL | (Optional). This part replaces 89101-MC7-000.

89101-ME5-670

Unavailable

WRENCH, PIN (OPEN END) | (Optional).

89202-MT3-000

$10.34

WRENCH, BOX (P16) | (Optional).

89216-MEA-670

$12.89

WRENCH, HEX. (6MM)

89221-371-000

$4.28

WRENCH, HEX. (5MM)

89221-429-000

$3.90

WRENCH (10X12) (OPEN END) | (Optional).

99001-10120

$4.69

WRENCH (14X17) (OPEN END) | (Optional).

99001-14170

$7.49

PLIERS (135) (RIKEN) | (Optional).

89210-GBJ-J00

$8.85

PLIERS (135) (KOWA) | (Optional).

89210-GBJ-J10

$13.57

PLIERS (135) (KOWA) | (Optional). This part replaces 99002-13500.

89210-GBJ-J10

$13.57

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

SCREWDRIVER 3, STRAIGHT SLOT (NO.2) | (Optional).

99003-30000

$3.27

GRIP, SCREW DRIVER

99003-50000

$3.27

BAG, TOOL This part replaces 99008-02000.

89101-ME5-670

Unavailable
