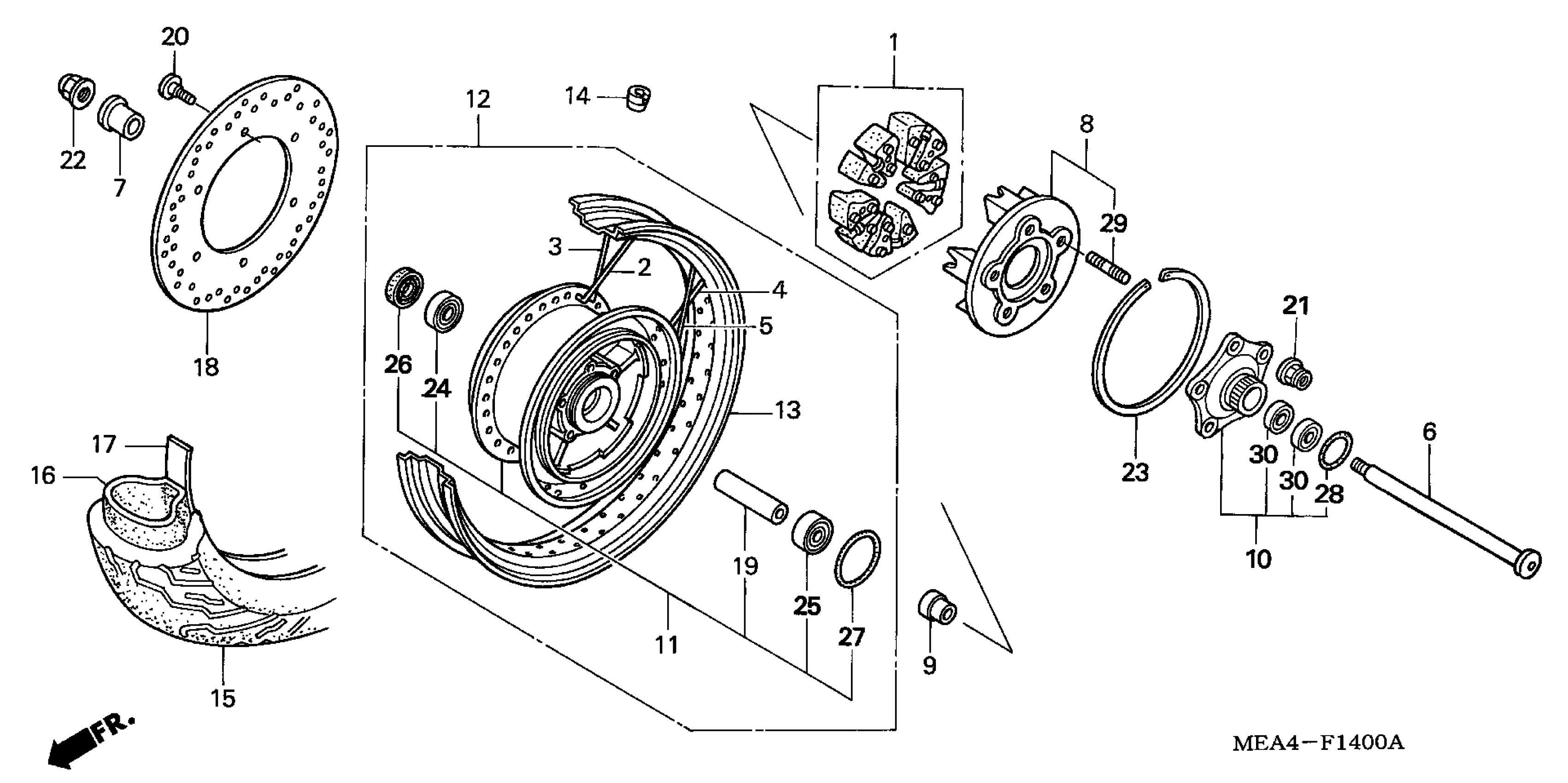

Honda VTX1300SA (07) MOTORCYCLE, USA, VIN# 1HFSC520-7A400001 REAR WHEEL (VTX1300S) Diagram

DAMPER SET, WHEEL

06410-MAZ-000

$58.81

SPOKE SET A, RR. (R. INSIDE)

06420-MCV-A10

$3.63

SPOKE SET B, RR. (R. OUTSIDE)

06421-MCV-A10

Unavailable

SPOKE SET C, RR. (L. INSIDE)

06422-MCV-A10

$4.23

SPOKE SET D, RR. (L. OUTSIDE)

06423-MCV-A10

Unavailable

AXLE, RR. WHEEL

42301-MEA-670

$24.28

COLLAR, RR. WHEEL

42312-MCH-000

Unavailable

FLANGE B, FINAL DRIVEN

42614-MCH-000

$251.03

COLLAR A, RR. AXLE DISTANCE

42624-MCH-000

$14.43

FLANGE SET, FINAL DRIVEN

42630-MCH-000

$292.02

HUB SUB-ASSY., RR.

42635-MCV-A10

$496.57

WHEEL SUB-ASSY., RR.

42650-MEA-671

Unavailable

RIM, RR. WHEEL

42701-MAH-013

$173.18

WEIGHT, BALANCE (15G)

42704-MEG-003

$8.08

WEIGHT, BALANCE (20G)

42705-MEG-003

$8.08

TIRE, RR. (170/80-15) (77H) (DUNLOP) This part replaces 42711-MCV-A11.

42711-MEM-671

Unavailable

TUBE, TIRE (DUNLOP)

42712-MR1-672

$41.43

FLAP, TIRE (45-15) (DUNLOP)

42713-MR1-672

$7.32

DISK, RR. BRAKE

43251-MEA-671

$158.75

COLLAR, FR. AXLE DISTANCE

44620-MAH-000

$20.36

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

$3.85

NUT, FLANGE (18MM)

90306-MCH-003

$13.13

CIRCLIP (INNER) (188)

90651-MCH-000

$17.70

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$32.14

BEARING, RADIAL BALL (20X47X20.6) (TOYO)

91053-MN5-003

$74.94

DUST SEAL (30X52X7)

91253-442-003

$13.96

O-RING (61X2)

91302-MA6-003

$5.17

O-RING (50.5X3.5) (ARAI)

91358-MG9-003

$3.76

O-RING (50.5X3.5) (ARAI) This part replaces 91358-MG9-004.

91358-MG9-003

$3.76

BOLT 2, STUD (12X32)

92900-12032-0E

$2.92

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$17.35
