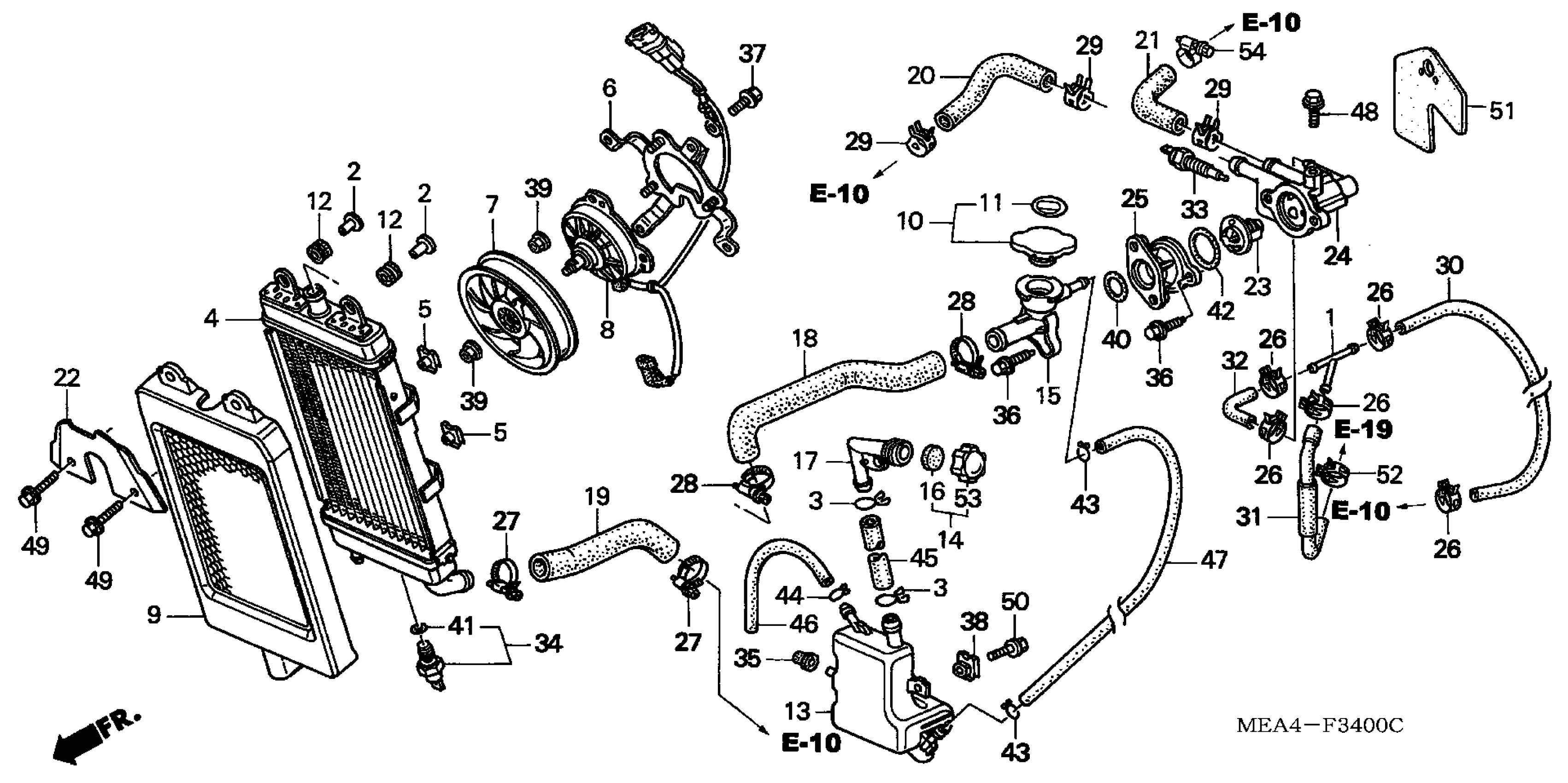

Honda VTX1300SA (07) MOTORCYCLE, USA, VIN# 1HFSC520-7A400001 RADIATOR Diagram

#

Description
Price

1

JOINT, FUEL TUBE

16959-MY1-000

$17.77

2

COLLAR, AIR CLEANER SETTING

17216-HA7-670

$6.16

3

CLIP A, BREATHER TUBE

17316-MN1-670

$2.33

4

RADIATOR

19010-MEA-671

$200.35

5

NUT, SETTING (6MM)

19014-KEA-003

$3.10

6

SHROUD

19015-MEA-A21

$21.98

7

FAN, COOLING

19020-MCH-A11

$18.02

8

MOTOR ASSY., FAN

19030-MEA-A22

$110.10

9

GRILLE, RADIATOR

19032-MEA-670

$28.51

10

CAP, RADIATOR

19037-GEE-710

$30.28

11

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

12

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

13

TANK, RADIATOR RESERVE

19101-MEA-670

$23.26

14

CAP ASSY., RESERVE TANK

19105-MG8-000

$12.95

15

NECK ASSY., FILLER

19106-MCH-003

$61.74

16

GASKET, RESERVE TANK

19107-MG8-000

$5.05

17

NECK, RESERVE TANK FILLER

19111-MR1-000

Unavailable

18

HOSE, RADIATOR (UPPER)

19116-MEA-670

$5.28

19

HOSE, RADIATOR (LOWER)

19117-MEA-670

$5.72

20

HOSE, FR. OUTLET WATER

19118-MEA-670

$3.48

21

HOSE, RR. OUTLET WATER

19119-MEA-670

$4.03

22

GUARD, RADIATOR

19124-MEA-670

$131.15

23

THERMOSTAT

19300-MCZ-003

$61.82

24

CASE, THERMOSTAT

19311-MEA-305

Unavailable

25

COVER, THERMOSTAT

19313-MCH-315

$28.08

26

CLAMP, TUBE (D12) (FRAME NO.)

91405-PD1-004

$9.24

27

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$13.58

28

CLAMP, HOSE (30-37MM)

19516-GAG-003

$14.40

29

CLIP, WATER HOSE

19517-KM9-000

$8.28

30

HOSE A, WATER

19531-MEA-670

Unavailable

31

HOSE, WATER RETURN

19533-MEM-670

Unavailable

32

HOSE B, WATER

19534-MEA-670

Unavailable

33

SWITCH ASSY., THERMO

37760-MAV-003

$65.07

34

SWITCH ASSY., THERMO

37760-MR1-003

$71.91

34

SWITCH ASSY., THERMO This part replaces 37760-MT2-003.

37760-MR1-003

$71.91

35

RUBBER, TURN SIGNAL MOUNTING

80126-MM5-000

$5.43

36

BOLT, FLANGE (6X16) (CT200)

90029-888-000

$2.25

37

BOLT-WASHER (6X16)

90120-KCR-003

$4.39

38

NUT, CLIP (6MM)

90305-GK8-000

$2.39

39

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

40

O-RING (26.9X2.4) (NOK) (Honda Code 1767177)

91302-PF0-003

$2.92

40

O-RING (26.9X2.4) (NOK) This part replaces 91304-KG8-000.

91302-PF0-003

$2.92

40

O-RING (26.9X2.4) (NOK) This part replaces 91304-KG8-003.

91302-PF0-003

$2.92

41

O-RING (13.5X1.4)

91307-PH7-660

$2.83

41

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

42

O-RING (47.5X2)

91311-KE8-000

$2.39

43

CLIP, TUBE (B12)

95002-02120

$2.00

44

CLIP, TUBE (C11)

95002-70000

$1.56

45

BULK HOSE, VACUUM (14X1000) (14X100) (BULK HOSE: 95005-14001-30M)

95005-14001-30M

$22.48

46

BULK HOSE, VACUUM (7X3000) (7X730)

95005-70003-30M

$23.45

47

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

48

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

49

BOLT, FLANGE (6X30)

95701-06030-07

$1.89

50

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

50

BOLT, FLANGE (6X16) This part replaces 95801-06016-08.

95701-06016-08

$1.49

51

RUBBER, HEAT GUARD

19126-MEM-670

$3.48

52

CLAMP, TUBE (D10.3)

90601-MEA-670

$4.15

53

CAP, RESERVE TANK

19104-ME9-000

$16.36

54

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62
