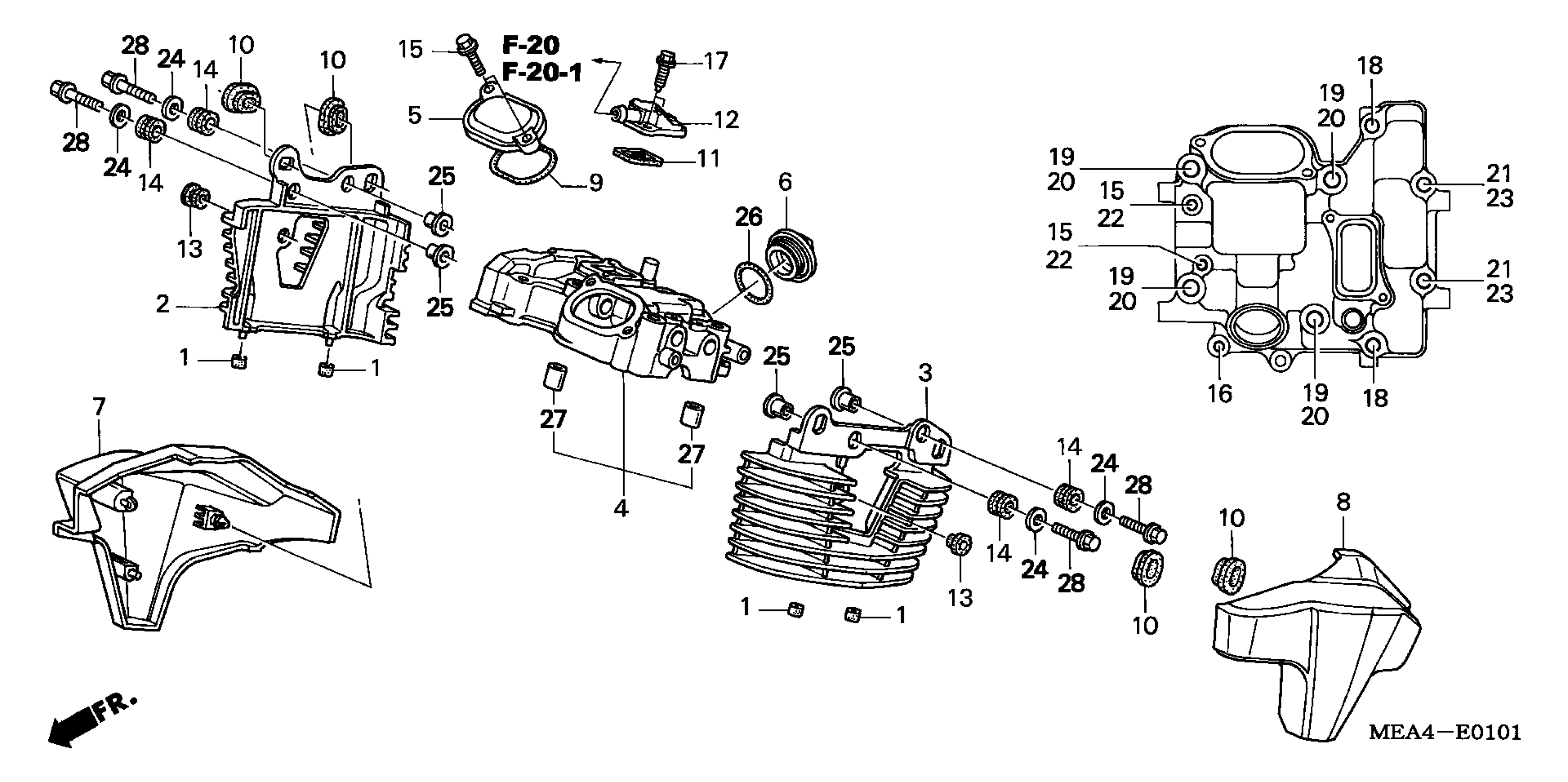

Honda VTX1300SA (07) MOTORCYCLE, USA, VIN# 1HFSC520-7A400001 CYLINDER HEAD COVER (RR.) Diagram

#

Description
Price

1

RUBBER, BUSHING (DENSO)

19041-611-003

$44.05

2

FIN, CYLINDER HEAD (RR. R.)

12281-MEA-670

$191.26

3

FIN, CYLINDER HEAD (RR. L.)

12291-MEA-670

$187.30

4

COVER, RR. CYLINDER HEAD

12320-MEA-670

$303.23

5

COVER, IN. TAPPET ADJUSTING HOLE

12341-MEA-670

$15.89

6

CAP, TAPPET ADJUSTING HOLE

12361-383-000

$6.43

7

COVER, R. RR. OVER HEAD

12381-MEA-670

$84.32

8

COVER, L. RR. OVER HEAD

12391-MEA-670

$101.10

9

GASKET, TAPPET COVER (KOYO)

12392-HC4-005

$3.92

10

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

11

VALVE, REED

18601-MCH-003

$27.09

12

COVER, REED VALVE

18612-MCH-000

$21.23

13

GROMMET, SIDE COVER (16MM ATTACHES PROTECTOR SET, SIDE TO COVER, PILLION STEP)

83501-MG7-000

$2.61

14

RUBBER, CUSHION

17622-GB7-900

$4.78

15

BOLT, FLANGE (6X20) (NSHF)

90004-GHB-650

$1.95

16

BOLT, FLANGE (6X25) (NSHF)

90006-GHB-670

$1.80

17

BOLT, FLANGE (5X14)

90012-896-750

$1.49

18

BOLT, FLANGE (8X150)

90015-MG8-000

$6.07

19

NUT, FLANGE CAP (10MM)

90201-HA0-000

$6.45

19

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$6.45

20

WASHER (10MM) This part replaces 90403-ML4-610.

90403-ML4-611

$6.21

21

WASHER, SEALING (8MM)

90441-ME9-000

$2.61

22

WASHER, SEALING (6MM)

90441-706-000

$1.49

23

NUT, CAP (8MM)

90443-107-000

$2.89

24

WASHER (18MM) This part replaces 90482-567-000.

90581-831-650

$1.87

24

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

24

WASHER (18MM)

90581-831-650

$1.87

25

COLLAR, HEAD SIDE COVER

90502-KGB-610

$2.11

26

O-RING (35X3) (ARAI) SEAL, VALVE STEM (NOK)

91303-KK3-830

$2.92

27

PIN A, DOWEL (14X20)

94301-14200

$2.28

28

BOLT, FLANGE (6X25) BOLT, FLANGE (6X16)

95701-06025-08

$1.72
