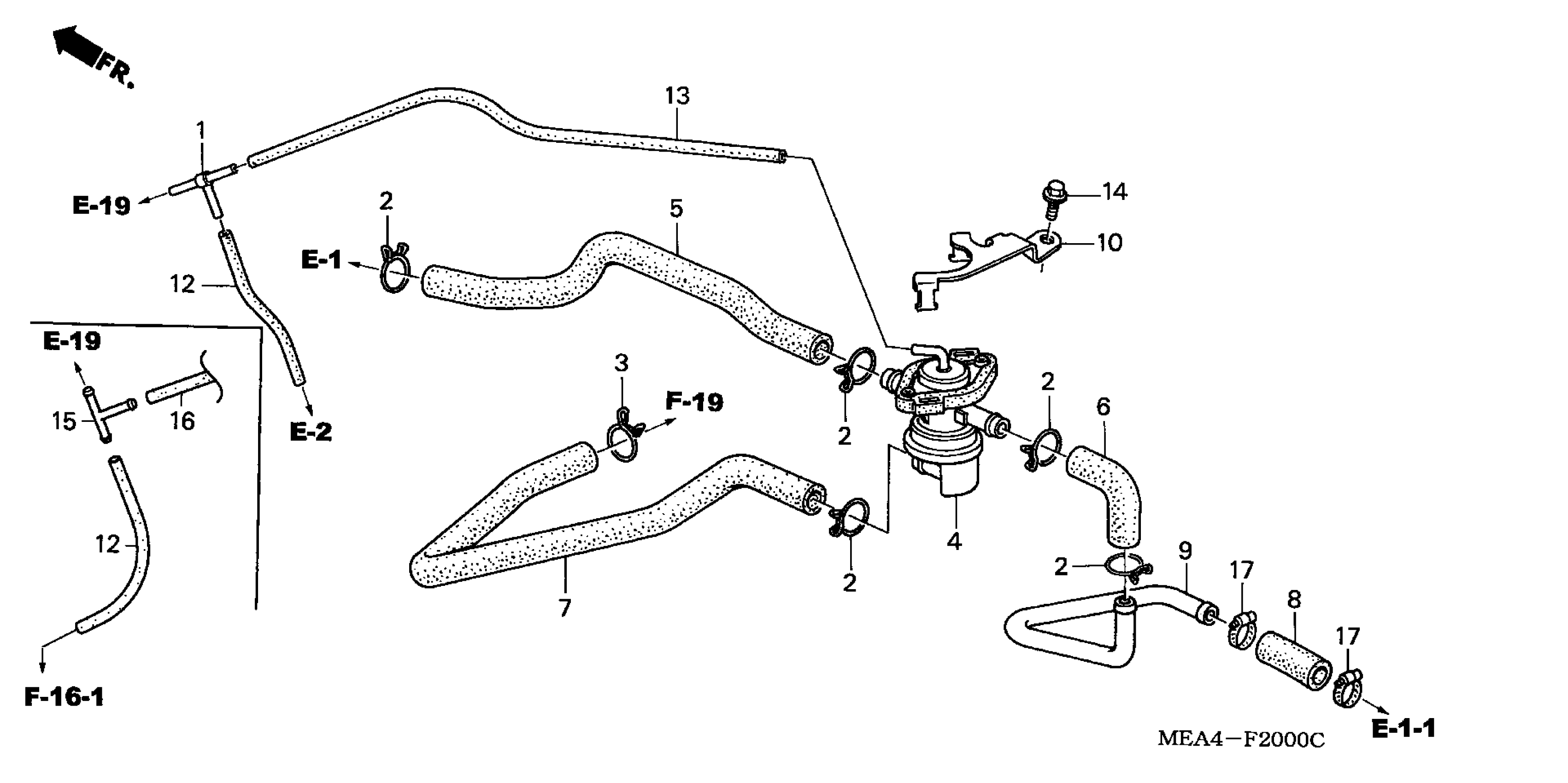

Honda VTX1300SA (07) MOTORCYCLE, USA, VIN# 1HFSC520-7A400001 AIR INJECTION CONTROL VALVE (A) Diagram

CLIP, OIL DRAIN TUBE

17316-611-000

$9.23

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

VALVE ASSY., AIR INJECTION CONTROL

18650-MEA-672

Unavailable

TUBE A (AI)

18651-MEA-670

Unavailable

TUBE B (AI)

18652-MEA-670

$3.92

TUBE C (AI)

18653-MEA-670

$10.33

TUBE D (AI)

18654-MEA-670

Unavailable

PIPE (AI)

18655-MEA-A00

Unavailable

STAY, AIR INJECTION CONTROL VALVE

18660-MEA-670

Unavailable

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

BOLT, FLANGE (6X18)

95701-06018-08

$1.62

JOINT, VACUUM TUBE (A)

17201-MG9-000

$15.94

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$10.29

CLAMP, WATER HOSE (25MM) This part replaces 19507-KA3-830.

19504-KY1-003

$10.29
