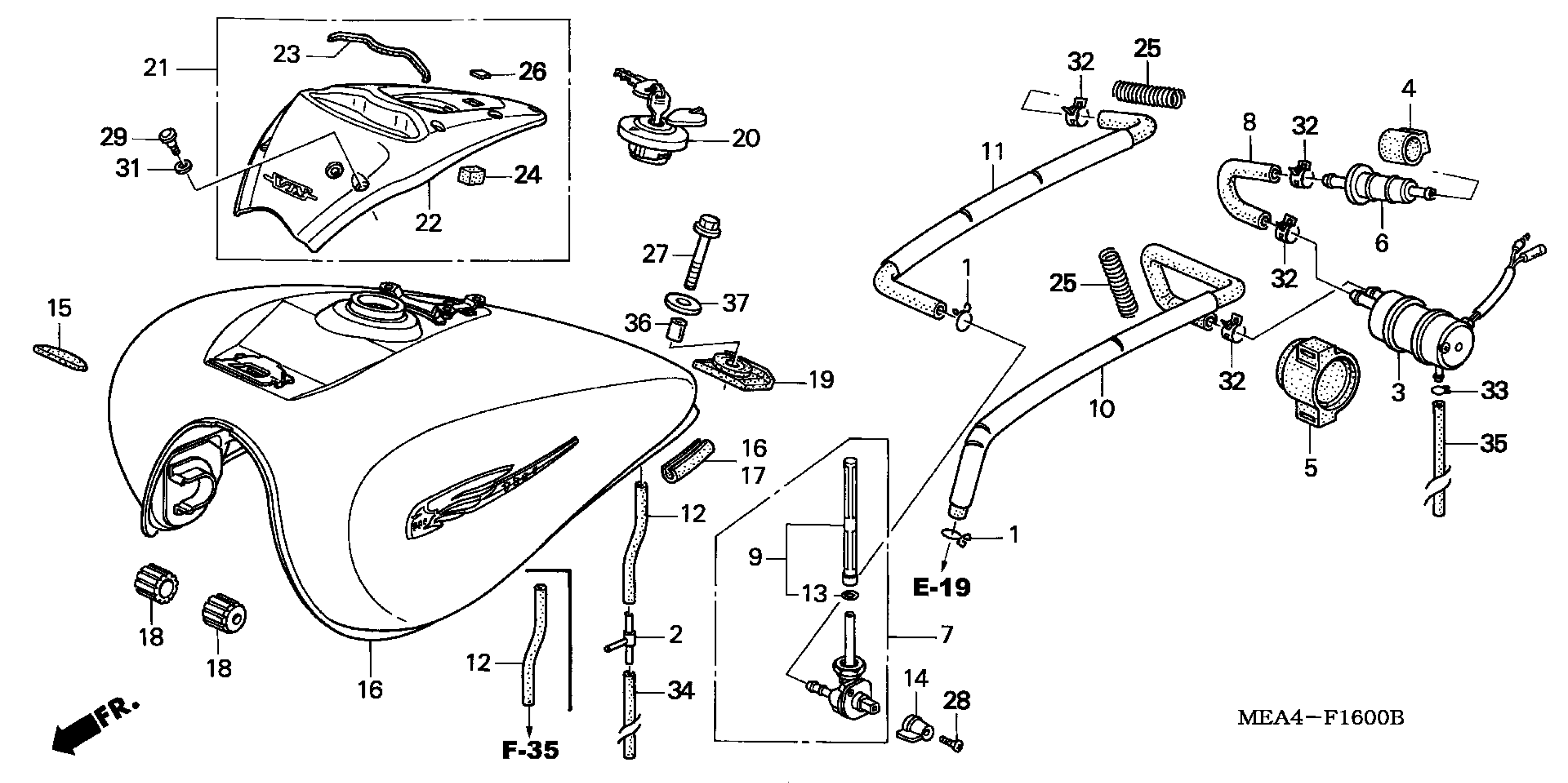

Honda VTX1300SA (03) MOTORCYCLE, USA, VIN# 1HFSC520-3A000001 TO 1HFSC520-3A099999 FUEL TANK (VTX1300S'03) Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.72

2

JOINT (T-TYPE)

16180-195-731

$12.95

3

PUMP, FUEL This part replaces 16710-MEA-671.

16710-MEA-672

Unavailable

4

HOLDER, STRAINER

16711-MF2-000

$17.60

5

RUBBER, FUEL PUMP MOUNTING

16711-MN8-000

Unavailable

6

FILTER, FUEL

16900-MG8-003

$23.49

7

PETCOCK ASSY.

16950-MEA-672

$99.02

8

TUBE A, FUEL

16951-MEA-670

Unavailable

9

SCREEN SET, FUEL STRAINER

16952-MAZ-003

$23.32

10

TUBE B, FUEL

16952-MEA-670

Unavailable

11

TUBE C, FUEL

16953-MEA-670

Unavailable

12

TUBE (3.5X300)

16956-MEA-670

$2.92

13

O-RING (14.2X1.3)

16958-KM9-005

$3.89

14

LEVER, PETCOCK

16963-MY5-610

$14.29

15

RUBBER, FR. FUEL TANK

17511-KGB-610

$4.35

16

TANK SET, FUEL *NH1* (WL) (BLACK)

17520-MEA-671ZA

Unavailable

16

TANK SET, FUEL *P44P* (WL) (PEARL CHROMIUM PURPLE)

17520-MEA-671ZC

Unavailable

16

TANK SET, FUEL *R274M* (WL) (DURANGO RED METALLIC)

17520-MEA-671ZE

Unavailable

16

TANK SET, FUEL *YR232P* (WL) (PEARL SUNBURST ORANGE)

17520-MEA-671ZF

Unavailable

17

TRIM, FUEL TANK

17523-MEA-670

$2.92

18

CUSHION, FR. FUEL TANK

17611-MCH-000

$30.52

19

CUSHION, RR. FUEL TANK

17613-KY1-000

$11.67

20

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$70.93

20

CAP, FUEL FILLER This part replaces 17620-KR3-752.

17620-KR3-753

$70.93

20

CAP, FUEL FILLER

17620-KR3-753

$70.93

21

COVER SET, FR. TOP (TYPE1) (WL)

17620-MEA-670ZA

$92.33

22

COVER, FR. TOP

17621-MEA-670

$47.96

23

SEAL, FR. TOP COVER

17622-MEA-670

$5.90

24

CUSHION, FR. TOP COVER

17624-MEA-670

$2.49

25

WIRE, GUARD

17672-MY1-000

$6.93

26

EMBLEM, PRODUCT (MARUI) This part replaces 86150-KPG-900.

86150-KPG-901

$3.62

26

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

27

BOLT, FLANGE (8X39)

90021-MEA-670

$1.49

28

SCREW, OVAL (5X12)

90111-MZ5-000

$3.85

29

SCREW, SPECIAL (5X10.5)

90114-MCH-000

$2.92

31

WASHER, TOP COVER SETTING

90508-MCH-000

$2.28

32

CLAMP, CANISTER HOSE

90682-SA0-671

$7.67

33

CLIP, TUBE (C9)

95002-50000

$1.49

34

BULK HOSE, VACUUM (4.5X1000) (4.5X160) (BULK HOSE: (95005-45008-10M)

95005-45001-10M

$23.47

35

BULK HOSE, VACUUM (5X3000) (5X180)

95005-50003-30M

$20.85

36

COLLAR, FUEL TANK MOUNTING

17515-MAH-000

$2.95

37

WASHER (8.5X28)

90534-MV4-000

$2.89
