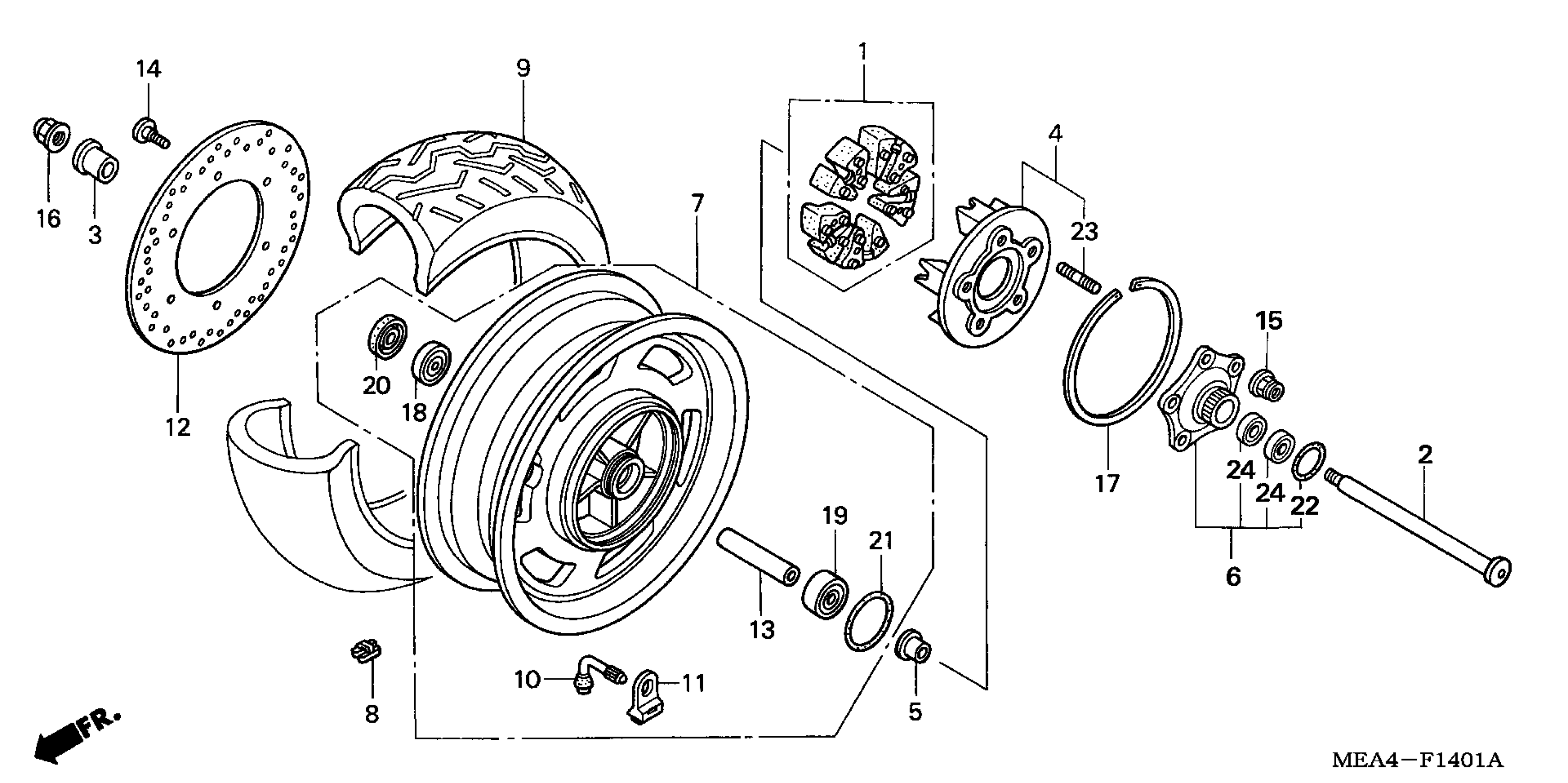

Honda VTX1300RAC (07) MOTORCYCLE, USA, VIN# 1HFSC527-7A400001 REAR WHEEL (VTX1300R) Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MAZ-000

$58.81

2

AXLE, RR. WHEEL

42301-MEA-670

$24.28

3

COLLAR, RR. WHEEL

42312-MCH-000

Unavailable

4

FLANGE B, FINAL DRIVEN

42614-MCH-000

$251.03

5

COLLAR A, RR. AXLE DISTANCE

42624-MCH-000

$14.43

6

FLANGE SET, FINAL DRIVEN

42630-MCH-000

$292.02

7

WHEEL SUB-ASSY., RR.

42650-MEA-910

Unavailable

8

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.61

8

WEIGHT, BALANCE (20G)

42705-MER-D00

$17.93

8

WEIGHT, BALANCE (30G)

42706-MER-D00

$17.67

9

TIRE, RR. (170/80-15) (77H) (DUNLOP)

42711-MEM-671

Unavailable

10

VALVE, RIM (DUNLOP)

42753-MN5-004

$16.38

11

HOLDER, RIM VALVE

42754-MN5-000

$5.12

12

DISK, RR. BRAKE

43251-MEA-671

$158.75

13

COLLAR, FR. AXLE DISTANCE

44620-MAH-000

$20.36

14

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

14

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

15

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

$3.85

16

NUT, FLANGE (18MM)

90306-MCH-003

$13.13

17

CIRCLIP (INNER) (188)

90651-MCH-000

$17.70

18

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$32.14

19

BEARING, RADIAL BALL (20X47X20.6) (TOYO)

91053-MN5-003

$74.94

20

DUST SEAL (30X52X7)

91253-442-003

$13.96

21

O-RING (61X2)

91302-MA6-003

$5.17

22

O-RING (50.5X3.5) (ARAI)

91358-MG9-003

$3.76

22

O-RING (50.5X3.5) (ARAI) This part replaces 91358-MG9-004.

91358-MG9-003

$3.76

23

BOLT 2, STUD (12X32)

92900-12032-0E

$2.92

24

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$17.35
