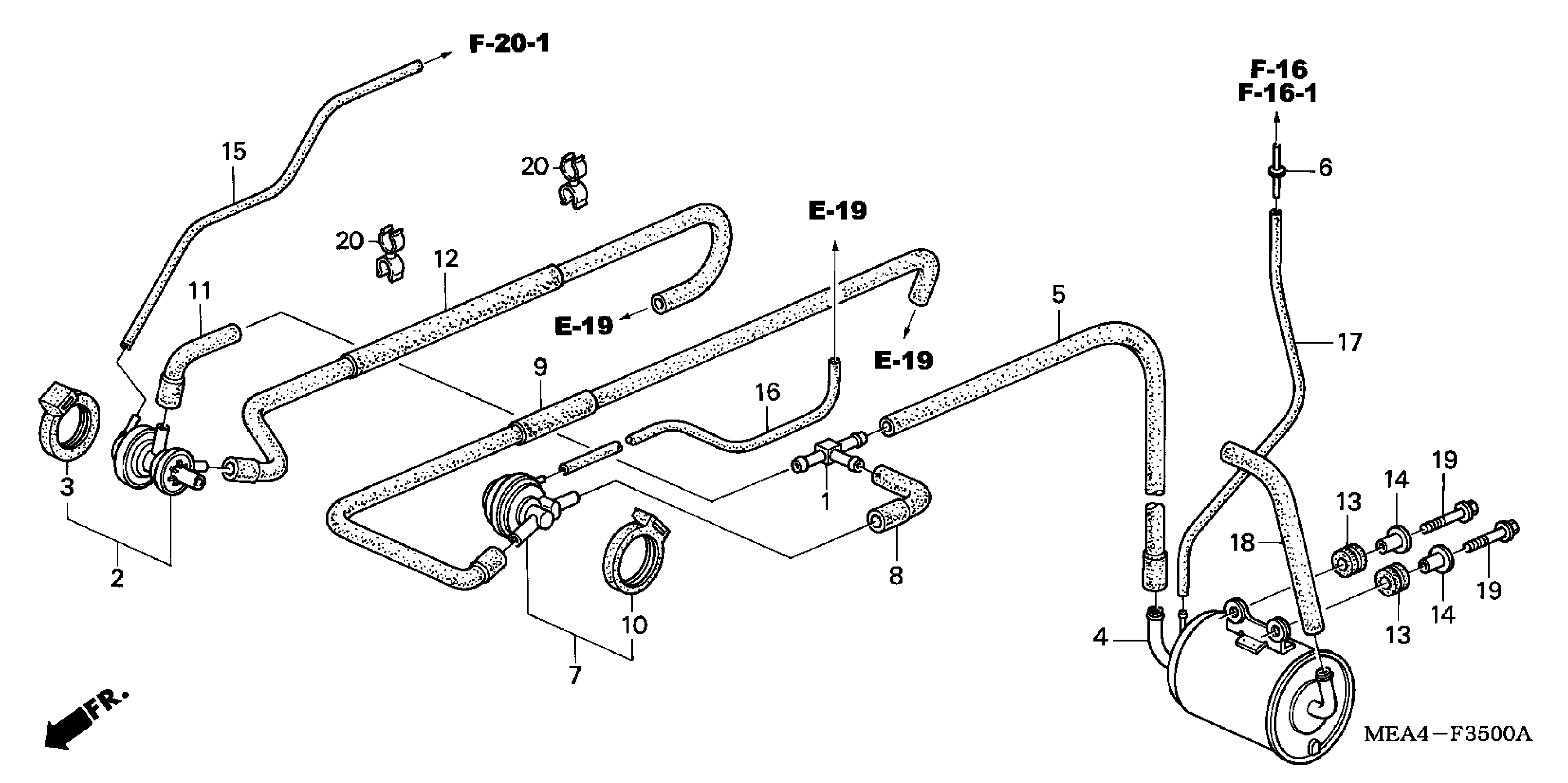

Honda VTX1300RAC (06) MOTORCYCLE, USA, VIN# 1HFSC527-6A300001 TO 1HFSC527-6A399999 EVAP CANISTER (AC) Diagram

T-JOINT

17195-MN5-000

$9.54

VALVE ASSY., AIR VENT CONTROL

17300-MEA-771

$248.82

RUBBER, MOUNTING

17305-MJ4-771

$12.46

CANISTER

17410-MCH-771

$309.48

TUBE, CANISTER

17412-MEA-770

$8.61

JOINT (3.5) (TWO-WAY)

17414-PC6-660

$6.45

VALVE, PURGE CONTROL

17440-MEA-770

$68.70

TUBE A, PURGE CONTROL VALVE

17441-MEA-770

$3.92

TUBE B, PURGE CONTROL VALVE

17442-MEA-770

$8.66

RUBBER, PURGE CONTROL VALVE MOUNTING

17451-ME5-760

$12.90

TUBE A, AIR VENT CONTROL VALVE

17460-MEA-770

$3.74

TUBE B, AIR VENT CONTROL VALVE

17461-MEA-770

$5.77

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.47

COLLAR (6.2X12)

90501-425-000

$4.69

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$23.91

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

CLIP, TUBE

17450-KY7-740

$2.83
