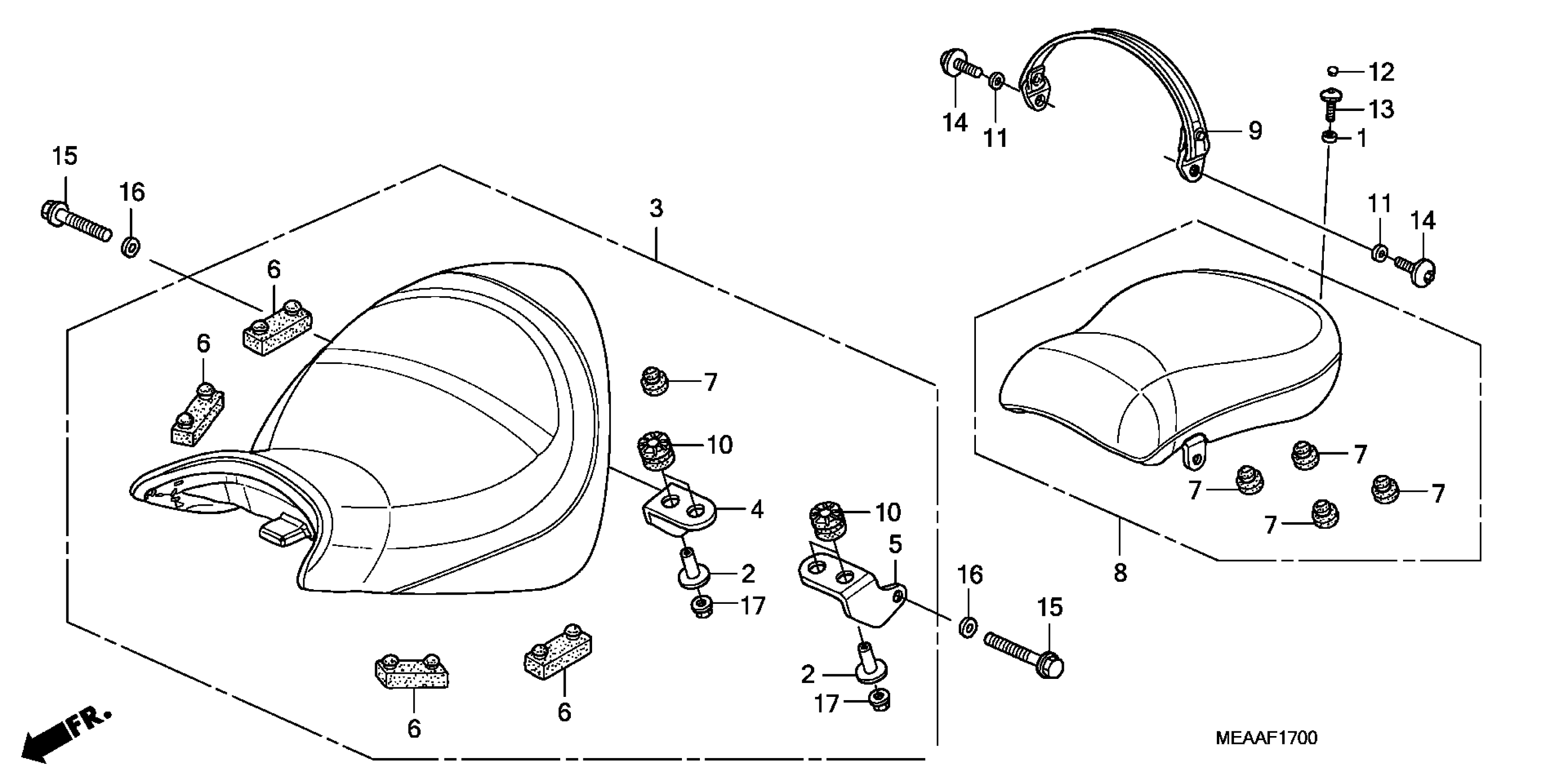

Honda VTX1300RA (09) VTX, USA, VIN# 1HFSC526-9A600001 SEAT Diagram

COLLAR, METER SETTING

37243-307-670

$2.25

COLLAR, SETTING

61104-422-000

$6.60

SEAT ASSY., MAIN

77200-MEA-670

Unavailable

STAY, R. MAIN SEAT

77202-MEA-670

$12.74

STAY, L. MAIN SEAT

77203-MEA-670

$12.74

RUBBER B, SEAT SETTING

77205-286-000

$5.04

RUBBER B, SEAT STOPPER

77215-GC2-000

$4.83

SEAT ASSY., RR.

77300-MEA-670

$554.21

SEAT BELT

77310-MEA-670

$49.47

RUBBER, RR. FENDER MOUNTING

80106-382-770

$4.08

COLLAR A, RR. FENDER

80126-GC5-000

$3.17

PLUG, HEX. (5MM)

90005-MAH-000

Unavailable

BOLT, SPECIAL (6X18)

90021-MZ1-000

$4.10

BOLT, SOCKET (8X17)

90103-MY9-000

$2.10

BOLT, SPECIAL FLANGE (8X25)

90123-MM2-000

$3.86

WASHER, PLAIN (8MM)

90501-MM8-610

$2.25

NUT, FLANGE (6MM)

94050-06080

$0.60
