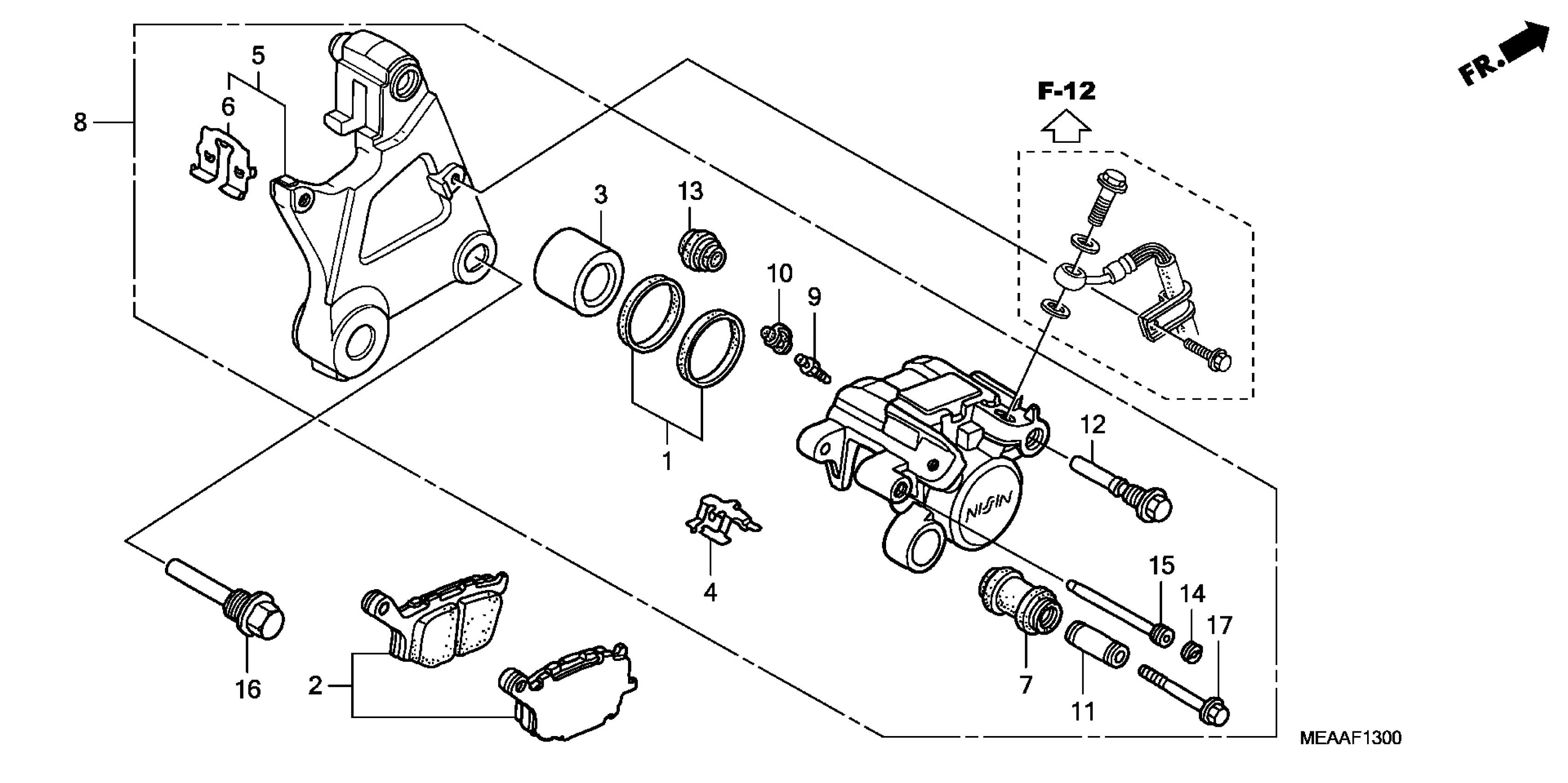

Honda VTX1300RA (09) VTX, USA, VIN# 1HFSC526-9A600001 REAR BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06451-443-405

$13.23

PAD SET, RR. This part replaces 43105-MW0-415.

43105-MW0-425

$53.45

PISTON

43107-KT7-761

$37.87

SPRING, PAD

43108-KT7-761

$8.68

BRACKET, RR.

43110-MEA-672

Unavailable

RETAINER

43112-MV9-016

$10.65

BOOT, SLEEVE

43132-KT7-761

$8.52

CALIPER SUB-ASSY., RR.

43150-MEA-672

$138.12

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.22

CAP, BLEEDER

43353-461-771

$5.05

SLEEVE

45111-MA3-006

$13.38

BOLT, PIN

45131-MN9-006

$15.97

BOOT B

45133-MA3-006

$5.46

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER (NISSIN)

45215-ML7-922

$10.67

BOLT, BRAKE STOPPER

90158-MZ0-000

$26.18

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07
