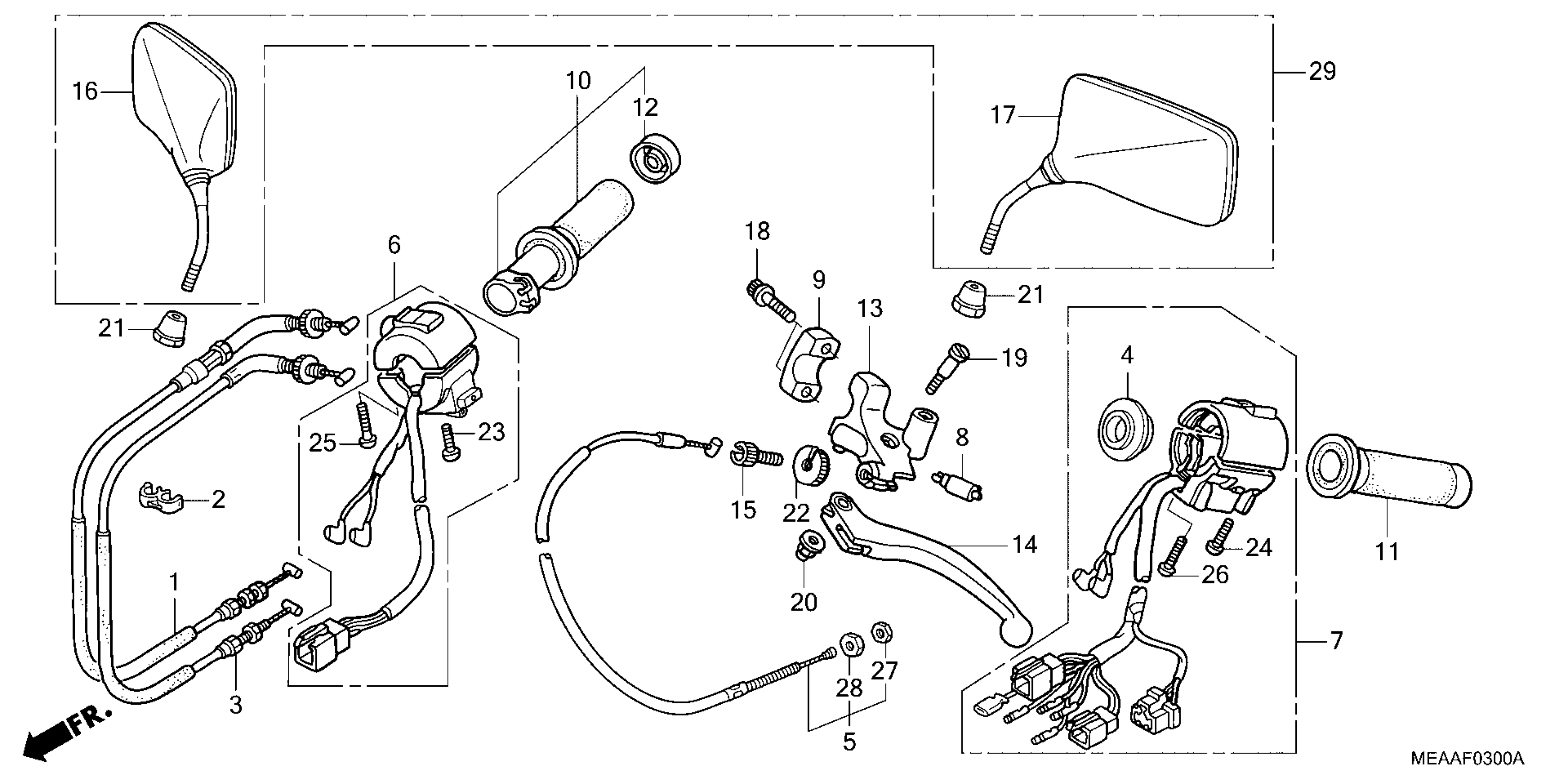

Honda VTX1300RA (09) VTX, USA, VIN# 1HFSC526-9A600001 HANDLE SWITCH Diagram

CABLE A, THROTTLE

17910-MEA-A50

$15.72

CLIP, THROTTLE WIRE

17915-SA7-981

$3.01

CABLE B, THROTTLE

17920-MEA-A50

$15.97

ADAPTER

17962-MR1-000

$19.30

CABLE, CLUTCH

22870-MEA-A50

$13.89

SWITCH, STARTER STOP This part replaces 35013-MEA-671.

35013-MEA-672

$106.96

SWITCH, STARTER STOP

35013-MEA-672

$106.96

SWITCH SET, TURN SIGNAL

35020-MEA-670

$122.40

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$21.91

HOLDER, MASTER CYLINDER (NISSIN)

45517-MEG-006

$9.80

GRIP ASSY., R.

53145-MM8-000

$43.84

GRIP, L. HANDLE

53166-KCR-000

$36.92

CAP, GRIP END

53167-MM8-000

$9.37

BRACKET, HANDLE LEVER

53172-MEG-000

$31.75

LEVER, L. HANDLE

53178-MAH-000

$19.50

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

MIRROR, R.

88210-MEA-670

Unavailable

MIRROR, L.

88220-MEA-670

Unavailable

BOLT, SOCKET (6X22)

90101-MCL-000

$1.49

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

NUT, CAP (6MM)

90201-415-000

$2.05

NUT, LOCK

90314-375-000

$12.55

NUT, FIXING

90321-MA6-750

$10.45

SCREW, PAN (5X20)

93500-05020-0A

$1.49

SCREW, PAN (5X22)

93500-05022-0A

$1.49

SCREW, PAN (5X25) SCREW, PAN (5X32)

93500-05025-0A

$1.49

SCREW, PAN (5X32)

93500-05032-0A

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

NUT, HEX. (8MM) NUT, FLANGE (10MM)

94031-08000

$1.49

MIRROR SET

88100-MEA-305

$69.41
