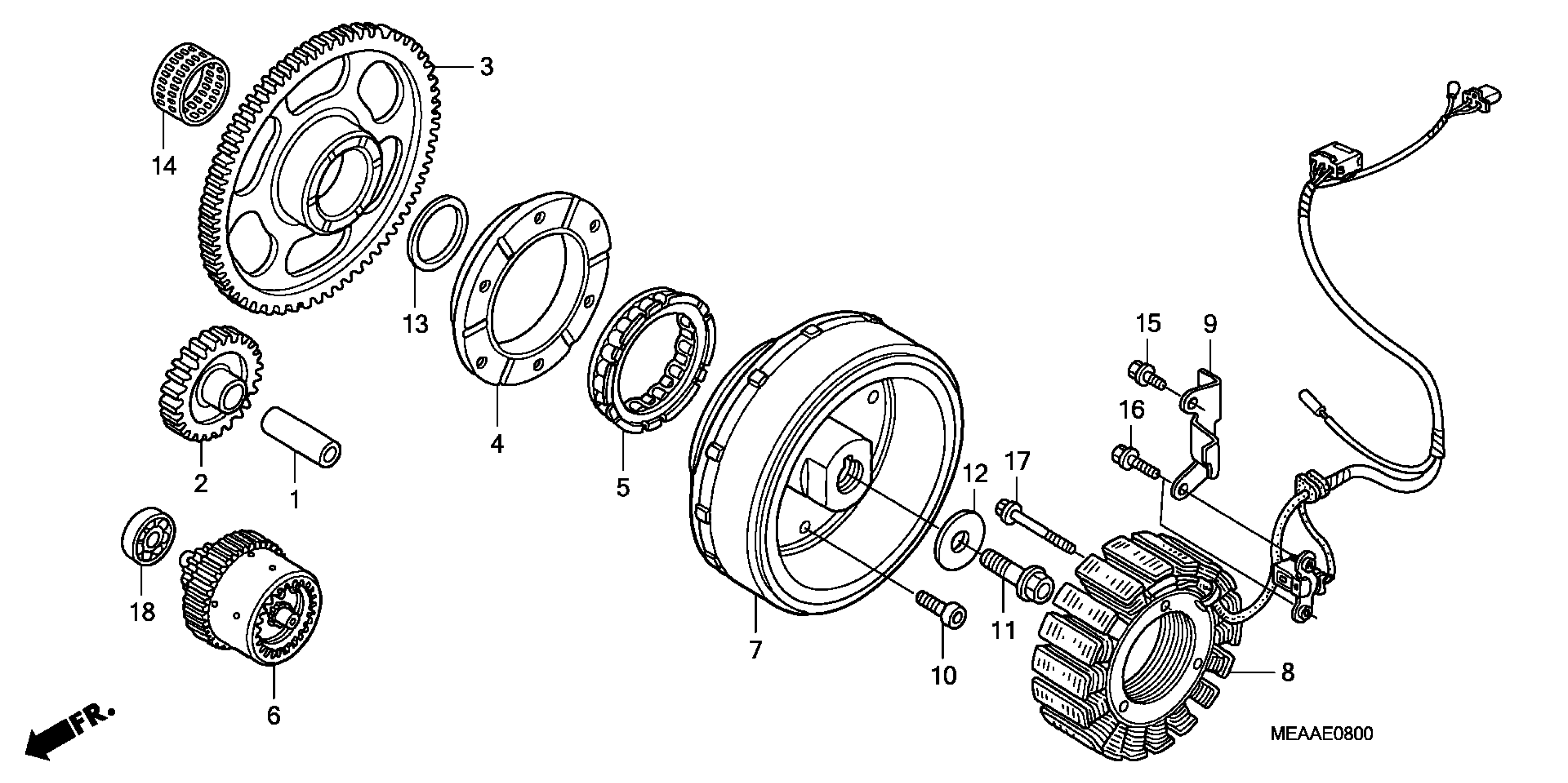

Honda VTX1300RA (09) VTX, USA, VIN# 1HFSC526-9A600001 GENERATOR Diagram

Description

Price

PIN, PISTON

13111-KE6-830

$13.12

GEAR, STARTER REDUCTION (27T)

28101-MCH-000

$67.78

GEAR, STARTING DRIVEN (76T)

28110-MCH-000

$158.22

CLUTCH OUTER, STARTING

28121-MAH-000

$125.84

CLUTCH, ONE-WAY

28126-MK5-004

$87.77

LIMITER ASSY., TORQUE

28140-MCH-000

$309.90

FLYWHEEL

31110-MEA-671

Unavailable

STATOR

31120-MEA-741

$442.24

CLAMP, ALTERNATOR WIRE

32961-MEA-670

$1.19

BOLT, SOCKET (8MM)

90010-MCH-000

$2.50

BOLT, FLANGE (12X45)

90023-MBT-010

$6.50

WASHER (12.2X40X5)

90402-MBA-A40

$5.19

WASHER, THRUST (34MM)

90451-383-000

$8.21

BEARING, NEEDLE (34X44X24)

91021-MCH-003

$28.71

BOLT, FLANGE (6X12)

96001-06012-00

$1.66

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

BOLT, FLANGE (6X45)

96001-06045-00

$1.81

BEARING, RADIAL BALL (6000)

96100-60000-00

$7.75
