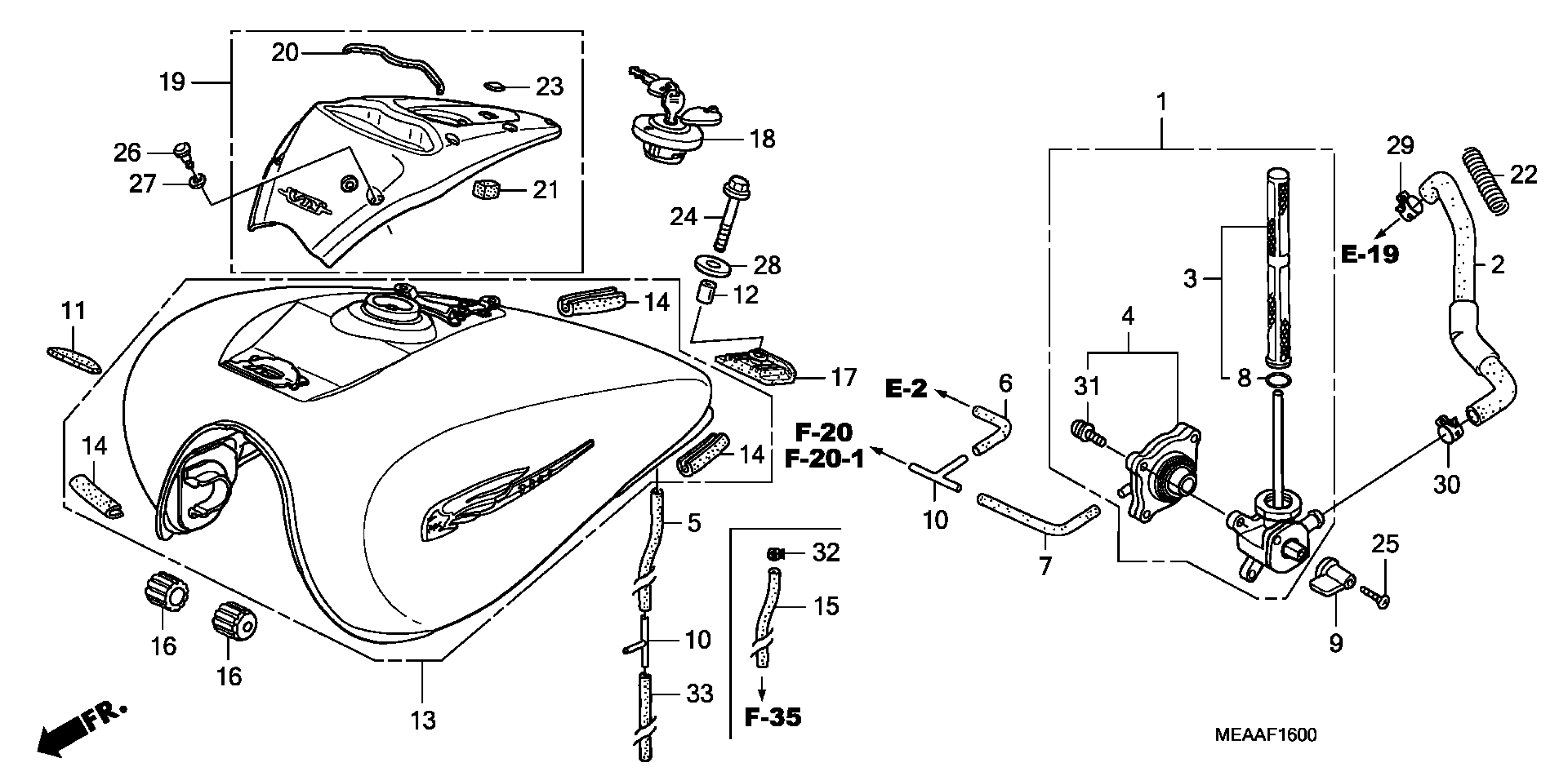

Honda VTX1300RA (09) VTX, USA, VIN# 1HFSC526-9A600001 FUEL TANK Diagram

PETCOCK ASSY.

16950-MEM-674

$177.02

TUBE, FUEL

16951-MEA-A50

$15.12

SCREEN SET, FUEL STRAINER

16952-MAZ-003

$21.40

COVER SET, PETCOCK

16953-KEA-023

$42.44

TUBE (3.5X300)

16956-MEA-670

$2.62

TUBE A, VACUUM

16956-MEM-670

Unavailable

TUBE B, VACUUM

16957-MEM-670

$2.66

O-RING (14.2X1.3)

16958-KM9-005

$3.71

LEVER, PETCOCK

16963-MY5-610

$12.30

JOINT, VACUUM TUBE (A)

17201-MG9-000

$14.63

RUBBER, FR. FUEL TANK

17511-KGB-610

$4.16

COLLAR, FUEL TANK MOUNTING

17515-MAH-000

$2.82

TANK SET, FUEL *NHA27M* (WL) (BILLET SILVER METALLIC)

17520-MEA-A50ZF

Unavailable

TANK SET, FUEL *NHA73M* (WL) (NEBULOUS BLACK METALLIC)

17520-MEA-A50ZG

$1,560.97

TANK SET, FUEL *PB356M* (WL) (NOVA BLUE METALLIC)

17520-MEA-A50ZH

$1,560.88

TRIM, FUEL TANK

17523-MEA-670

$2.80

CUSHION, FR. FUEL TANK

17611-MCH-000

$27.21

CUSHION, RR. FUEL TANK

17613-MEM-670

$25.31

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$65.11

CAP, FUEL FILLER This part replaces 17620-KR3-752.

17620-KR3-753

$65.11

CAP, FUEL FILLER

17620-KR3-753

$65.11

COVER SET, FR. TOP (TYPE1) (WL)

17620-MEA-670ZA

$82.56

SEAL, FR. TOP COVER

17622-MEA-670

$5.47

CUSHION, FR. TOP COVER

17624-MEA-670

$2.31

WIRE, GUARD

17672-MY1-000

$6.62

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.46

BOLT, FLANGE (8X39)

90021-MEA-670

$1.13

SCREW, OVAL (5X12)

90111-MZ5-000

$3.68

SCREW, SPECIAL (5X10.5)

90114-MCH-000

$2.69

WASHER, TOP COVER SETTING

90508-MCH-000

$2.10

WASHER (8.5X28)

90534-MV4-000

$2.66

CLAMP, TUBE (14.0)

90651-HM3-A71

$2.13

CLAMP, TUBE (13.5)

90651-MEA-A51

Unavailable

SCREW-WASHER (4X16)

93892-04016-08

$0.85

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$0.85

BULK HOSE, VACUUM (3.5X8000) (3.5X1000)

95005-35008-10M

$117.77
