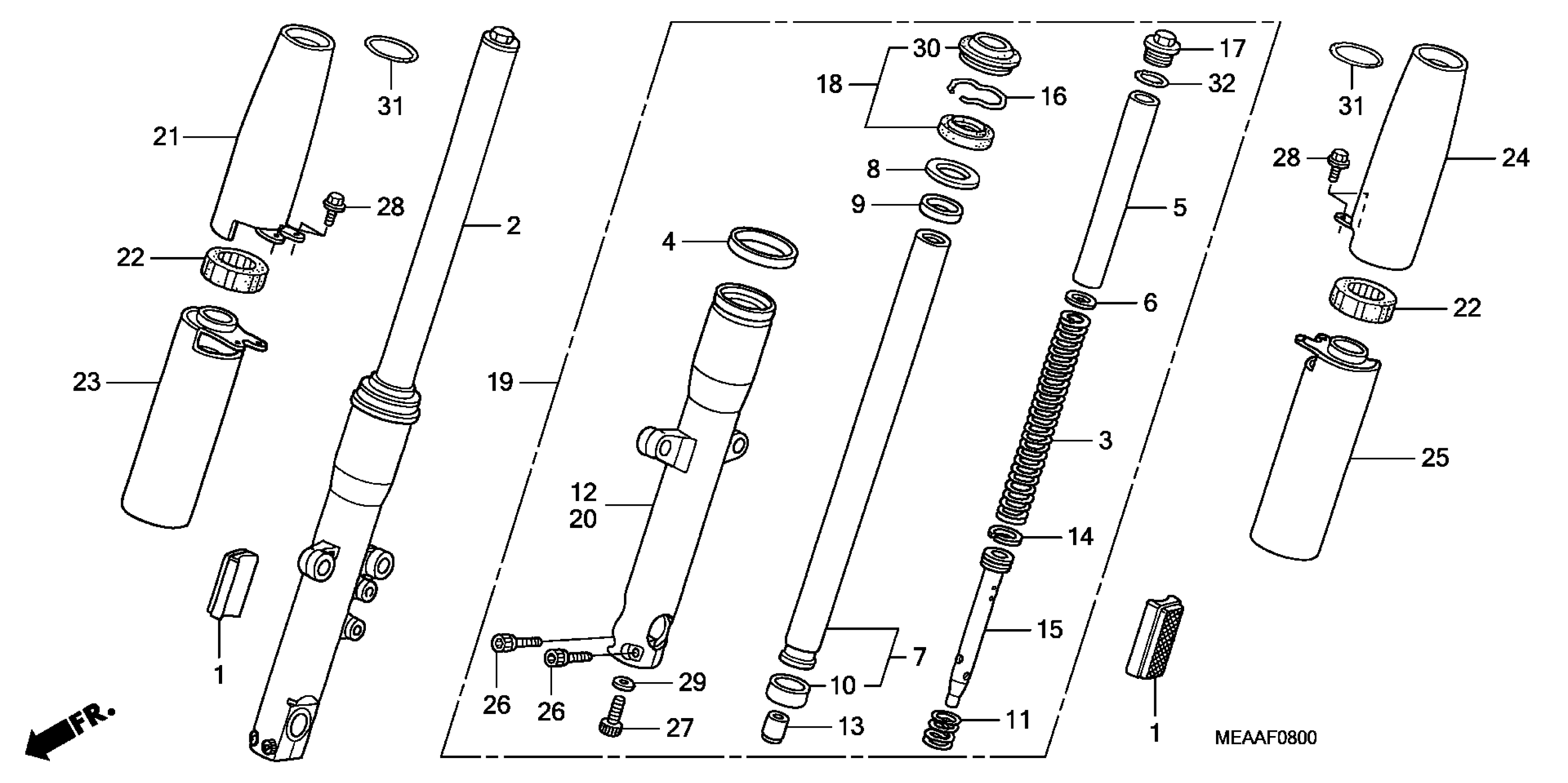

Honda VTX1300RA (09) VTX, USA, VIN# 1HFSC526-9A600001 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33740-MEA-671

$30.18

2

FORK ASSY., R. FR.

51400-MEA-671

Unavailable

3

SPRING, FR. FORK

51401-MEA-671

$51.26

4

GUIDE, CASE

51402-MEA-671

$6.95

5

COLLAR, SPRING (SHOWA)

51402-MN0-003

$21.08

6

PLATE, SPRING JOINT

51404-MB4-003

$4.94

7

PIPE, FR. FORK

51410-MEA-671

$134.54

8

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

9

BUSH, GUIDE (SHOWA)

51414-KCR-003

$14.02

10

BUSH, SLIDER (SHOWA)

51415-KCR-003

$12.27

11

SPRING, REBOUND

51416-MEA-671

$11.56

12

CASE, R. (LOWER)

51420-MEA-671

$241.20

13

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$24.82

14

RING, PISTON (SHOWA)

51437-MN5-003

$8.53

15

PIPE, SEAT

51440-MEA-671

Unavailable

16

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

17

BOLT, FR. FORK

51454-MM9-671

$38.35

18

SEAL SET, FR. FORK (SHOWA)

51490-MN8-305

$35.20

19

FORK ASSY., L. FR.

51500-MEA-671

$455.82

20

CASE, L. (LOWER)

51520-MEA-671

Unavailable

21

COVER, R. FR. FORK TOP

51610-MEA-670

Unavailable

22

MOUNT, FR. FORK COVER

51611-MBA-000

$9.75

23

COVER, R. FR. FORK (LOWER)

51620-MEA-670

$119.49

24

COVER, L. FR. FORK TOP

51660-MEA-670

Unavailable

25

COVER, L. FR. FORK (LOWER)

51670-MEA-670

$119.49

26

BOLT, SOCKET (8X35)

90109-MCR-D00

$2.84

27

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

28

BOLT, FLANGE (6X12)

90123-MBA-000

$2.92

29

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

30

DUST SEAL

91254-MM8-003

$17.88

31

O-RING (39.5X5)

91305-MC7-000

$3.31

32

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.76
