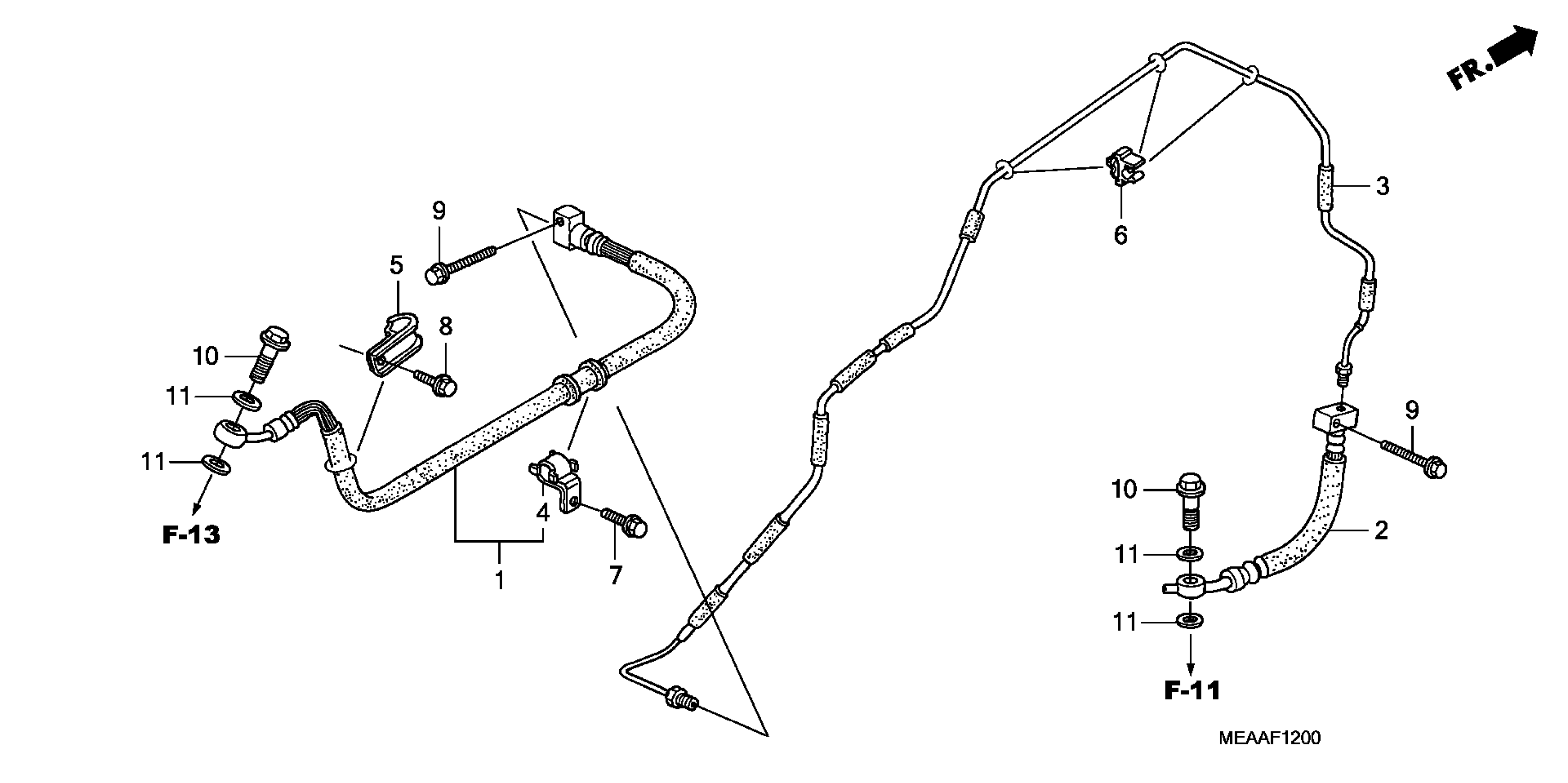

Honda VTX1300RA (09) VTX, USA, VIN# 1HFSC526-9A600001 BRAKE LINE Diagram

HOSE, RR. BRAKE

43310-MEA-A22

Unavailable

HOSE, RR. MASTER CYLINDER JOINT

43311-MEA-671

$5.03

PIPE, RR. BRAKE

43312-MEA-A10

Unavailable

CLAMP, BRAKE HOSE

43315-MEA-630

$6.30

CLAMP, RR. BRAKE HOSE This part replaces 43350-KBV-000.

43350-MBZ-G00

$5.62

CLAMP, RR. BRAKE HOSE

43350-MBZ-G00

$5.62

CLIP, BRAKE PIPE

46394-SN7-003

$11.05

BOLT, FLANGE (6X16) (SH)

90102-MEA-740

$1.49

BOLT, FLANGE (6X12)

90123-MCH-A00

$1.49

BOLT, FLANGE (6X25)

90124-MCH-A00

$1.49

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99
