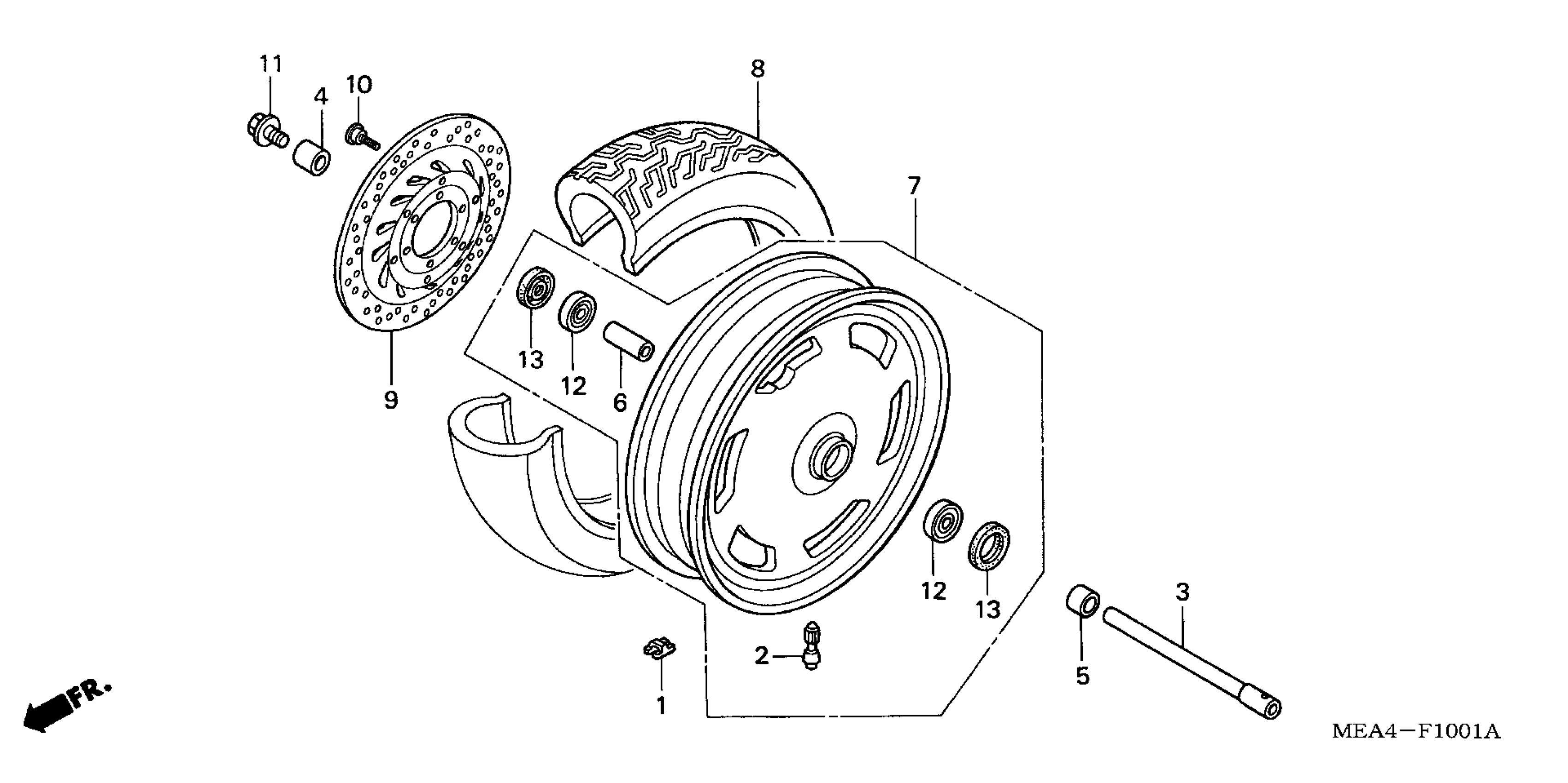

Honda VTX1300RA (05) MOTORCYCLE, USA, VIN# 1HFSC523-5A200001 TO 1HFSC523-5A299999 FRONT WHEEL (VTX1300R) Diagram

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.61

WEIGHT, BALANCE (20G)

42705-MER-D00

$17.93

WEIGHT, BALANCE (30G)

42706-MER-D00

$17.67

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

AXLE, FR. WHEEL

44301-MEA-670

$69.05

COLLAR, R. FR. WHEEL SIDE

44311-MEA-670

$20.77

COLLAR, L. FR. WHEEL SIDE

44312-MEA-670

$17.84

COLLAR, FR. AXLE DISTANCE (27X119)

44620-MZ0-010

$15.66

WHEEL SUB-ASSY., FR.

44650-MEA-910

Unavailable

TIRE, FR. (140/80-17) (M/C 69H) (DUNLOP)

44711-MEA-911

$166.17

DISK, R. FR. BRAKE

45251-MEA-671

$228.84

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

BOLT, FR. AXLE

90105-MBT-610

$5.76

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$32.14

DUST SEAL (30X52X7)

91253-442-003

$13.96
