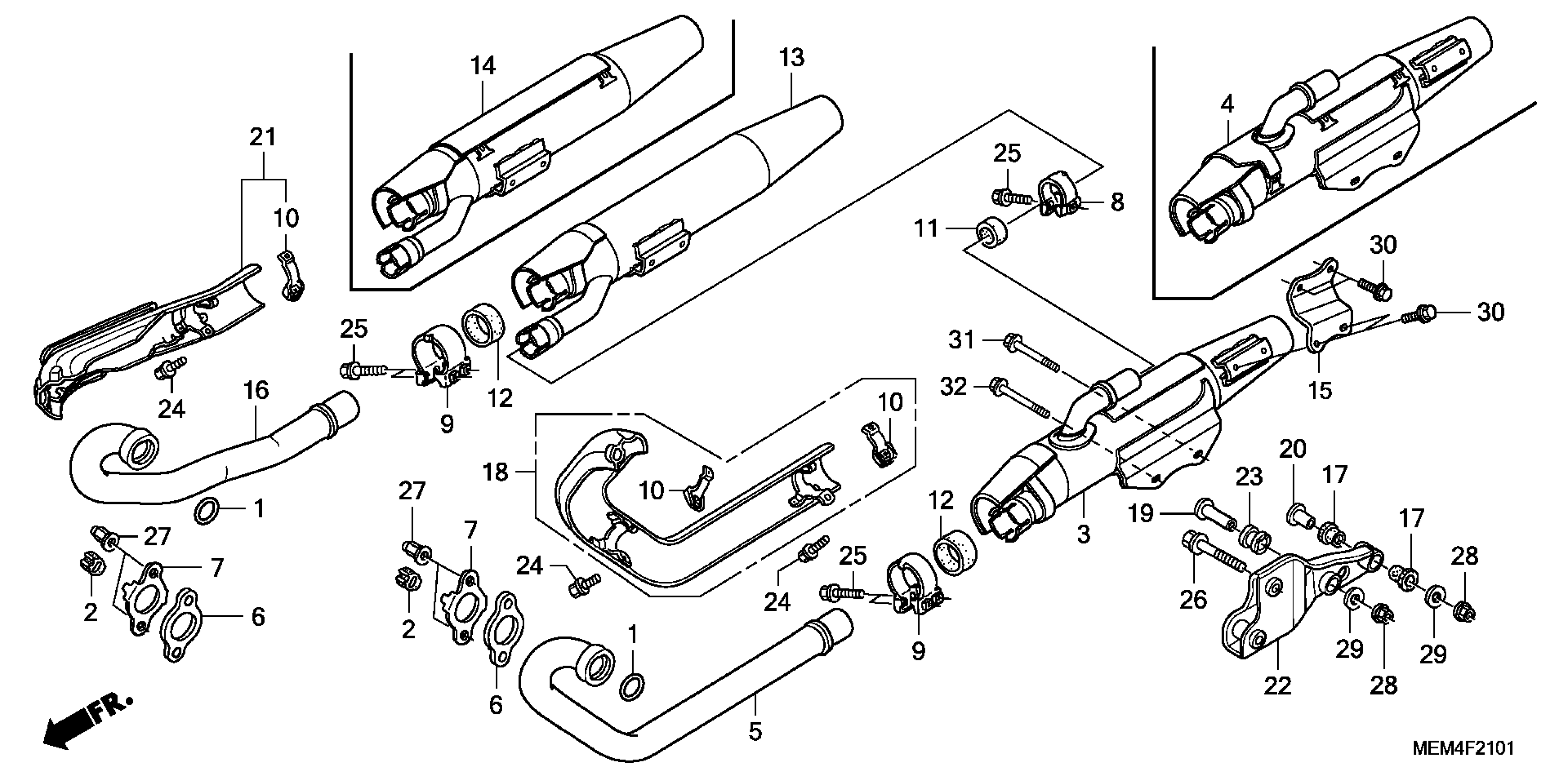

Honda VTX1300CAC (09) VTX, USA, VIN# 1HFSC551-9A500001 EXHAUST MUFFLER ('08-) Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MR5-801

$12.82

2

RUBBER, PROTECTOR

18293-MN0-000

$2.13

4

MUFFLER, FR.

18310-MEA-L51

$1,320.49

5

PIPE, FR. EX.

18320-MEA-670

Unavailable

6

JOINT, EX. PIPE

18325-MAH-000

$19.97

7

HOLDER, EX. PIPE COVER

18326-MEA-670

Unavailable

8

BAND, L. EX. PIPE

18374-ML4-003

$16.36

9

BAND, MUFFLER

18376-KG0-003

$18.83

10

BAND, RR. EX. PIPE COVER

18377-MAH-000

$13.51

11

GASKET, MUFFLER

18391-ML8-000

$9.49

12

GASKET, MUFFLER

18392-MK4-000

$13.66

14

MUFFLER, RR.

18410-MEA-L51

$1,320.49

15

STAY, MUFFLER

18415-MEA-A50

$14.70

16

PIPE, RR. EX.

18420-MEA-670

$107.46

17

RUBBER, MUFFLER MOUNTING

18421-KAF-000

$3.13

18

COVER, FR. EX. PIPE

18421-MEM-670

Unavailable

19

COLLAR, MUFFLER MOUNTING

18422-KM9-000

$7.18

20

COLLAR, MUFFLER MOUNTING

18422-MAL-600

$5.92

21

COVER, RR. EX. PIPE

18422-MEA-670

Unavailable

22

BRACKET, MUFFLER

18455-MEM-670

Unavailable

23

RUBBER, MUFFLER MOUNTING

50608-KK6-000

$7.79

24

BOLT, FLANGE SOCKET (6X16)

90071-MG8-000

$2.66

25

BOLT, FLANGE (8X35)

90103-KCM-620

$1.57

26

BOLT, FLANGE (10X51)

90106-ML0-000

$5.70

27

NUT, CAP (8MM)

90304-ME1-670

$5.94

28

NUT, FLANGE (8MM)

94050-08070

$1.49

29

WASHER, PLAIN (8MM)

94103-08700

$1.49

30

BOLT, FLANGE (8X16)

90166-S87-A00

$1.49

31

BOLT, FLANGE (8X50)

95701-08050-07

$1.49

32

BOLT, FLANGE (8X55)

95701-08055-07

$1.85
