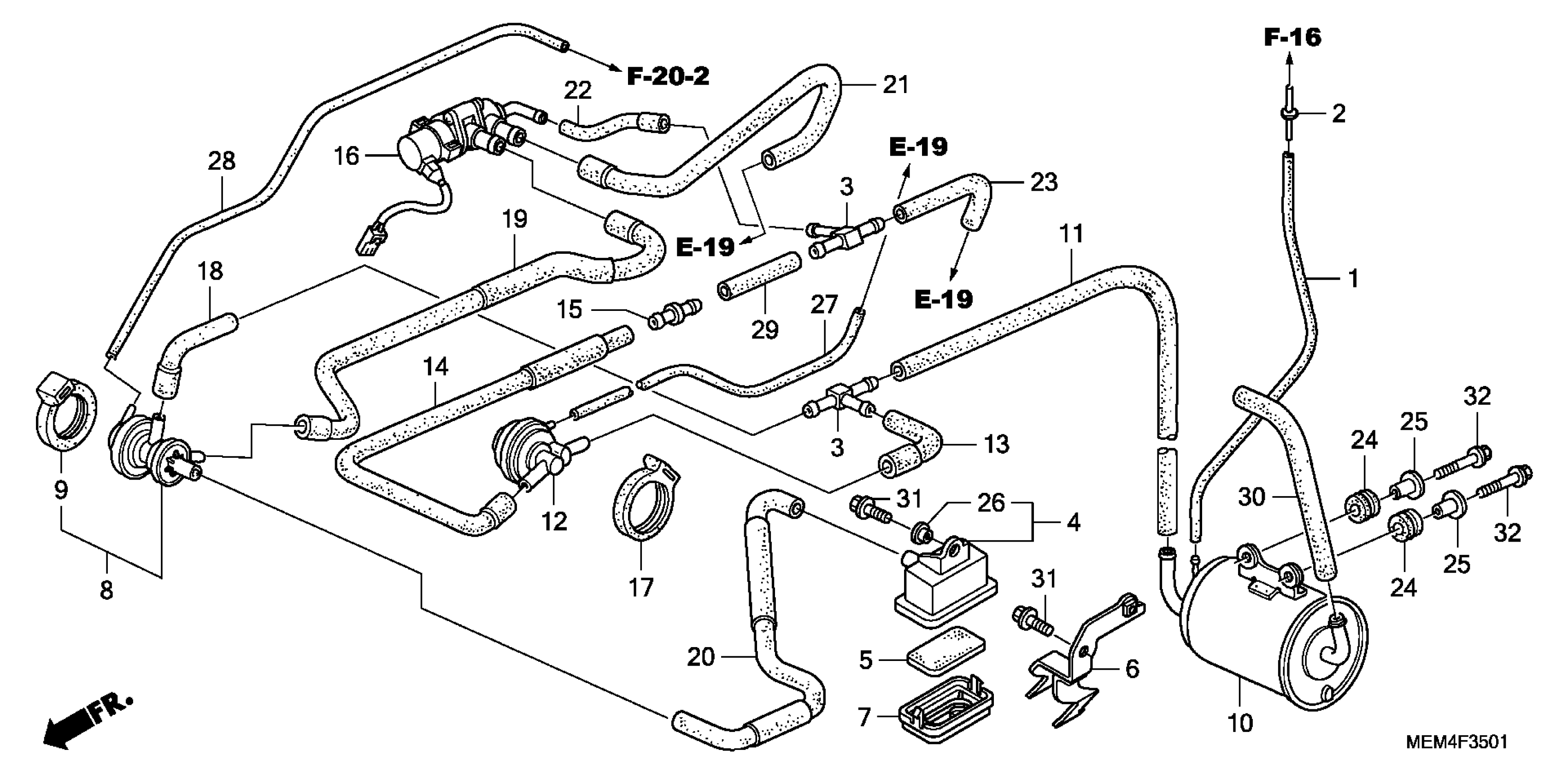

Honda VTX1300CAC (09) VTX, USA, VIN# 1HFSC551-9A500001 EVAP CANISTER ('08-,AC) Diagram

#

Description
Price

1

TUBE (4.5X470)

16957-MEA-L50

$11.23

2

JOINT, FUEL TUBE

16958-GJ6-000

$4.33

3

T-JOINT

17195-MN5-000

$8.56

4

CASE, SUB-AIR CLEANER

17251-MN5-000

Unavailable

5

FILTER, SUB-AIR CLEANER

17254-KAZ-000

$1.94

6

STAY, SUB-AIR CLEANER

17254-MEA-L50

$13.23

7

COVER, SUB-AIR CLEANER

17256-KBH-000

$11.45

8

VALVE ASSY., AIR VENT CONTROL

17300-MEA-771

$219.97

9

RUBBER, MOUNTING

17305-MJ4-771

Unavailable

10

CANISTER

17410-MCH-771

$281.81

11

TUBE, CANISTER

17412-MEA-770

$7.61

12

VALVE, PURGE CONTROL

17440-MEA-L51

$69.54

13

TUBE A, PURGE CONTROL VALVE

17441-MEA-770

$3.46

14

TUBE, PURGE CONTROL VALVE- (TWO-WAY)

17442-MEA-L50

$7.16

15

JOINT (TWO-WAY)

17445-MEA-L50

$15.20

16

VALVE ASSY., VENT SOLENOID

17450-MEA-L51

$97.10

17

RUBBER, PURGE CONTROL VALVE MOUNTING

17451-ME5-760

$11.75

18

TUBE A, AIR VENT CONTROL VALVE

17460-MEA-770

$3.30

19

TUBE, AIR VENT CONTROL VALVE- SOLENOID

17461-MEA-L50

$3.43

20

TUBE, AIR VENT CONTROL VALVE- SUB-AIR CLEANER

17462-MEA-L50

$7.19

21

TUBE, SOLENOID VALVE- CARBURETOR

17463-MEA-L50

$2.03

22

TUBE, SOLENOID VALVE-THREE WAY

17464-MEA-L50

$1.26

23

TUBE, CARBURETOR-THREE WAY

17465-MEA-L50

$2.32

24

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.22

25

COLLAR (6.2X12)

90501-425-000

$4.36

26

WASHER, CHAIN CASE SETTING

90522-028-000

$2.62

27

BULK HOSE, VACUUM (3.5X1000) (3.5X380)

95005-35001-20M

$8.69

28

BULK HOSE, VACUUM (3.5X1000) (3.5X400)

95005-35001-20M

$8.69

29

TUBE (6.5X40) (NA USE ALT:95005-65001-20M)

95005-65040-20

Unavailable

30

BULK HOSE, VACUUM (8X1000) (8X500)

95005-80001-20M

$21.47

31

BOLT, FLANGE (6X14)

95701-06014-08

$1.48

32

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
