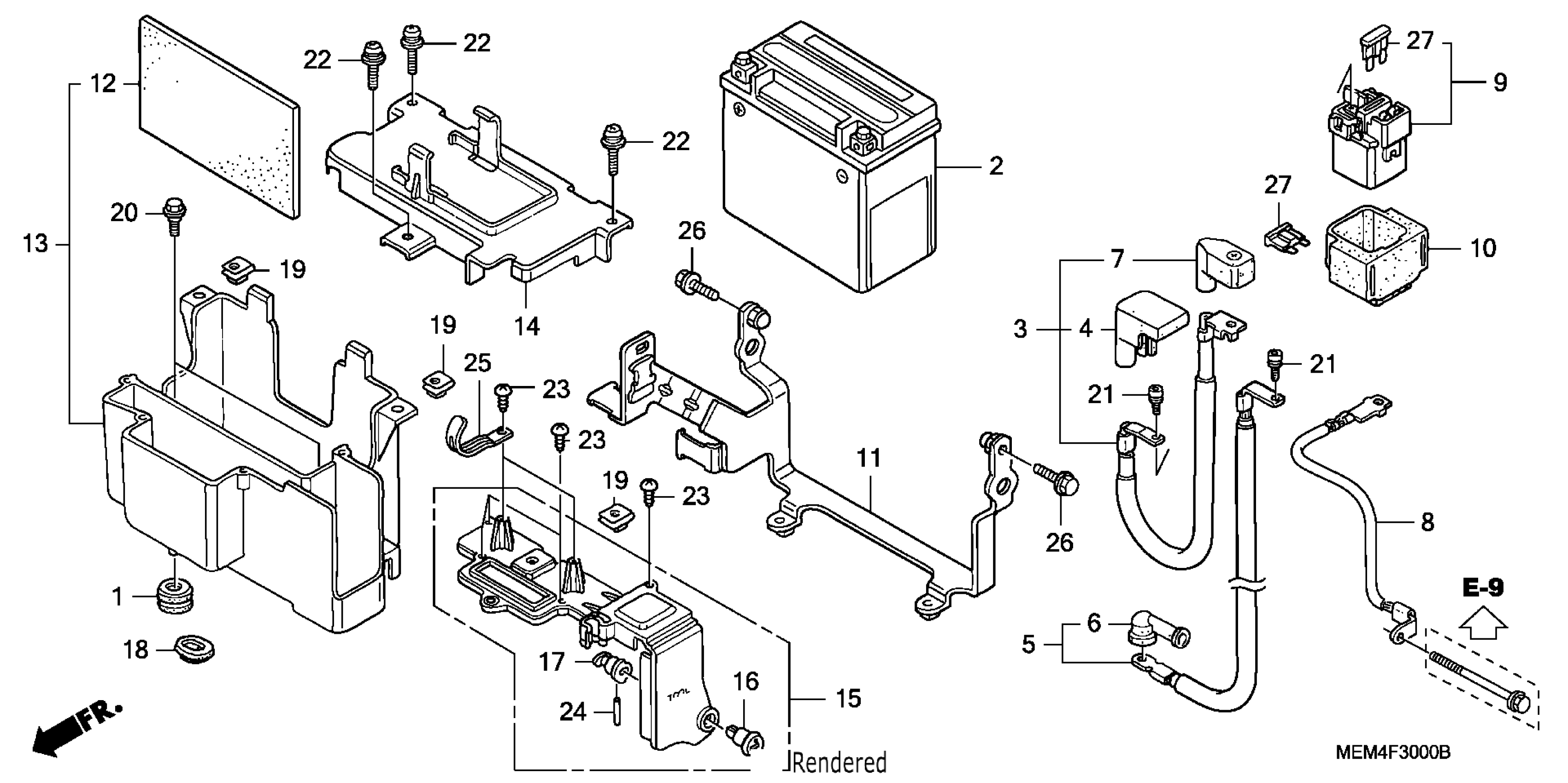

Honda VTX1300CAC (09) VTX, USA, VIN# 1HFSC551-9A500001 BATTERY Diagram

#

Description
Price

1

GROMMET, RADIATOR

19053-MB2-000

$4.12

2

BATTERY (YTX14-BS) (YUASA) (MSDS) This part replaces 31500-HC4-726.

31500-HC4-726AH

Unavailable

2

BATTERY (YTX14-BS) (YUASA)

31500-HC4-726AH

Unavailable

2

BATTERY (YTX14-BS) (YUASA) (MSDS) This part replaces 31500-HM5-631.

31500-HC4-726AH

Unavailable

3

CABLE, STARTER BATTERY

32401-MEA-670

Unavailable

4

COVER, STARTER MAGNETIC TERMINAL This part replaces 32406-MT4-000.

32406-MT4-010

$5.83

5

CABLE, STARTER MOTOR

32410-MEM-670

$17.01

6

COVER, STARTER MOTOR TERMINAL

32411-230-000

$5.96

6

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$5.96

7

COVER, BATTERY TERMINAL

32414-MCF-000

$5.90

8

CABLE, BATTERY GROUND

32601-MEA-670

Unavailable

9

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-MT4-000.

35850-MT4-003

$70.03

10

RUBBER, SHOCK

35856-KBG-007

$9.49

11

HOLDER, BATTERY BOX

50322-MEA-670

$14.12

12

CUSHION, BATTERY

50325-KM1-000

$4.26

13

BOX, BATTERY

50325-MEM-670

$14.52

14

COVER, BATTERY BOX

50326-MEA-L50

$3.75

15

COVER ASSY., TOOL

50330-MEA-740

Unavailable

16

BODY, KEY

83507-422-000

$3.52

17

STOPPER, KEY BODY

83508-KBG-000

$2.64

17

STOPPER, KEY BODY This part replaces 83508-438-000.

83508-KBG-000

$2.64

18

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.42

19

NUT, FENDER SETTING

84601-HA7-670

$5.15

20

BOLT, FLANGE (6MM)

90003-GAZ-000

Unavailable

21

BOLT, SOCKET (5X9)

90111-MR5-000

$2.38

22

SCREW-WASHER (6X20)

93893-06020-07

$1.12

23

SCREW, TAPPING (4X12)

93903-24380

Unavailable

24

PIN, SPRING (2X14)

94305-20141

$0.86

25

CLIP (4X90)

94591-49000

Unavailable

26

BOLT, FLANGE (6X18)

95701-06018-07

$1.48

27

FUSE, BLADE (30A)

98200-33000

$1.19
