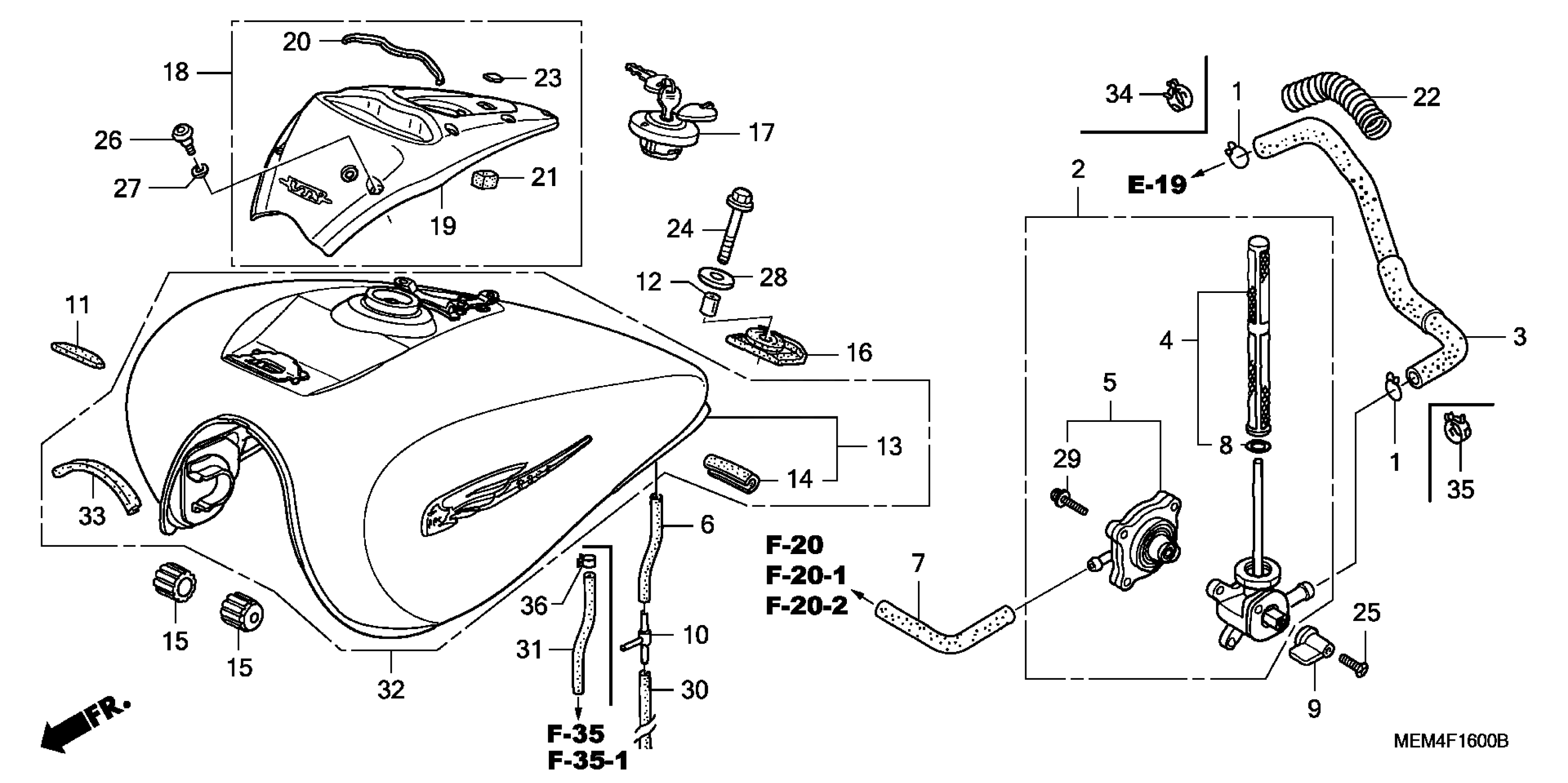

Honda VTX1300CAC (04) VTX, USA, VIN# 1HFSC551-4A000001 TO 1HFSC551-4A099999 FUEL TANK Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.72

2

PETCOCK ASSY. This part replaces 16950-MEM-672.

16950-MEM-674

$192.81

2

PETCOCK ASSY. This part replaces 16950-MEM-673.

16950-MEM-674

$192.81

2

PETCOCK ASSY.

16950-MEM-674

$192.81

3

TUBE, FUEL

16951-MEM-670

$17.59

4

SCREEN SET, FUEL STRAINER

16952-MAZ-003

$23.32

5

COVER SET, PETCOCK This part replaces 16953-KEA-000.

16953-KEA-023

$46.22

5

COVER SET, PETCOCK

16953-KEA-023

$46.22

7

TUBE B, VACUUM

16957-MEM-670

$2.89

8

O-RING

16958-KM9-005

$3.89

9

LEVER, PETCOCK

16963-MY5-610

$14.29

11

RUBBER, FR. FUEL TANK

17511-KGB-610

$4.35

12

COLLAR, FUEL TANK MOUNTING

17515-MAH-000

$2.95

13

TANK SET, FUEL *NH1* (WL) (BLACK) | Black NH1;

17520-MEM-670ZA

Unavailable

13

TANK SET, FUEL *NH451M* (WL) (ORION SILVER METALLIC) | Orion silver metallic NH451M;

17520-MEM-670ZB

Unavailable

13

TANK SET, FUEL *R274M* (WL) (DURANGO RED METALLIC) | Durango red metallic R274M;

17520-MEM-670ZC

Unavailable

13

TANK SET, FUEL *YR232P* (WL) (PEARL SUNBURST ORANGE) | Pearl sunburst orange YR232P;

17520-MEM-670ZD

Unavailable

14

TRIM, FUEL TANK

17523-MEM-670

$1.49

15

CUSHION, FR. FUEL TANK

17611-MCH-000

$30.52

16

CUSHION, RR. FUEL TANK

17613-MEM-670

$23.40

17

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$70.93

18

COVER SET, FR. TOP (TYPE1) (WL)

17620-MEA-670ZA

$92.33

19

COVER, FR. TOP

17621-MEA-670

$47.96

20

SEAL, FR. TOP COVER

17622-MEA-670

$5.90

21

CUSHION, FR. TOP COVER

17624-MEA-670

$2.49

22

WIRE, GUARD

17672-MY1-000

$6.93

23

EMBLEM, PRODUCT (MARUI) This part replaces 86150-KPG-900.

86150-KPG-901

$3.62

23

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

24

BOLT, FLANGE (8X39)

90021-MEA-670

$1.49

25

SCREW, OVAL (5X12)

90111-MZ5-000

$3.85

26

SCREW, SPECIAL (5X10.5)

90114-MCH-000

$2.92

27

WASHER, TOP COVER SETTING

90508-MCH-000

$2.28

28

WASHER (8.5X28)

90534-MV4-000

$2.89

29

SCREW-WASHER (4X16)

93892-04016-08

$1.49

29

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

31

TUBE (3.5X300)

16956-MEA-670

$2.92
