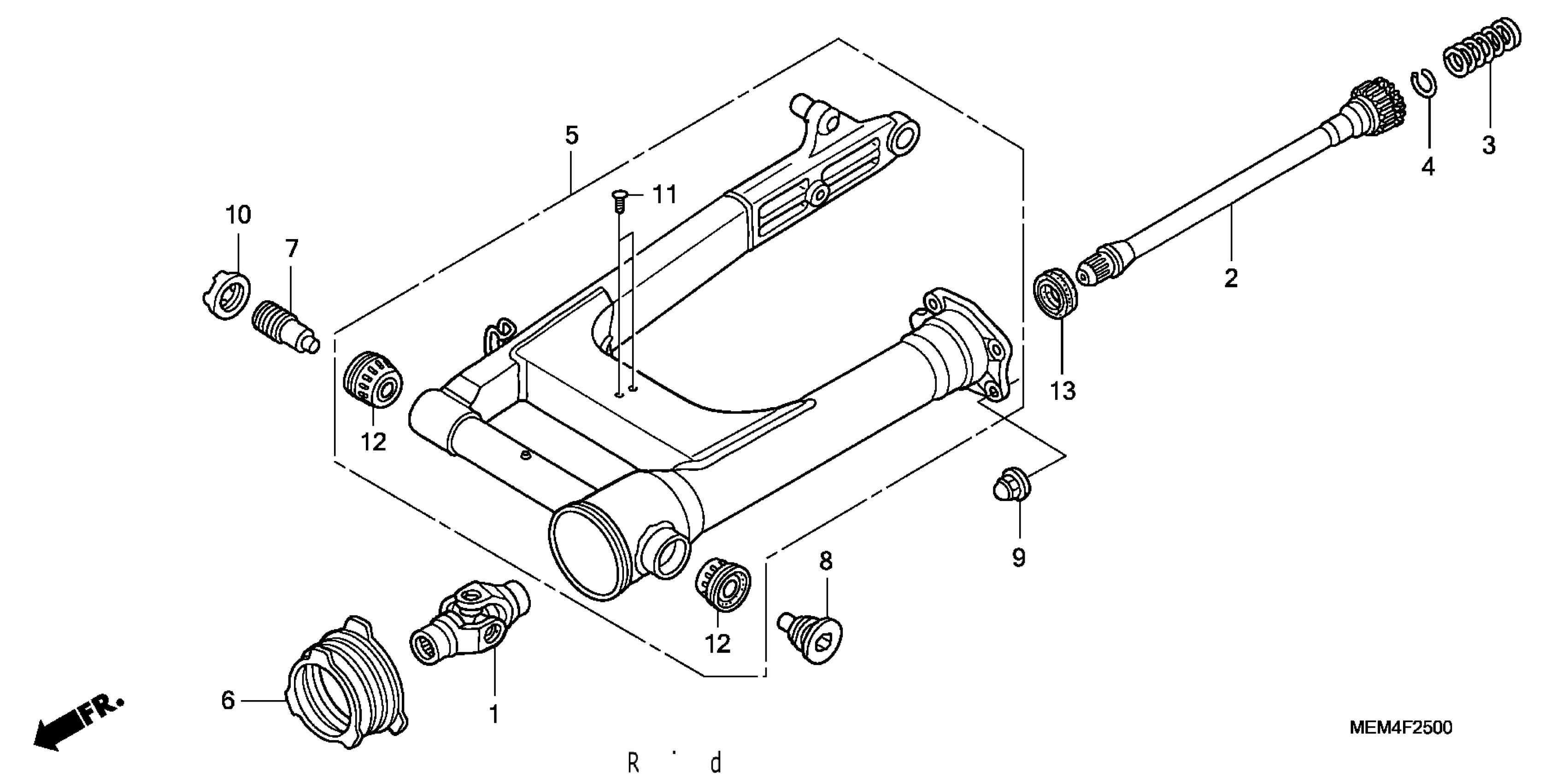

Honda VTX1300CA (09) VTX, USA, VIN# 1HFSC550-9A500001 SWINGARM Diagram

JOINT, YOKE This part replaces 40200-MCH-000.

40200-MFR-670

$194.51

SHAFT, PROPELLER

40201-MCH-000

Unavailable

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

RING, STOPPER

40221-MB0-000

$4.53

SWINGARM ASSY., RR.

52100-MEA-A20

$291.62

BOOT, JOINT

52104-MCH-000

$11.43

BOLT, R. SWINGARM PIVOT

90121-MAH-A00

$12.31

BOLT, R. SWINGARM PIVOT

90121-MAM-A60

$12.30

NUT, CAP (10MM)

90209-MM8-000

$6.00

NUT, CAP (10MM) This part replaces 90308-MS9-000.

90209-MM8-000

$6.00

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

CLIP

90651-MT3-000

$2.87

BEARING, TAPER ROLLER (17X40X13.25) (KOYO)

91066-HA7-672

$62.07

OIL SEAL (27X43X7)

91261-ME9-005

$12.13
