Description

Price

1

LOCK SET This part replaces 35010-MEA-740.

35010-MEA-741

Unavailable

2

SWITCH ASSY., COMBINATION

35100-MEA-741

$91.96

3

BASE, COMBINATION SWITCH

35102-MR1-000

$12.60

4

COLLAR, COMBINATION SWITCH

35103-MBA-000

$15.16

5

COVER, COMBINATION SWITCH

35110-MR1-000

$28.47

7

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-MR1-770

$8.97

7

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-MR1-770

$8.97

9

GROMMET, RR. COVER

83504-GE0-000

$2.80

10

COVER SET, R. SIDE NH1 (WL) (BLACK) | Black NH1;

83520-MEM-670ZA

Unavailable

10

COVER SET, R. SIDE Y181P (WL) (PEARL CHALLENGER BROWN) | Pearl challenger brown Y181P;

83520-MEM-670ZF

$350.72

10

COVER SET, R. SIDE B192M (WL) (NEWPORT BLUE METALLIC) | Newport blue metallic B192M;

83520-MEM-670ZS

$350.74

10

COVER SET, R. SIDE R325M (WL) (CALIENTE RED METALLIC) | Caliente red metallic R325M;

83520-MEM-670ZT

$350.71

11

COVER SET, L. SIDE NH1 (WL) (BLACK) | Black NH1;

83620-MEM-670ZA

$368.94

11

COVER SET, L. SIDE Y181P (WL) (PEARL CHALLENGER BROWN) | Pearl challenger brown Y181P;

83620-MEM-670ZF

$350.74

11

COVER SET, L. SIDE B192M (WL) (NEWPORT BLUE METALLIC) | Newport blue metallic B192M

83620-MEM-670ZS

$350.66

11

COVER SET, L. SIDE R325M (WL) (CALIENTE RED METALLIC) | Caliente red metallic R325M;

83620-MEM-670ZT

$366.44

12

BOLT, TORX (6X14)

90107-KCR-000

$3.38

13

SCREW, RR. COVER

90114-GB6-920

$1.46

14

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

15

STAY, IGNITION SWITCH

50177-MEA-740

$30.71

16

BAND, WIRE (165MM)

90651-KV6-003

$3.56

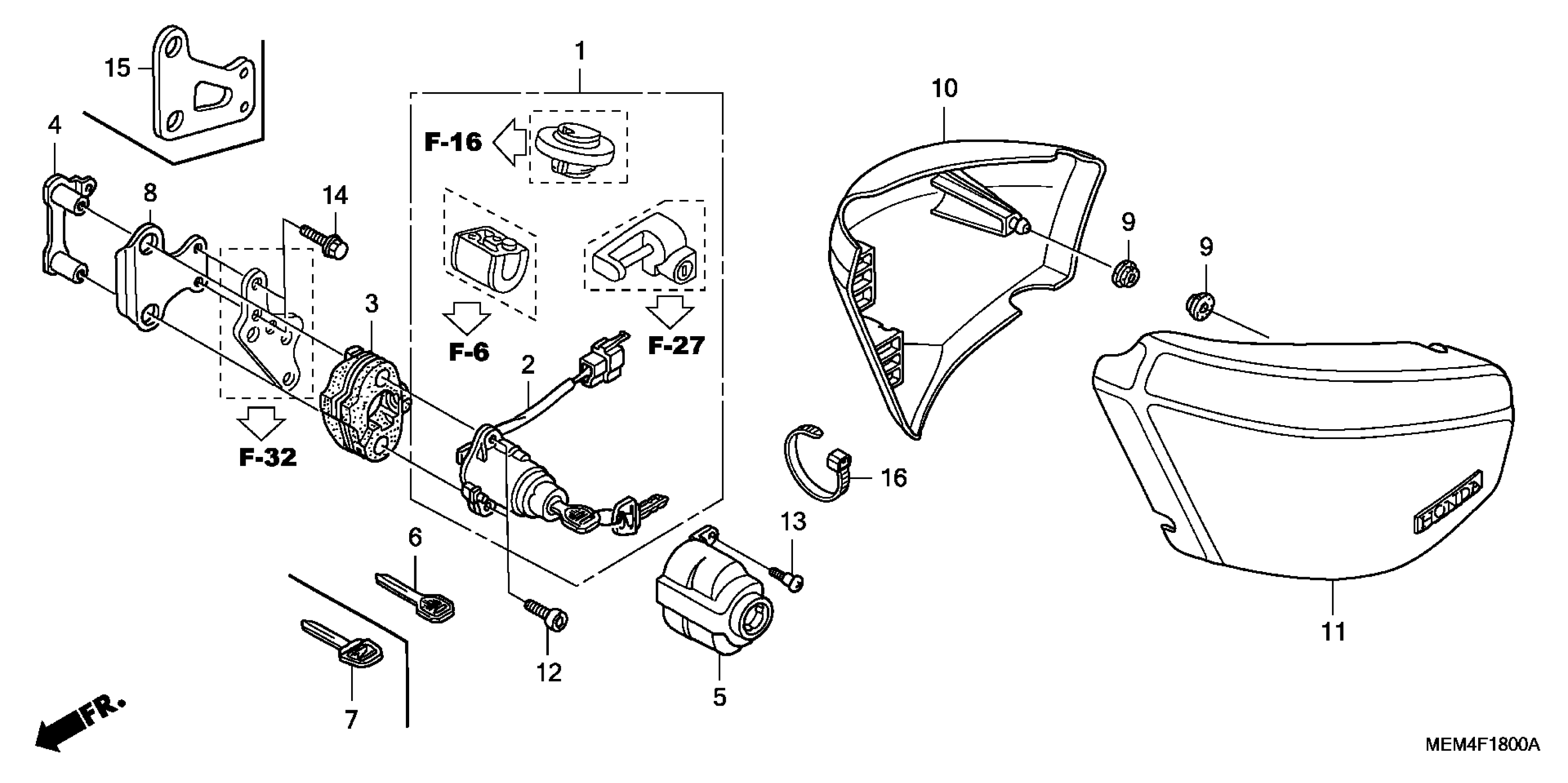

Honda VTX1300CA (09) VTX, USA, VIN# 1HFSC550-9A500001 SIDE COVER Diagram
