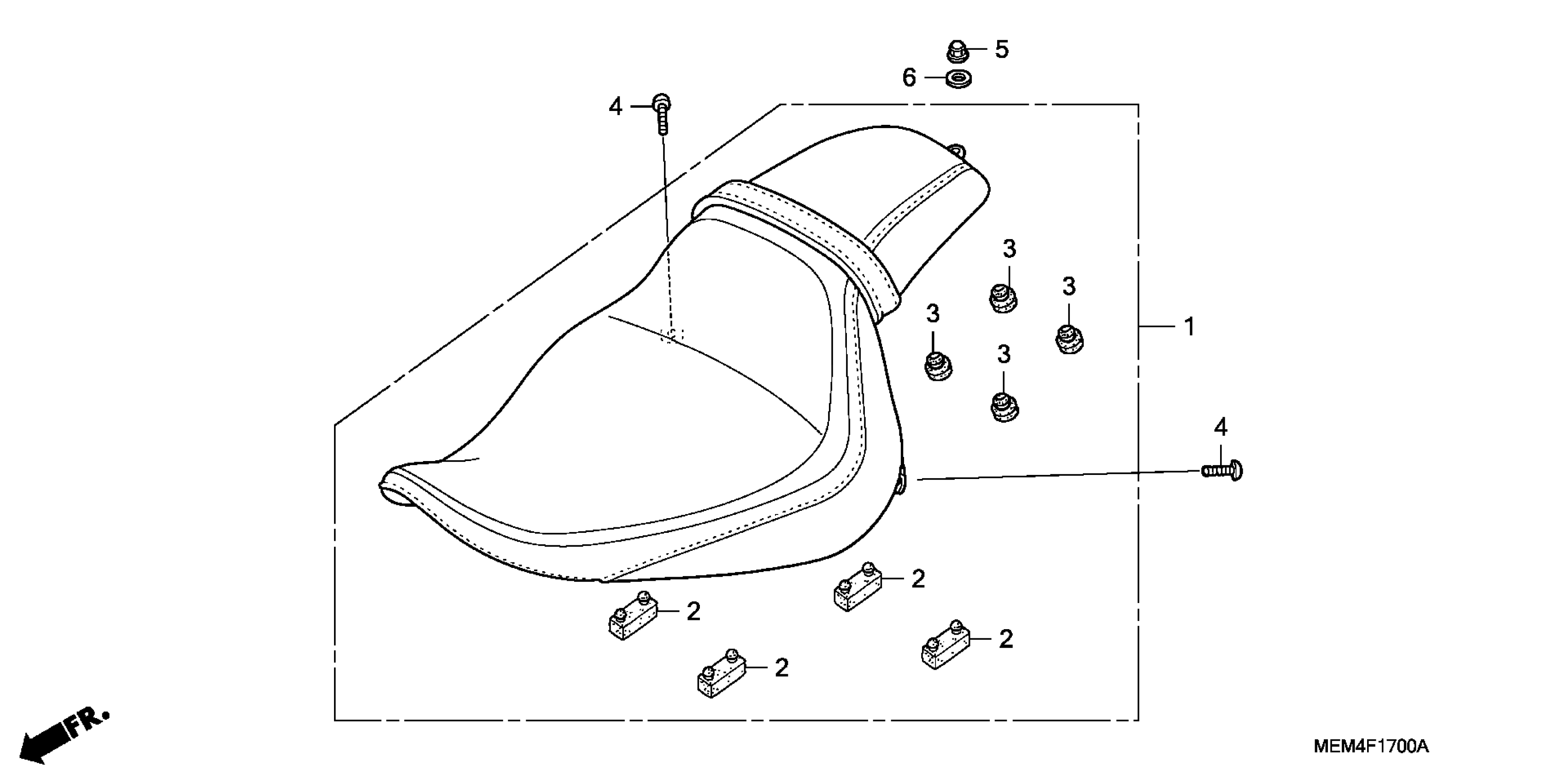

Honda VTX1300CA (09) VTX, USA, VIN# 1HFSC550-9A500001 SEAT Diagram

#

Description

Price

1

SEAT ASSY., DOUBLE

77200-MEM-670

Unavailable

2

RUBBER B, SEAT SETTING

77205-286-000

$5.04

3

RUBBER B, SEAT STOPPER

77215-GC2-000

$4.83

4

BOLT, SOCKET (8X22)

90128-MEM-630

$1.99

5

NUT, CAP (6MM)

90202-ZV0-000

$2.69

6

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

6

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

6

WASHER, PLAIN (6MM)

94101-06800

Unavailable
