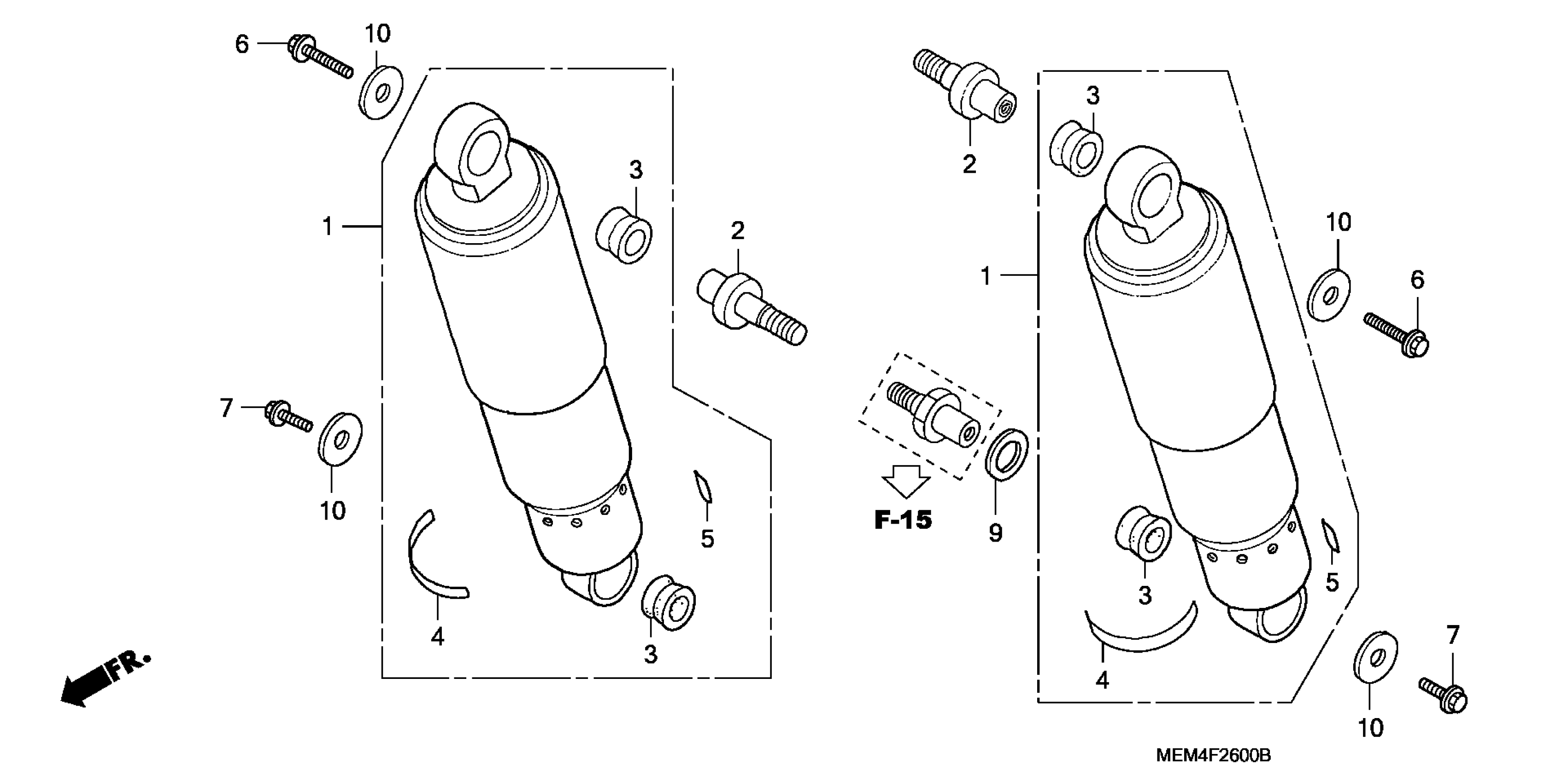

Honda VTX1300CA (09) VTX, USA, VIN# 1HFSC550-9A500001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

CUSHION ASSY., RR.

52400-MEM-671

$300.58

2

BOLT, RR. SHOCK ABSORBER

52452-MCH-000

$11.23

3

BUSH, RUBBER

52489-MW3-305

$5.91

4

LABEL A

52496-MEA-671

$2.77

5

LABEL B, RR. CUSHION

52497-KR3-003

Unavailable

6

BOLT, SPECIAL FLANGE (8X22)

90100-438-850

$4.33

7

BOLT, SPECIAL FLANGE (8X12)

90125-KR3-000

$3.62

9

WASHER, RR. CUSHION

90504-MCH-000

$3.26

10

WASHER (8.5X26)

90504-ME4-000

$3.03
