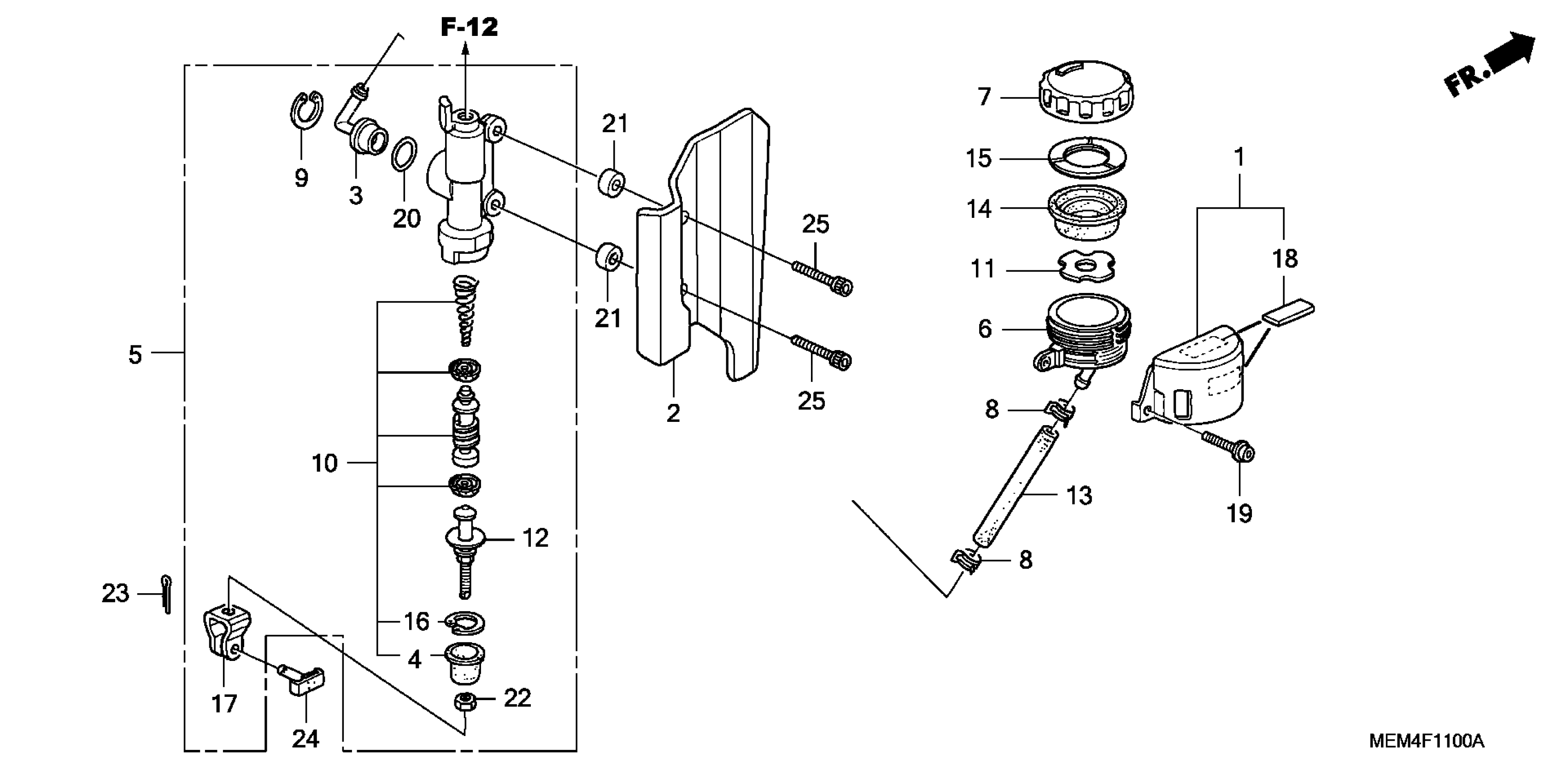

Honda VTX1300CA (09) VTX, USA, VIN# 1HFSC550-9A500001 REAR BRAKE MASTER CYLINDER Diagram

COVER, RR. BRAKE OIL CUP

21341-MEA-670

$19.75

COVER, STOP SWITCH

21342-MEM-670

$28.75

CONNECTOR, MASTER CYLINDER

43503-KS6-701

$10.26

BOOT

43504-MB2-006

$10.04

MASTER CYLINDER SUB-ASSY., RR.

43510-MEA-672

$51.43

CUP, OIL

43511-MR7-016

$32.46

CAP, OIL CUP

43513-MY1-006

$29.39

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.81

PISTON SET, MASTER CYLINDER

43520-MJ6-315

$46.73

FLOAT, RR. MASTER CYLINDER

43523-MAH-671

$4.31

ROD, PUSH

43530-KV3-701

$19.84

HOSE, MASTER CYLINDER OIL

45512-MCJ-006

$6.02

DIAPHRAGM

45520-300-000

$9.05

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

CIRCLIP

46182-MEL-D21

$1.93

JOINT, BRAKE ROD

46504-MAH-671

$14.30

CUSHION, NUMBER PLATE

84703-KC2-960

$1.49

BOLT, FLANGE SOCKET (6X20)

90097-MY6-880

$4.39

O-RING (14.8X2.4)

91212-422-006

$2.56

COLLAR (6.9X9)

91552-ZT1-000

$3.61

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49

PIN D, JOINT

95015-54000

$4.24

BOLT, SOCKET (6X40)

96600-06040-07

$1.79
