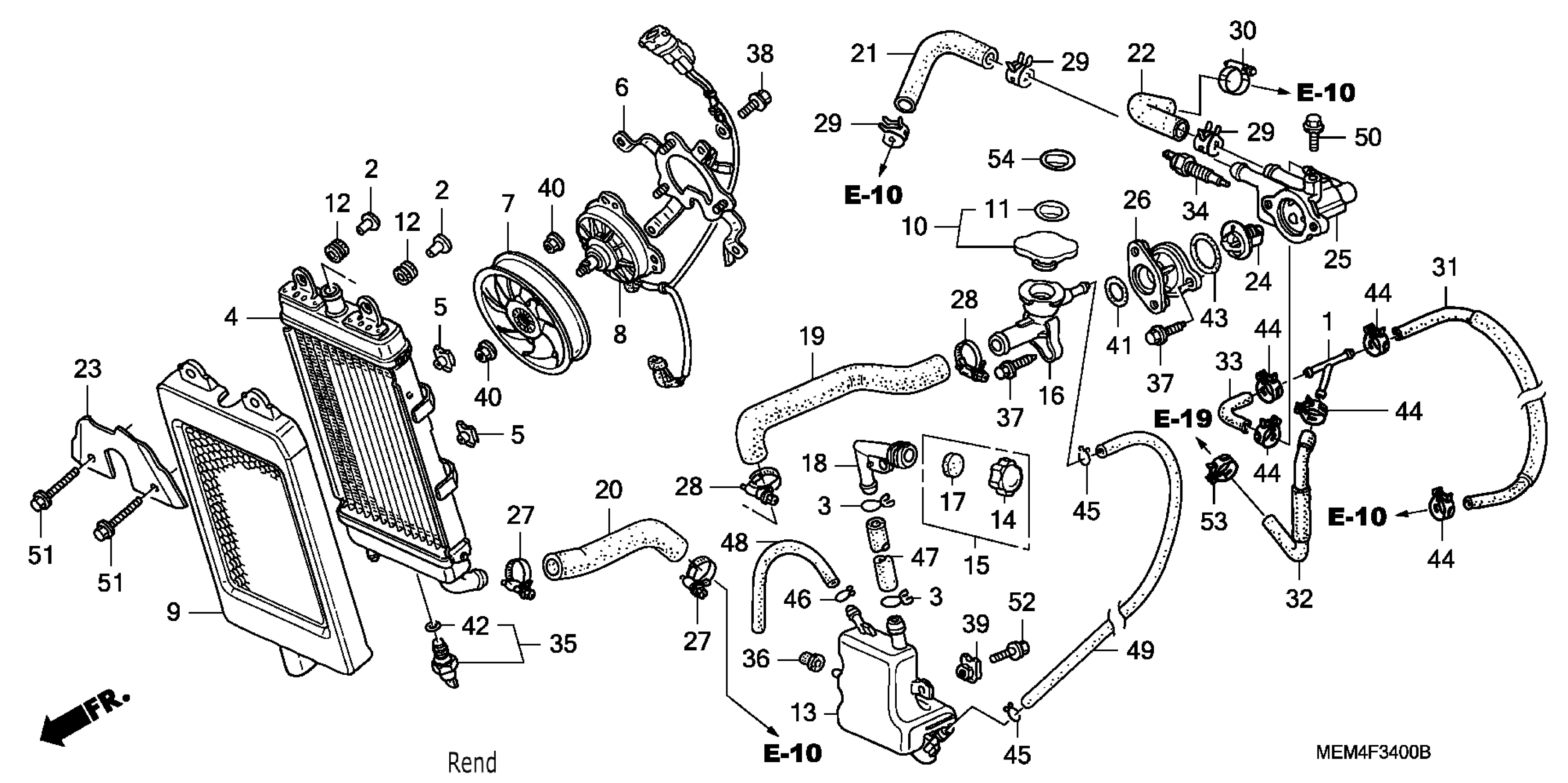

Honda VTX1300CA (09) VTX, USA, VIN# 1HFSC550-9A500001 RADIATOR Diagram

#

Description
Price

1

JOINT, FUEL TUBE

16959-MY1-000

$16.32

2

COLLAR, AIR CLEANER SETTING

17216-HA7-670

$5.87

3

CLIP A, BREATHER TUBE

17316-MN1-670

$2.25

4

RADIATOR

19010-MEA-671

$179.14

5

NUT, SETTING

19014-KEA-003

$2.95

6

SHROUD

19015-MEA-A21

$19.72

7

FAN, COOLING

19020-MCH-A11

$16.16

8

MOTOR ASSY., FAN

19030-MEA-A22

$98.76

9

GRILLE, RADIATOR

19032-MEA-670

$25.57

10

CAP, RADIATOR

19037-GEE-710

$27.80

11

LABEL, RADIATOR CAP

19046-PAA-A00

$3.25

12

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.16

13

TANK, RADIATOR RESERVE

19101-MEA-670

Unavailable

14

CAP, RESERVE TANK

19104-ME9-000

$14.16

15

CAP ASSY., RESERVE TANK

19105-MG8-000

$11.54

16

NECK ASSY., FILLER

19106-MCH-003

Unavailable

17

GASKET, RESERVE TANK

19107-MG8-000

$4.68

18

NECK, RESERVE TANK FILLER

19111-MR1-000

Unavailable

19

HOSE, RADIATOR (UPPER)

19116-MEA-670

$4.74

20

HOSE, RADIATOR (LOWER)

19117-MEA-670

$5.30

21

HOSE, FR. OUTLET WATER

19118-MEA-670

$3.12

22

HOSE, RR. OUTLET WATER

19119-MEA-670

$3.73

23

GUARD, RADIATOR

19124-MEA-670

$117.65

24

THERMOSTAT

19300-MCZ-003

$56.76

25

CASE, THERMOSTAT

19311-MEA-305

Unavailable

26

COVER, THERMOSTAT

19313-MCH-315

$25.94

27

CLAMP, RADIATOR HOSE

19509-MM5-003

$12.46

28

CLAMP, HOSE (30-37MM)

19516-GAG-003

$12.40

29

CLIP, WATER HOSE

19517-KM9-000

$7.65

30

CLAMP, HOSE (22-29MM)

19517-ML7-691

$10.68

31

HOSE A, WATER

19531-MEA-670

Unavailable

32

HOSE, WATER RETURN

19533-MEM-670

Unavailable

33

HOSE B, WATER

19534-MEA-670

Unavailable

34

SWITCH ASSY., THERMO

37760-MAV-003

$59.75

35

SWITCH ASSY., THERMO This part replaces 37760-MT2-003.

37760-MR1-003

$66.01

36

RUBBER, TURN SIGNAL MOUNTING

80126-MM5-000

Unavailable

37

BOLT, FLANGE (6X16) (CT200)

90029-888-000

$2.07

38

BOLT-WASHER (6X16)

90120-KCR-003

$4.19

39

NUT, CLIP (6MM)

90305-GK8-000

$2.21

40

NUT, SERRATE (5MM)

90315-MK3-003

$2.15

41

O-RING (26.9X2.4) (NOK)

91302-PF0-003

$2.80

41

O-RING (26.9X2.4) (NOK) This part replaces 91304-KG8-000.

91302-PF0-003

$2.80

41

O-RING (26.9X2.4) (NOK) This part replaces 91304-KG8-003.

91302-PF0-003

$2.80

42

O-RING (13.5X1.4)

91307-PH7-660

$2.80

42

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.80

43

O-RING (47.5X2)

91311-KE8-000

$2.21

44

CLAMP, TUBE (D12)

91405-PD1-004

$8.27

45

CLIP, TUBE (B12)

95002-02120

$1.79

46

CLIP, TUBE (C11)

95002-70000

$1.51

47

BULK HOSE, VACUUM (14X1000) (14X250)

95005-14001-30M

Unavailable

48

BULK HOSE, VACUUM (7X3000) (7X240)

95005-70003-30M

$29.04

49

BULK HOSE (7.3X1000)

95005-75001-20M

$26.09

50

BOLT, FLANGE (6X12)

95701-06012-08

$1.50

51

BOLT, FLANGE (6X30)

95701-06030-07

$1.74

52

BOLT, FLANGE (6X16)

95701-06016-08

$1.34

52

BOLT, FLANGE (6X16) This part replaces 95801-06016-08.

95701-06016-08

$1.34

53

CLAMP, TUBE (D10.3)

90601-MEA-670

$4.21
